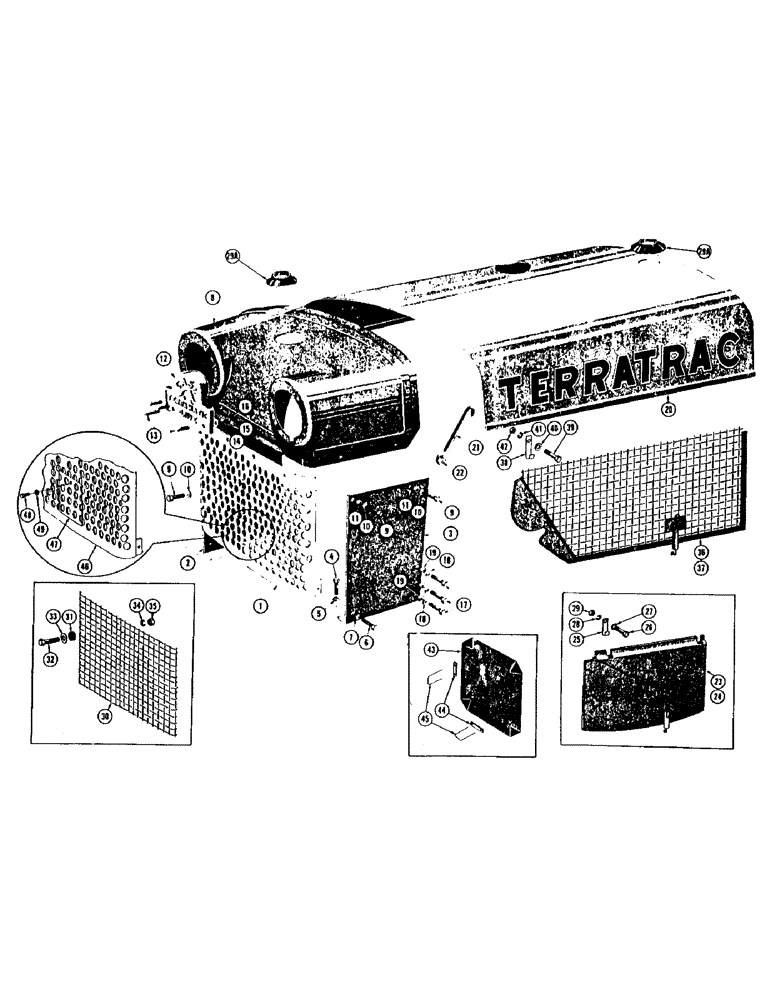

Запчасти Case 1000 (178) - HOOD, SHROUD, AND BUMPER (05) - UPPERSTRUCTURE CHASSIS

1

70938

X

GUARD ASS'Y - radiator (For service order ref. #46, #47, #48, & #49)

1шт.

2

70934

PANEL ASS'Y - R.H. side

1шт.

3

70935

PANEL ASS'Y - L.H. side

1шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (70934 & 70935 mt'g.)

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (70934 & 70935 to 70938)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

70110

SHROUD - front

1шт.

9

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (70110 mt'g.)

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(70110 mt'g.) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

4шт.

12

71494

CASTING - emblem

1шт.

13

73-416

BOLT (MACHINE),Flat, 1/4"

FHMS - 1/4 - 20 NC x 1 (71494 mt'g.)

2шт.

73-420

FHMS - 2/4 - 20 NC X 1-1/4 (71494 MT'G.)

2шт.

14

195-18

WASHER,1/4"

- plain

4шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (70934 & 70935 mt'g.)

6шт.

18

92-8

LOCK WASHER,1/2"

6шт.

19

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

6шт.

20

71271

HOOD - engine

1шт.

21

R17778

BOLT (SPREADER)

BOLT - hood latch (Order with ref. #22)

4шт.

22

R17777

NUT

- cone (Order with ref. #21)

4шт.

23

R12432

HOOD - front side shield, L.H. (Optional)

1шт.

24

R12433

HOOD - front side shield, R.H. (Optional)

1шт.

25

R12427

CATCH

HOOK - hood

4шт.

26

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427, R12432 & R12432 mt'g.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

27

195-25

WASHER,3/8"

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

4шт.

29a

R14780

GROMMET

- rubber

2шт.

R2874

GUARD INST. - brush

1шт.

30

R12493

GUARD - wire, optional equipment

1шт.

31

R12492

SPACER, optional equipment

6шт.

32

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4 (R12493 mt'g.), optional equipment

6шт.

33

95-8

WASHER,1/2"

- plain, optional equipment 1/2"

12шт.

34

92-8

LOCK WASHER,1/2"

optional equipment 1/2"

6шт.

35

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF), optional equipment

6шт.

R2829

SCREEN INSTALLATION - brush, optional equipment

1шт.

36

R14633

SCREEN ASS'Y - brush, L.H., optional equipment

1шт.

37

R14634

SCREEN ASS'Y - brush, R.H., optional equipment

1шт.

38

R12427

CATCH

HOOK - (R14633 & R14634 mt'g.), optional equipment

4шт.

39

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427 mt'g.), optional equipment Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

40

195-25

WASHER,3/8"

Optional equipment 3/8"

4шт.

41

92-6

LOCK WASHER,3/8"

optional equipment 3/8"

4шт.

42

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24NF), optional equipment

4шт.

R3556

SCREEN INSTALLATION - anti sandblast (For pusher fans only), optional equipment

1шт.

43

R22137

SCREEN - radiator guard, optional equipment

1шт.

44

R14077

STRAP

- radiator guard, optional equipment

8шт.

45

R14078

ELECTRICAL WIRE

WIRE, optional equipment

4шт.

46

R18644

GUARD ASS'Y - radiator, optional equipment

1шт.

47

R19250

DOOR - radiator, optional equipment

1шт.

48

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R19250 mt'g.), optional equipment Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

optional equipment 3/8"

1шт.
