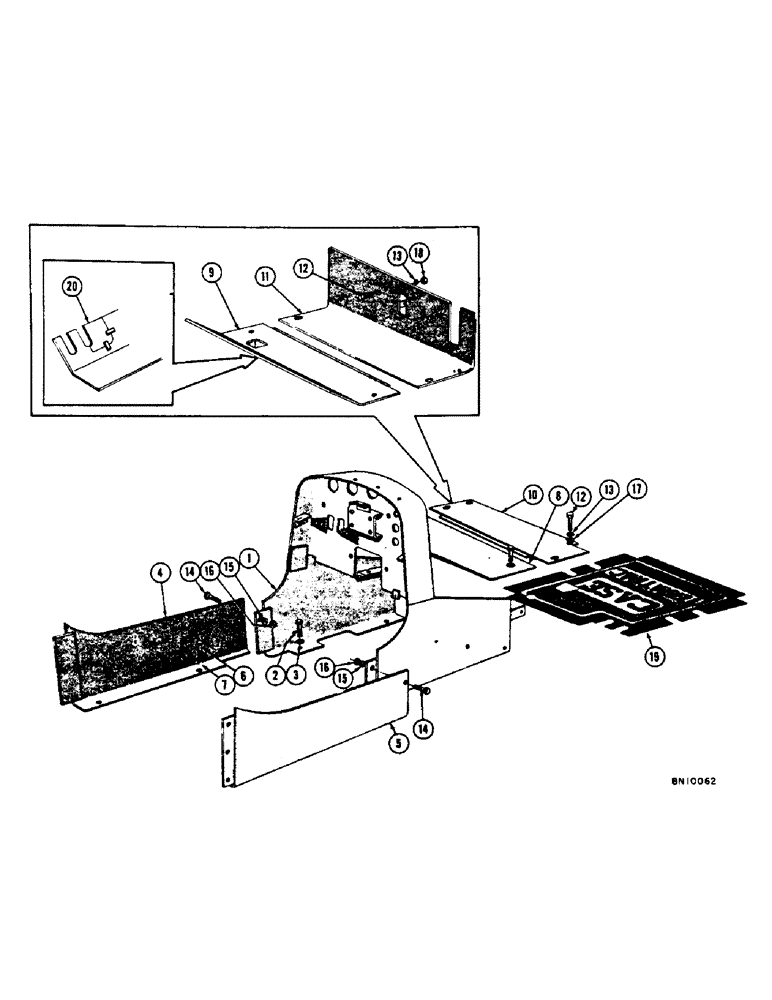

Запчасти Case 1000 (170) - SIDE PLATES, COWL, AND DASH (05) - UPPERSTRUCTURE CHASSIS

1

R23272

COWL ASS'Y

1шт.

2

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (R23272 mounting)

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

70936

PANEL ASS'Y - R.H. engine side

1шт.

5

70937

PANEL ASS'Y - L.H. engine side

1шт.

6

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (70936 & 70937 mt'g.)

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

R23265

PLATE ASS'Y - floor front (Type I)

1шт.

9

R23264

PLATE ASS'Y - floor front (Type II)

1шт.

10

72753

CYLINDER HEAD

PLATE ASS'Y - floor rear (Type I)

1шт.

11

R23261

PLATE ASS'Y - floor rear (Type II)

1шт.

12

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (Floor plate mt'g.)

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (Mt'g. side plates to cowl)

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4 (Mt'g. side plates to cowl)

1шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

2шт.

17

195-25

WASHER,3/8"

(Floor plate mt'g.) 3/8"

4шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

1шт.

19

71670

MAT - floor

1шт.

20

R16933

PLATE ASS'Y - cover

1шт.
