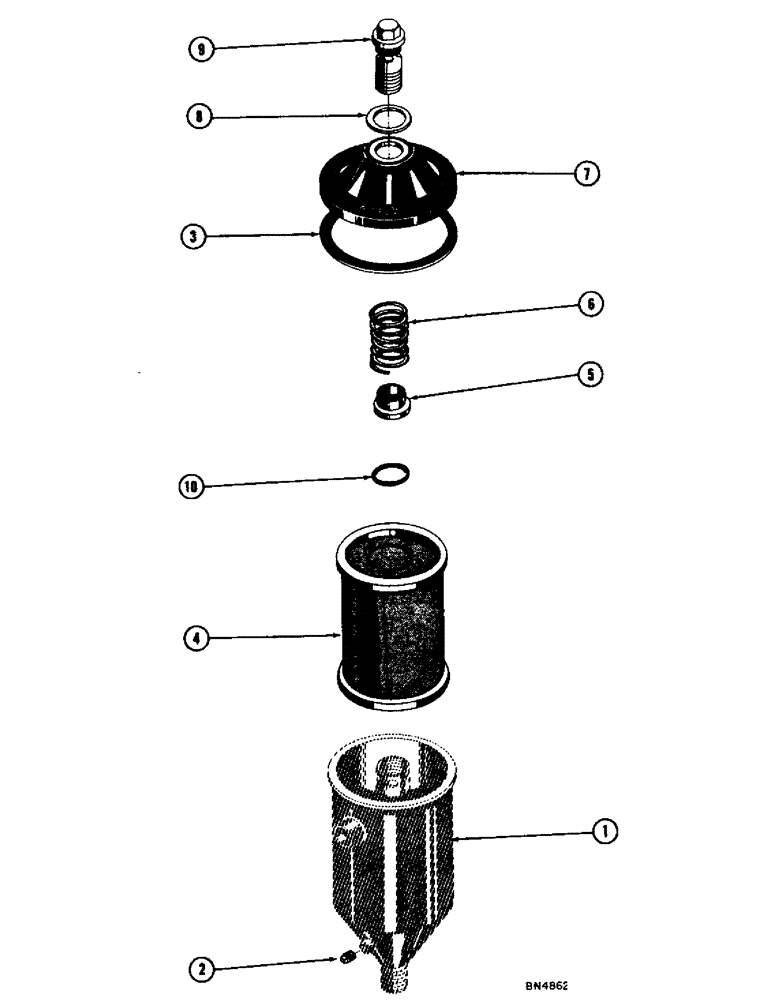

Запчасти Case 1000 (138) - HYDRAULIC OIL FILTER (05) - UPPERSTRUCTURE CHASSIS

72029

FILTER

ASS'Y - transmission oil

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASS'Y - oil filter

1шт.

2

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, extended square head, 1/2 NPT

1шт.

3

34458

- cover

1шт.

4

R11909

FILTER

SCREEN - filter

1шт.

5

35632

CUP - sealing

1шт.

6

R17536

SPRING

- oil filter

1шт.

7

35634

COVER & RETAINER ASS'Y - filter

1шт.

8

35635

GASKET - cover bolt

1шт.

9

R17538

BOLT ASS'Y - retainer (Relief valve)

1шт.

10

R17537

GASKET - "O" ring

1шт.
