Запчасти Case 1000 (132) - BASIC TRACTOR HYDRAULICS, BRAKE HYDRAULIC SYSTEM (05) - UPPERSTRUCTURE CHASSIS

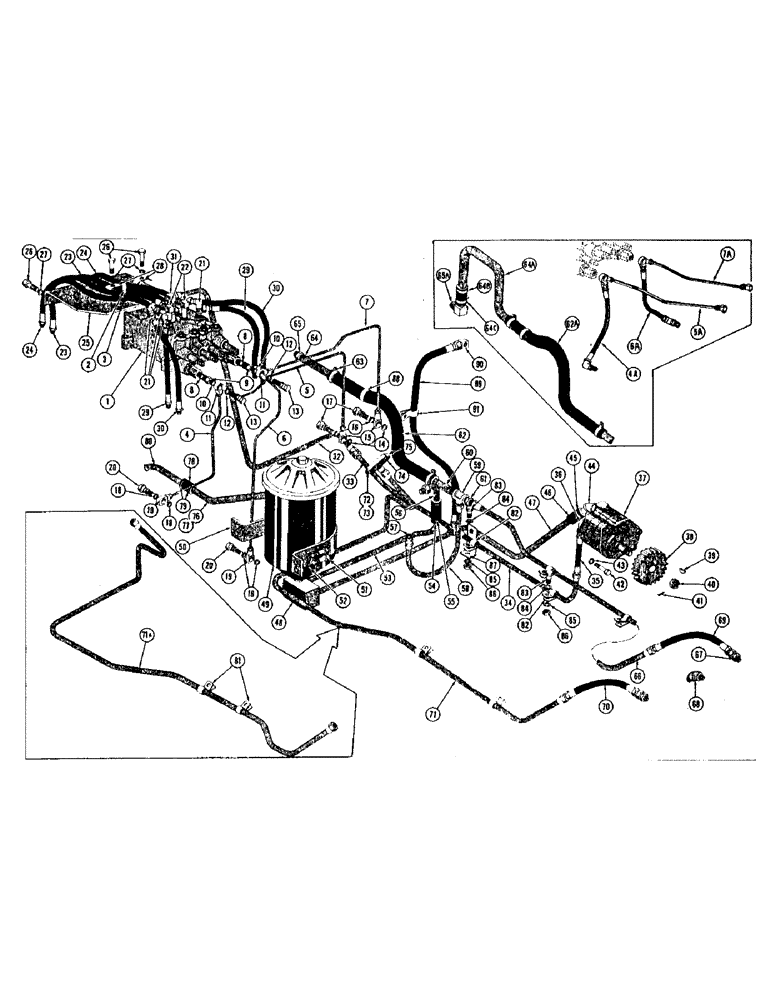

Схема запчастей Case 1000 - (132) - BASIC TRACTOR HYDRAULICS, BRAKE HYDRAULIC SYSTEM (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

74907

VALVE ASS'Y - hydraulic control (Type I) (See figure 282 for breakdown) (Order R12338 for service)

1шт.

R12338

VALVE ASS'Y - hydraulic control (Type II) (See figure 284 for breakdown)

1шт.

2

62-632

SCREW - socket head cap, 3/8 - 24 NF x 2 (74907 or R12338 mt'g.)

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

72078

TUBE ASS'Y - valve to R.H. brake (For tractors with shoe brakes only) 9.125" Length

1шт.

4a

R13875

HOSE ASS'Y - valve to R.H. brake (For tractors with disc brakes only)

1шт.

5

72076

TUBE ASS'Y - valve to R.H. master cylinder (For tractors with shoe brakes only) 9.437" Length

1шт.

5a

R13877

TUBE ASS'Y - valve to R.H. master cylinder (For tractors with disc brakes only)

1шт.

6

72072

TUBE ASS'Y - valve to L.H. brake (For tractors with shoe brakes only)

1шт.

6a

R13875

HOSE ASS'Y - valve to L.H. brake (For tractors with disc brakes only)

1шт.

7

72074

TUBE ASS'Y - valve to L.H. master cylinder (For tractors with shoe brakes only) 0.188" OD, 7.5", 4.875" Length

1шт.

7a

R13879

TUBE ASS'Y - valve to L.H. master cylinder (For tractors with disc brakes only)

1шт.

8

49399

X

SEAL - "O" ring

2шт.

9

72125

ADAPTER

- brake tube

2шт.

10

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

11

33262

HORN,1/2" - 20 x 1 5/32"

FITTING - brake line

2шт.

12

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet connection

2шт.

13

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake line fitting

2шт.

14

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

15

50861

FITTING

- 3/16" tube

2шт.

16

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet connection

2шт.

17

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake line fitting

2шт.

18

33257

SPACER

GASKET - copper, special (For tractors with shoes brakes only)

4шт.

19

33259

FITTING - brake (For tractors with shoe brakes only)

2шт.

20

33258

KNIFE

BOLT - brake fitting (For tractors with shoe brakes only)

2шт.

21

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male (3/8" JIC to 1/4 NPT), transmission hydraulic brakes

6шт.

22

218-508

ELBOW - 90 degree extra long male (3/8" JIC to 1/4" NPT), transmission hydraulic brakes

2шт.

23

73762

HOSE ASS'Y - valve to transmission, hydraulic brakes

2шт.

24

73760

X

HOSE ASS'Y - valve to transmission, hydraulic brakes

2шт.

25

73773

BRACKET - hose support, transmission hydraulic brakes

1шт.

26

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(73773 mt'g.), transmission hydraulic brakes Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

transmission hydraulic brakes 3/8"

4шт.

28

49838

CLAMP

- hose mt'g., transmission hydraulic brakes

4шт.

29

73758

COIL

HOSE ASS'Y - valve to transmission, hydraulic brakes

2шт.

30

73756

HOSE ASS'Y - valve to transmission, hydraulic brakes

2шт.

31

218-498

ELBOW - 90 degree extra long male (5/8" JIC to 1/2" NPT), transmission hydraulic brakes 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

32

72208

TUBE ASS'Y - valve to pump, transmission hydraulic brakes

1шт.

33

72132

TAPPET,0.625" Diameter, 8, 3.75" Length

TUBE ASS'Y - valve to pump, transmission hydraulic brakes

1шт.

34

71783

SPARE PART,0.625" Diameter, 28.375" Length

TUBE ASS'Y - valve to pump, transmission hydraulic brakes

1шт.

35

71768

HOSE ASS'Y - valve to pump, transmission hydraulic brakes

1шт.

36

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (5/8" JIC to 3/4" NPT), transmission hydraulic brakes

1шт.

37

32655

PUMP ASS'Y - hydraulic (See figure 274 for breakdown), transmission brakes

1шт.

38

72762

REFLECTOR

GEAR - pump drive, transmission hydraulic brakes

1шт.

39

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Transmission hydraulic brakes #9, 3/16" x 3/4"

1шт.

40

129-267

X

NUT - slotted hex. (5/8 - 18 NF), transmission hydraulic brakes

1шт.

41

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), , Transmission hydraulic brakes 3/32" x 1 1/2"

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(32655 mtg.) Transmission hydraulic brakes Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

transmission hydraulic brakes 3/8"

2шт.

44

R11626

CONNECTOR, ELEC

ELBOW - special, transmission hydraulic brakes

1шт.

45

R11628

X

HOSE - low pressure, transmission hydraulic brakes

1шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, transmission hydraulic brakes

2шт.

47

R11624

TUBE ASS'Y - pump to oil filter, transmission hydraulic brakes

1шт.

48

R11623

MANIFOLD - oil filter, transmission hydraulic brakes

1шт.

49

NSS

NOT SOLD SEPARAT

FILTER ASS'Y - hydraulic (See figure 138 for breakdown) (Order (1) 72029 filter ass'y and (1) R11909 screen for service), transmission brakes

1шт.

50

71848

OIL SEAL

BRACKET - filter mt'g., transmission hydraulic brakes

1шт.

51

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (71848 mt'g.), transmission hydraulic brakes

4шт.

52

92-8

LOCK WASHER,1/2"

transmission hydraulic brakes 1/2"

4шт.

53

R11911

TUBE ASS'Y - filter to torque converter, transmission hydraulic brakes

1шт.

54

R12351

LARGE HOSE

HOSE - low pressure, transmission hydraulic brakes

1шт.

55

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, transmission hydraulic brakes

2шт.

56

R11629

ELBOW - special

1шт.

57

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (5/8" JIC to 3/4" NPT), transmission hydraulic brakes

1шт.

58

R14208

TUBE ASS'Y - torque converter to tee, transmission hydraulic brakes

1шт.

59

221-425

FITTING,3/4" NPT

TEE - pipe, 3/8" NPT, transmission hydraulic brakes

1шт.

60

R10857

NIPPLE - special, transmission hydraulic brakes

1шт.

61

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (5/8" JIC to 3/4" NPT), transmission hydraulic brakes

1шт.

62

75031

HOSE - low pressure (For tractors with shoe brakes only), transmission hydraulic brakes

1шт.

62a

R23223

HOSE - low pressure (For tractors with disc brakes only), transmission hydraulic brakes

1шт.

63

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, transmission hydraulic brakes

2шт.

64

75032

NIPPLE - special (For tractors with shoe brakes only), transmission hydraulic brakes

1шт.

64a

R14725

TUBE - (For tractors with disc brakes only), transmission hydraulic brakes

1шт.

64b

R13874

HOSE - low pressure (For tractors with disc brakes only), transmission hydraulic brakes

1шт.

64c

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (For tractors with disc brakes only), transmission hydraulic brakes

2шт.

65

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, 1" NPT to 3/4" NPT (For tractors with shoe brakes only), transmission hydraulic brakes

1шт.

65a

R13872

ELBOW AND TUBE ASS'Y - (For tractors with disc brakes only), transmission hydraulic brakes

1шт.

66

71777

BOLT

TUBE ASS'Y - tee to sump, transmission hydraulic brakes

1шт.

67

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (5/8" JIC to 1/2" NPT), transmission hydraulic brakes

2шт.

68

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degrees male (5/8" JIC to 1/2" NPT), transmission hydraulic brakes

1шт.

69

71775

SLEEVE

HOSE ASS'Y - torque converter cooling (L.H.), transmission hydraulic brakes

1шт.

70

71775

SLEEVE

HOSE ASS'Y - torque converter cooling (R.H.), transmission hydraulic brakes

1шт.

71

71773

BALL BEARING

TUBE ASS'Y - sump to torque converter (For Type I engine block only), transmission hydraulic brakes

1шт.

71a

R16802

TUBE ASS'Y - sump to torque converter (For Type II engine block only), transmission hydraulic brakes

1шт.

72

R11726

TEE - torque converter, transmission hydraulic brakes

1шт.

73

R11652

PLUG - pipe, special, transmission hydraulic brakes

1шт.

74

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

transmission hydraulic brakes

1шт.

75

R11717

PLUG, transmission hydraulic brakes

1шт.

76

R11868

ELBOW - special, transmission hydraulic brakes

1шт.

77

R11621

TUBE ASS'Y - filter transmission, hydraulic brakes

1шт.

78

R11620

HOSE - low pressure, transmission hydraulic brakes

1шт.

79

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

transmission hydraulic brakes #28, 1.31/2.25 Type F Worm

2шт.

80

R13916

EXTENSION ASS'Y - suction line, transmission hydraulic brakes

1шт.

81

49771

CLAMP

- tube (R16802 & 71777 mt'g.), transmission hydraulic brakes

4шт.

82

37874

X

CLAMP - tube (71783 mt'g.), transmission hydraulic brakes

2шт.

83

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1 (37874 mt'g.), transmission hydraulic brakes

2шт.

84

195-21

WASHER,5/16"

plain, Transmission hydraulic brakes 5/16"

2шт.

85

92-5

LOCK WASHER,5/16"

transmission hydraulic brakes 5/16"

2шт.

86

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), transmission hydraulic brakes

2шт.

87

R12352

ANGLE - clamp mt'g., transmission hydraulic brakes

1шт.

88

49773

CLAMP

- hose (75031 or R13874 mt'g.), transmission hydraulic brakes

1шт.

89

33727

HOSE

ASS'Y - tee to pressure gauge, transmission hydraulic brakes

1шт.

90

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degree female (1/8" to 1/4" SAE), transmission hydraulic brakes

1шт.

91

49836

CLAMP

- hose (33727 mt'g.), transmission hydraulic brakes

1шт.
