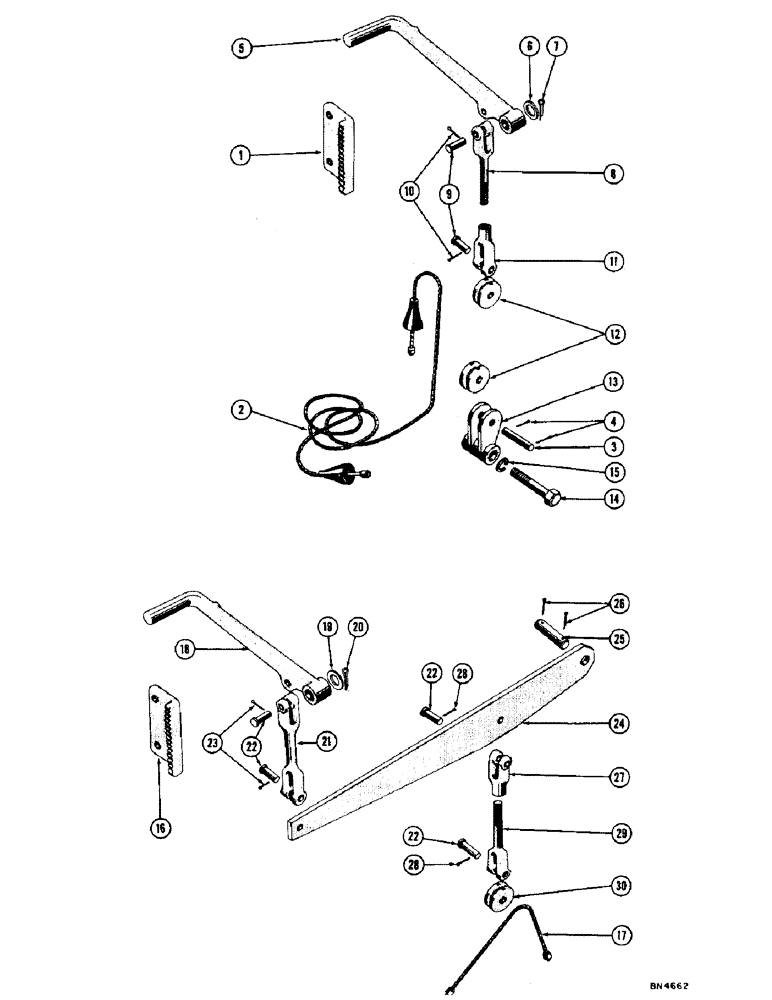

Запчасти Case 1000 (130) - PARKING BRAKE, SHOE BRAKES (05) - UPPERSTRUCTURE CHASSIS

1

70922

RACK - parking brake (Replacements mounted with rivets)

1шт.

2

70925

STRAND ASS'Y - parking brake

1шт.

3

72311

CAP COVER

PIN - yoke

1шт.

4

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

5

70926

LEVER - parking brake

1шт.

6

195-33

WASHER,1/2"

- plain

1шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

8

70927

YOKE - brake link

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

12

70930

SHEAVE - 1" root dia.

2шт.

13

70920

BRACKET - idler sheave

1шт.

14

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS - 1/2 - 20 NF x 3 (70920 mt'g)

1шт.

15

92-8

LOCK WASHER,1/2"

1шт.

16

70922

RACK - parking brake (Replacements mounted with rivets), parking brake (disc brakes)

1шт.

17

R14728

STRAND ASS'Y - parking brake, (disc brakes)

1шт.

18

R13593

LEVER - parking brake (disc brakes)

1шт.

19

195-33

WASHER,1/2"

- plain, parking brakes (disc brakes)

1шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Parking brake (disc brakes) 1/8" x 1"

1шт.

21

R13591

ROD - linkage, parking brake (disc brakes)

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Parking brake (disc brakes) 3/8" x 1.060"

4шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", parking brake (disc brakes)

2шт.

24

R13616

LEVER - parking brake (disc brakes)

1шт.

25

R13612

PIN - pivot, parking brake (disc brakes)

1шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Parking brake (disc brakes) 1/8" x 1"

2шт.

27

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, parking brake (disc brakes)

1шт.

28

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", parking brake (disc brakes)

2шт.

29

R13873

YOKE - link, parking brake (disc brakes)

1шт.

30

70930

SHEAVE - 1" root dia., parking brake (disc brakes)

1шт.
