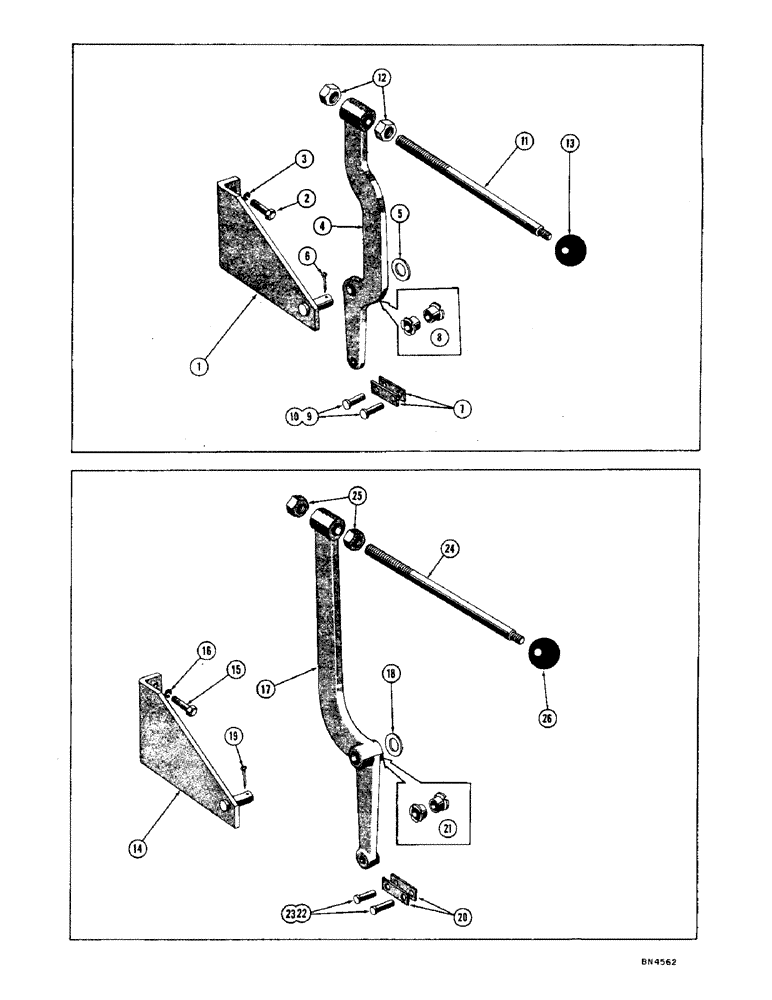

Запчасти Case 1000 (128) - TWO SPEED SHIFT, SHOE BRAKES (05) - UPPERSTRUCTURE CHASSIS

1

74959

SUPPORT ASS'Y - range lever

1шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (74959 mt'g.)

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

NSS

NOT SOLD SEPARAT

LEVER - range shift (Type I - for use without 74898 bushings) (Order (1) 74912 lever & (2) 74898 bushings)

1шт.

74912

LEVER - range shift (Type II - for use with 74898 bushings)

1шт.

5

195-45

WASHER,3/4"

1шт.

6

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

7

73130

LINK - range lever

2шт.

8

74898

BUSHING - nylon (For use with 74912 lever only)

2шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

11

70155

ROD - range lever

1шт.

12

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

2шт.

13

70213

KNOB

- control lever

1шт.

14

74959

SUPPORT ASS'Y - range lever, two speed shift (disc brakes)

1шт.

15

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (74949 mt'g.), two speed shift (disc brakes)

2шт.

16

92-6

LOCK WASHER,3/8"

two speed shift (disc brakes) 3/8"

2шт.

17

R13573

LEVER - range shift, two speed shift (disc brakes)

1шт.

18

195-45

WASHER,3/4"

2 speed shift (disc brakes) 3/4"

1шт.

19

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), , two speed shift (disc brakes) 5/32" x 1 1/2"

1шт.

20

73130

LINK - range lever, two speed shift (disc brakes)

2шт.

21

74898

BUSHING - nylon, two speed shift (disc brakes)

2шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , 2 speed shift (disc brakes) 3/8" x 1.060"

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", two speed shift (disc brakes)

2шт.

24

R13592

ROD - range lever, two speed shift (disc brakes)

1шт.

25

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF), two speed shift (disc brakes)

2шт.

26

70213

KNOB

- control lever, two speed shift (disc brakes)

1шт.
