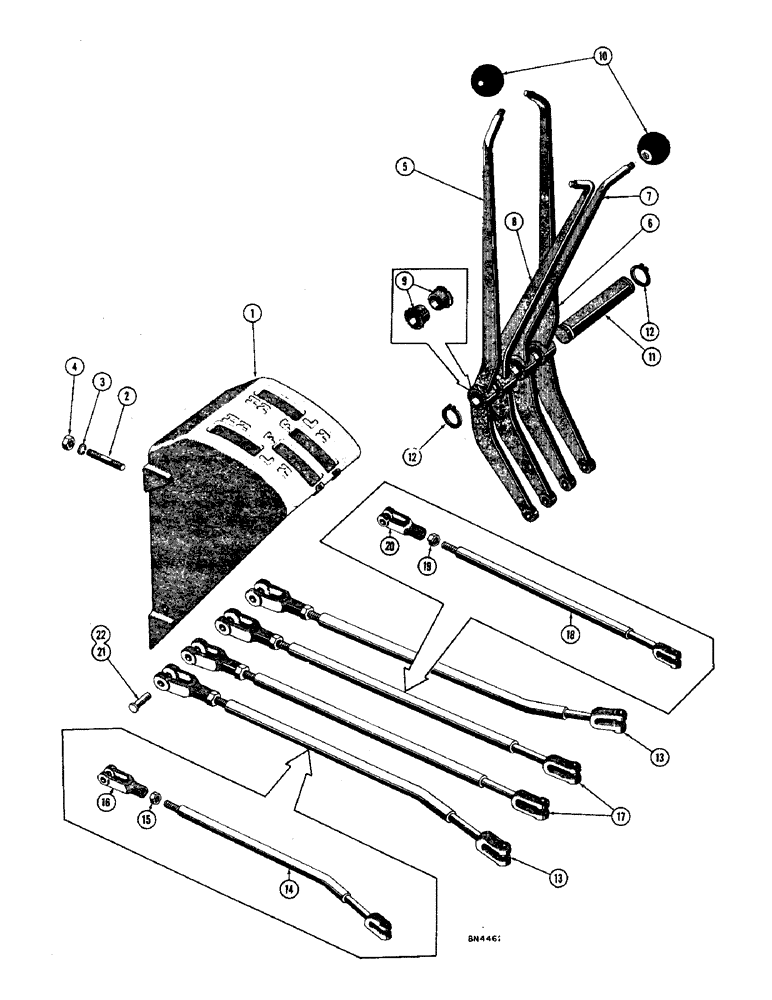

Запчасти Case 1000 (126) - CONTROL TOWER (05) - UPPERSTRUCTURE CHASSIS

1

70111

SCREW

TOWER - transmission control

1шт.

2

46510

STUD - 1/2 - 13 NC x 2 (70111 mt'g.)

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- reg. SF hex. (1/2 - 13 NC)

4шт.

5

NSS

NOT SOLD SEPARAT

LEVER - high-low shift, L.H. (Type I - for use without 74898 bushing) (Order (1) 74885 lever & (2) 74898 bushings)

1шт.

74885

LEVER - high-low shift, L.H. (Type II - for use with 74898 bushings)

1шт.

6

NSS

NOT SOLD SEPARAT

LEVER - high-low shift, R.H. (Type I - for use without 74898 bushings) (Order (1) 74886 lever & (2) 74898 bushings)

1шт.

74886

LEVER - high-low shift, R.H. (Type II - for use with 74898 bushings)

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER - forward-reverse, L.H. (Type I - for use without 74898 bushings) (Order (1) 74883 lever & (2) 74898 bushings)

1шт.

74883

LEVER - forward-reverse, L.H. (Type II - for use with 74898 bushings)

1шт.

8

NSS

NOT SOLD SEPARAT

LEVER - forward-reverse, R.H. (Type I - for use without 74898 bushings) (Order (1) 74884 lever & (2) 74898 bushings)

1шт.

74884

LEVER - forward-reverse, R.H. (Type II - for use with 74898 bushings)

1шт.

9

74898

BUSHING - nylon (For use with Type II levers only)

8шт.

10

CAS31375

KNOB

BALL - grip

4шт.

11

70147

SHAFT

- lever pivot

1шт.

12

W-10757-S

RING - snap

2шт.

13

72251

ROD ASS'Y - transmission control

2шт.

14

72252

SHAFT

ROD - transmission control

1шт.

15

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

16

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

17

72254

SCREW

ROD ASS'Y - transmission control

2шт.

18

72255

BLOCK

ROD - transmission control

1шт.

19

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

20

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

8шт.

22

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

8шт.
