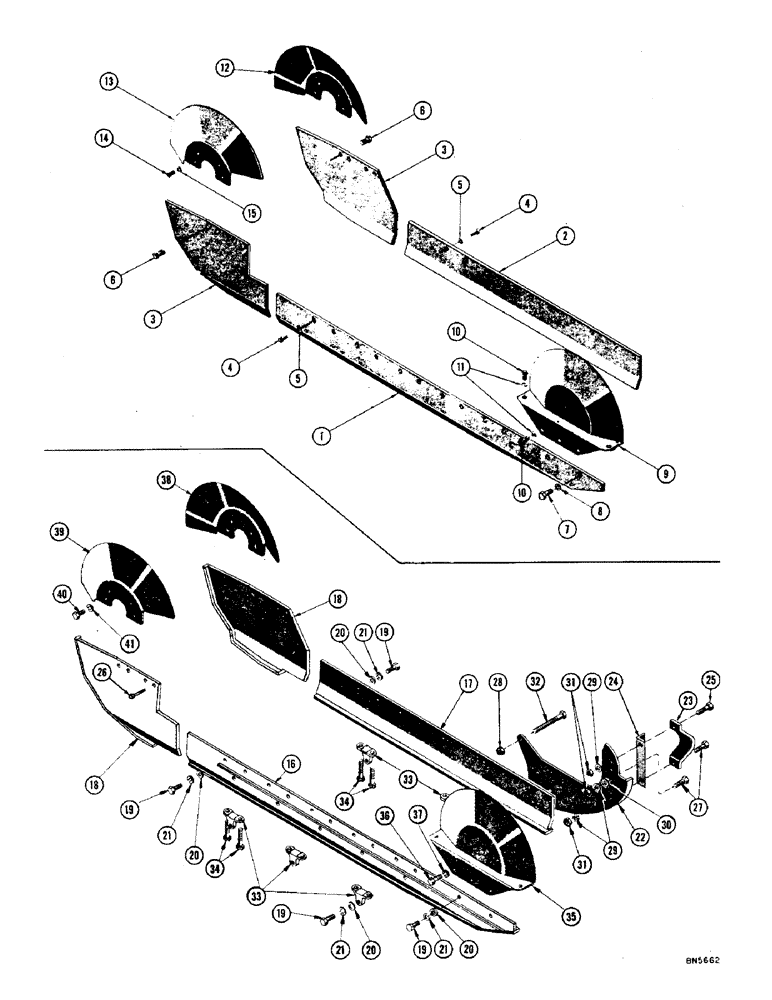

Запчасти Case 1000 (164) - STANDARD ROCK GUARDS, FIVE ROLLER (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
6271
CLIP
GUARD INSTALLATION - rock (Optional equipment)
1шт.
1
70649
GUARD - R.H. outer rock
1шт.
70650
GUARD - L.H. outer rock
1шт.
2
70651
GUARD - R.H. inner rock
1шт.
70652
GUARD - L.H. inner rock
1шт.
3
70647
GUARD - R.H. rock (Order with print R4443)
1шт.
70648
GUARD - L.H. rock (Order with print R4443)
1шт.
4
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2 - 20 NF x 1-1/4 (70649, 70650, &70651, 70652 mt'g.)
40шт.
5
92-8
LOCK WASHER,1/2"
40шт.
6
14-1236
BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd
HHCS - 3/4 - 16 NF x 2-1/4 (70647 & 70648 mt'g.)
16шт.
7
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2 - 20 NF x 1-1/2 (70649 & 70650 mt'g.)
4шт.
8
92-8
LOCK WASHER,1/2"
4шт.
9
70641
GUARD ASS'Y - sprocket
2шт.
10
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2 - 20 NF x 1-1/2 (70641 mt'g.)
10шт.
11
92-8
LOCK WASHER,1/2"
10шт.
6333
HYDRAULIC CYLINDER
GUARD INSTALLATION - idler (Optional equipment)
1шт.
12
70642
GUARD - R.H. front idler
2шт.
13
70643
KNOB
GUARD - L.H. front idler
2шт.
14
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2 - 20 NF x 1 (70642 & 70643 mt'g.)
16шт.
15
92-8
LOCK WASHER,1/2"
16шт.
R2370
GUARD INSTALLATION - rock (Optional equipment), 5 roller
1шт.
16
74991
GUARD - R.H. outer rock, heavy duty (5 roller)
1шт.
74992
GUARD - L.H. outer rock, heavy duty (5 roller)
1шт.
17
74983
GUARD - R.H. inner rock, heavy duty (5 roller)
1шт.
74984
SPROCKET
GUARD - L.H. inner rock, heavy duty (5 roller)
1шт.
18
74975
FLEXIBLE SHEATH
GUARD - R.H. rock (Order with prints R14443 & R20697), heavy duty (5 roller)
2шт.
74976
ROPE
GUARD - L.H. rock (Order with prints R14443 & R20697), heavy duty (5 roller)
2шт.
19
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2 - 20 NF x 1-1/4 (74991, 74992 & 74983, 74984 mt'g.), heavy duty rock guard (5 roller)
64шт.
20
195-33
WASHER,1/2"
- plain, heavy duty rock guard (5 roller)
64шт.
21
92-8
LOCK WASHER,1/2"
heavy duty rock guard (5 roller) 1/2"
64шт.
22
R11227
GUARD - R.H. inner sprocket, heavy duty rock (5 roller)
1шт.
R11226
GUARD - L.H. inner sprocket, heavy duty rock (5 roller)
1шт.
23
R13103
DEFLECTOR - R.H. inner rock guard, heavy duty (5 roller)
1шт.
R13102
DEFLECTOR - L.H. inner rock guard, heavy duty (5 roller)
1шт.
24
74964
ANGLE - rock guard mt'g., heavy duty rock (5 roller)
2шт.
25
14-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5
(R13102 & R13103 mt'g.), heavy duty rock guard (5 roller) Hex, 5/8"-18 x 2 1/4", G5
2шт.
26
14-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 5
HHCS - 3/4 - 16 NF x 2 (74975 & 74976 mt'g.), heavy duty rock guard (5 roller)
16шт.
27
14-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
(R11226 & R11227 mt'g.), heavy duty rock guard (5 roller) Hex, 5/8"-18 x 2", G5
4шт.
28
131-152
HARDWARE
NUT - lock (3/4 - 16 NF), heavy duty rock guard (5 roller)
2шт.
30
195-41
WASHER,5/8"
Heavy duty rock guard (5 roller) 5/8"
8шт.
31
25-1110
NUT,5/8"-18, G5
- reg. SF hex. (5/8 - 18 NF), heavy duty rock guard (5 roller)
6шт.
32
R10896
BOLT - main frame 3/4 - 16 NF X 7-3/8, heavy duty rock guard (5 roller)
2шт.
R10897
BOLT - main frame 3/4 - 16 NF x 5, heavy duty rock guard (5 roller)
2шт.
33
74973
BLOCK - rock guard mt'g., heavy duty rock guard (5 roller)
20шт.
34
47649
SPRING
BOLT - place (Self locking), heavy duty rock guard (5 roller)
40шт.
35
70641
GUARD ASS'Y - sprocket, heavy duty rock (5 roller)
2шт.
36
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2 - NF x 1-1/2 (70641 mt'g.), heavy duty rock guard (5 roller)
10шт.
37
92-8
LOCK WASHER,1/2"
heavy duty rock guard (5 roller) 1/2"
10шт.
6333
HYDRAULIC CYLINDER
GUARD INSTALLATION - idler (Optional equipment), heavy duty rock (5 roller)
1шт.
38
70642
GUARD - R.H. front idler, heavy duty rock (5 roller)
2шт.
39
70643
KNOB
GUARD - L.H. front idler, heavy duty rock (5 roller)
2шт.
40
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2 - 20 NF x 1 (70642 & 70643 mt'g.), heavy duty rock guard (5 roller)
16шт.
41
92-8
LOCK WASHER,1/2"
heavy duty rock guard (5 roller) 1/2"
16шт.
Выбрано товаров: 54
