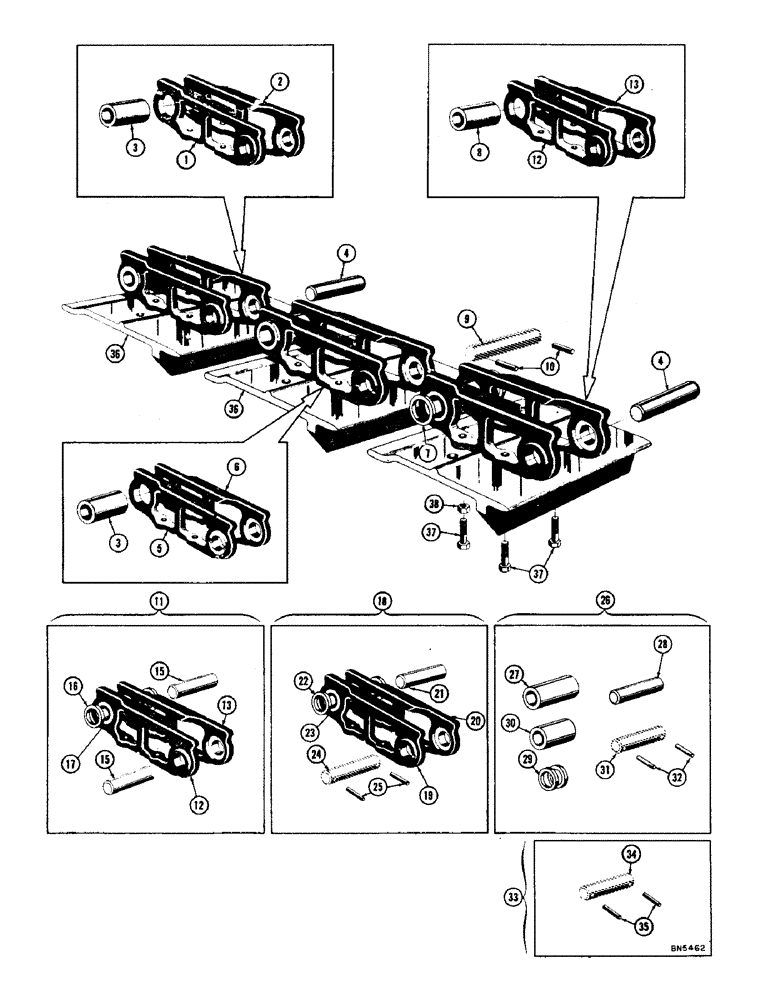

Запчасти Case 1000 (160) - TRACK CHAIN, SIX ROLLER (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
72733
ROLLER BEARING
CHAIN ASS'Y - 19 units
2шт.
1
31079
LINK
- track, R.H. (Order kit R2215, ref. #11)
18шт.
2
31080
LINK
- track, L.H. (Order kit R2215, ref. #11)
18шт.
3
70079
BUSHING
- long (Order kit R2191, ref. #26)
18шт.
4
70078
PIN
- track (See kit R2191, ref. #26)
18шт.
5
70902
LINK
- track master, R.H. (Order kit R2216, ref. #18)
1шт.
6
70903
LINK
- track master, L.H. (Order kit R2216, ref. #18)
1шт.
7
70843
SPACER
BUSHING - track spacer (See kit R2191, ref. #26)
2шт.
8
70848
BUSHING
- track master (Short) (See kit R2191, ref. #26)
1шт.
R2214
KIT
- master pin
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
10
R15710
LINCH PIN
PIN - lock
2шт.
73198
CHAIN ASS'Y - 20 units
2шт.
1
31079
LINK
- track, R.H. (Order kit R2215, ref. #11)
19шт.
2
31080
LINK
- track, L.H. (Order kit R2215, ref. #11)
19шт.
3
70079
BUSHING
- long (Order kit R2191, ref. #26)
19шт.
4
70078
PIN
- track (See kit R2191, ref. #26)
19шт.
5
70902
LINK
- track master, R.H. (Order kit R2216, ref. #18)
1шт.
6
70903
LINK
- track master, L.H> (Order kit R2216, ref. #18)
1шт.
7
70843
SPACER
BUSHING - track spacer (See kit R2191, ref. #26)
2шт.
8
70848
BUSHING
- track master (Short) (See kit R2191, ref. #8)
1шт.
R2214
KIT
- master pin
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
10
R15710
LINCH PIN
PIN - lock
2шт.
11
R2215
KIT
- track unit repair
74шт.
12
31079
LINK
- track, R.H.
1шт.
13
31080
LINK
- track, L.H.
1шт.
14
RESERVED
1шт.
15
70078
PIN
- track
2шт.
16
70843
SPACER
BUSHING - track spacer
2шт.
17
70848
BUSHING
- master (Short)
1шт.
18
R2216
KIT
- track master unit repair
4шт.
19
70902
LINK
- track master, R.H.
1шт.
20
70903
LINK
- track master, L.H.
1шт.
21
70078
PIN
- track
1шт.
22
70843
SPACER
BUSHING - track spacer
2шт.
23
70848
BUSHING
- master (Short)
1шт.
R2214
KIT
- master pin
1шт.
24
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
25
R15710
LINCH PIN
PIN - lock
2шт.
26
R2191
KIT
- pin & bushing
1шт.
27
70079
BUSHING
- long
70шт.
28
70078
PIN
- track
70шт.
29
70843
SPACER
BUSHING - track spacer
8шт.
30
70848
BUSHING
- master (Short)
4шт.
R2214
KIT
- master pin
4шт.
31
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
32
R15710
LINCH PIN
PIN - lock
2шт.
33
R2214
KIT
- master pin
4шт.
34
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
35
R15710
LINCH PIN
PIN - lock
2шт.
36
71079
PLATE
GROUSER - track
78шт.
37
R14841
BOLT
BOLT - track, 1/2 - 20 NF x 1-3/4
312шт.
38
25-278
NUT,1/2"-20, G5, High
- lock (1/2 - 20 NF)
312шт.
Выбрано товаров: 54
