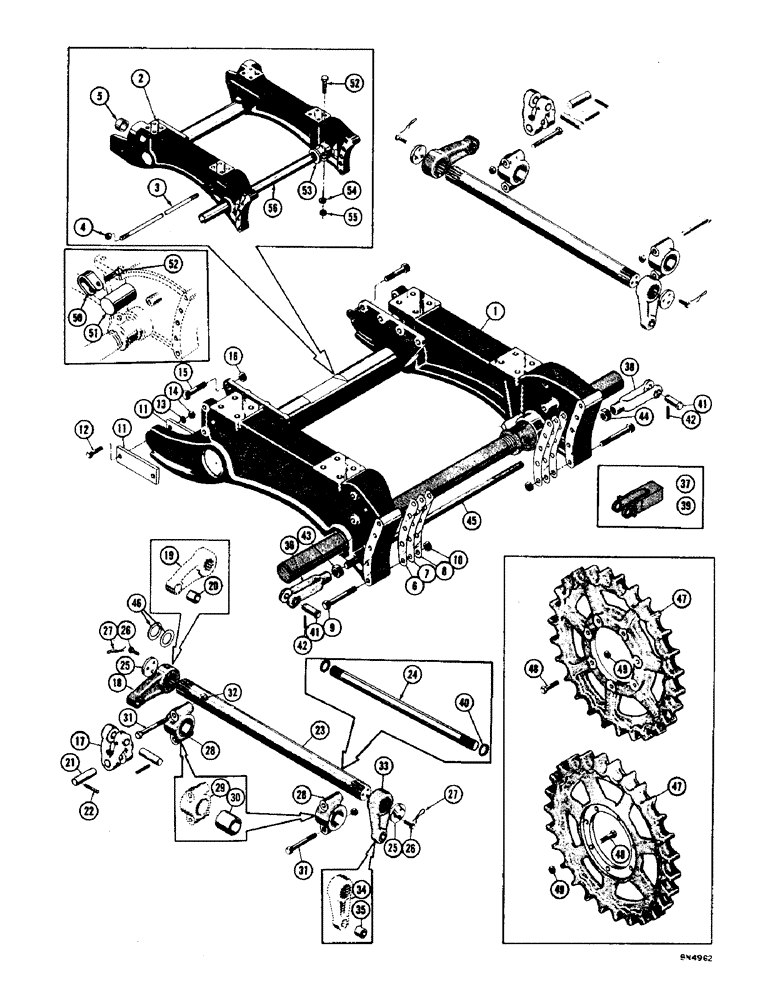

Запчасти Case 1000 (140) - SUSPENSION SYSTEM (04) - UNDERCARRIAGE

1

NSS

NOT SOLD SEPARAT

FRAME ASS'Y - main (Order ref. #2 for service)

1шт.

2

R15797

FRAME ASS'Y - (Service only)

1шт.

3

R14157

ROD - compression

1шт.

4

25-1124

NUT,1 1/2"-12, G5

- reg. SF hex. (1-1/2 - 12 NF)

4шт.

5

70091

BUSHING

2шт.

6

71655

SHIM

1шт.

7

71656

SHIM

1шт.

8

72151

SHIM

1шт.

9

71976

AMMETER

BOLT - main frame, special

10шт.

10

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

10шт.

11

70171

PLATE - wear

4шт.

12

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4 (70171 mt'g.)

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

4шт.

15

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4 - 16 NF x 4-1/2 (Main frame to engine frame)

8шт.

16

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

8шт.

17

70041

KEY

LINK - torsion (Type I - for 1-1/4" dia. pins)

2шт.

R13786

LINK

- torsion (Type II - for 1-15/32" dia. pins)

2шт.

18

NLS

NO LONGER SERVICED

ASS'Y - front equalizer (Type I - for 1-1/4" dia. pins)

2шт.

R13132

LEVER

ASS'Y - front equalizer (Type II - for 1-15/32" dia. pins)

2шт.

19

NSS

NOT SOLD SEPARAT

LEVER - front equalizer

1шт.

20

70028

BUSHING

- (Used in 72028 lever only)

1шт.

R13096

BUSHING

- (Used in R13132 lever only)

1шт.

21

70089

PIN - socket link (Type I - 1-1/4" dia.)

4шт.

R13128

PIN

- socket link (Type II - 1-15/32" dia.)

4шт.

22

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Drive lock (70089 mt'g. only) 3/8" x 2 1/2", Slotted

4шт.

138-209

LOCK PIN,1/2" x 2 3/4", Slotted

Pin, , drive lock (R13128 mt'g. only) 1/2" x 2 3/4", Slotted

4шт.

23

R13450

X

BAR - torsion (Type I - for lock plates)

2шт.

24

R18705

X

BAR - torsion (Type II - for snap rings)

2шт.

25

74541

PLATE - lock (R13450 mt'g. only)

4шт.

26

46947

HHCS - 1/2 - 20 NF x 1-1/4 (Drilled) (74541 mt'g.)

12шт.

27

R10831

ELECTRICAL WIRE

WIRE - tie (46947 mt'g.)

1шт.

28

70096

BRACKET

ASS'Y - torsion bar

4шт.

29

NSS

NOT SOLD SEPARAT

BRACKET - torsion bar

1шт.

30

70091

BUSHING

1шт.

31

14-1296

BOLT,Hex, 3/4" - 16 x 6", Gr 5

HHCS - 3/4 - 16 NF x 6 (70096 mt'g.)

8шт.

32

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

8шт.

33

NLS

NO LONGER SERVICED

LEVER ASS'Y - rear equalizer

2шт.

34

NSS

NOT SOLD SEPARAT

LEVER - rear equalizer

1шт.

35

70914

BUSHING

1шт.

36

NSS

NOT SOLD SEPARAT

YOKE - L.H. thread (Type I - order R16591 for service)

1шт.

37

R16591

YOKE

- L.H. thread (Type II)

1шт.

38

NSS

NOT SOLD SEPARAT

YOKE - R.H. thread (Type I - order R16592 for service)

1шт.

39

R16592

YOKE

- R.H. thread (Type II)

1шт.

40

R18674

RING

- snap (R18705 mt'g.)

4шт.

41

71673

PIN - yoke

2шт.

42

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, (71673 mt'g.) 1/4" x 1 1/2", Type E

2шт.

43

129-330

NUT,1"-14, G5, LH

1шт.

44

25-1116

NUT,1"-14, G5

- reg. SF hex. (R.H. thread)

1шт.

45

71323

LOCK NUT

ROD - equalizer

1шт.

46

74298

WASHER

SPACER

1шт.

47

70030

SPROCKET ASSY.

SPROCKET - drive

2шт.

48

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- drive sprocket

14шт.

49

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

14шт.

R4149

KIT - pivot shaft clamp (Optional)

1шт.

50

R20158

CLAMP

"U" CLAMP

2шт.

51

NSS

NOT SOLD SEPARAT

BAR - clamp stop (Order R4149 for service)

2шт.

52

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4 - 16 NF x 4-1/2 (R20158 & R14205 mt'g.)

2шт.

53

R14205

CLAMP

- pivot shaft

2шт.

54

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

55

25-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF)

2шт.

56

R14277

SHAFT - pivot (Threaded)

1шт.
