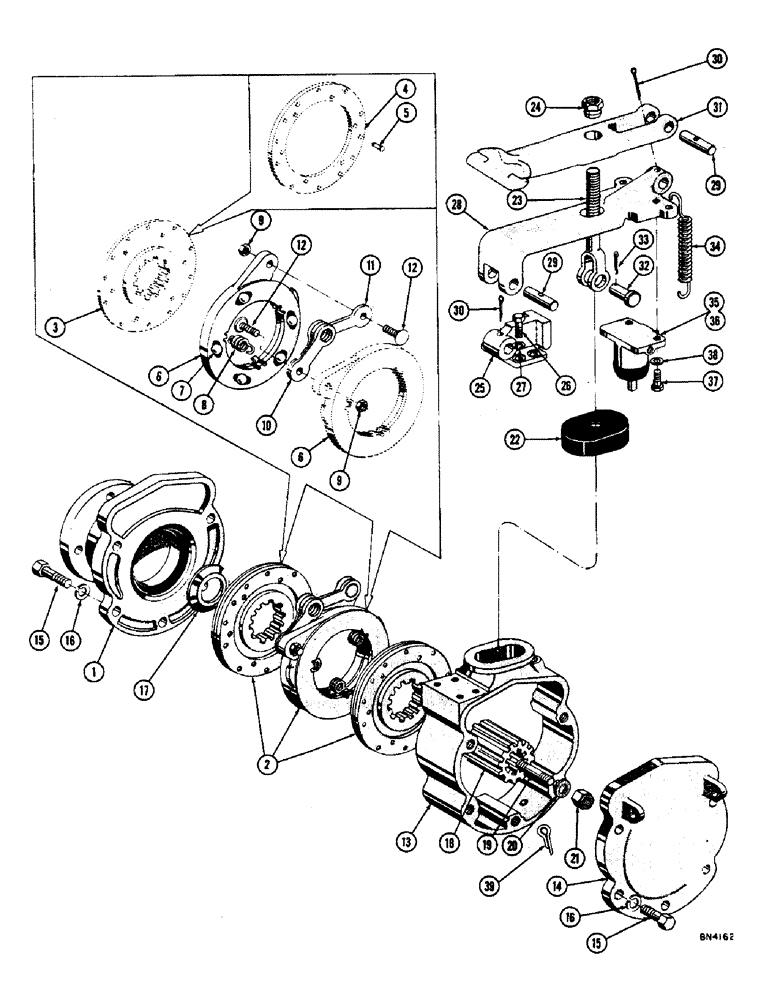

Запчасти Case 1000 (118) - HYDRAULIC BRAKES, DISC TYPE, TYPE II (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
R13516
MOUNT - brake
2шт.
2
R13983
X
BRAKE ASS'Y - hydraulic
2шт.
R3003
KIT - middle
1шт.
3
NSS
NOT SOLD SEPARAT
DISC ASS'Y - middle
2шт.
4
NSS
NOT SOLD SEPARAT
LINING - brake (Order kit R3004 for service)
2шт.
5
O7206AB
RIVET
- 3/16" dia. x 7/16
18шт.
R13352
BRAKE
KIT - actuating disc
1шт.
6
NSS
NOT SOLD SEPARAT
DISC - actuating
2шт.
7
O9384AB
X
BALL - 7/8" dia.
5шт.
8
O8780AB
X
SPRING - extension
3шт.
9
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex. jam (3/8 - 24 NF)
2шт.
10
O8782AB
X
LINK - yoke
1шт.
11
O8781AB
X
LINK - plain
1шт.
12
O8783AB
X
STUD
2шт.
13
R14887
HOUSING - brake
2шт.
14
R13413
COVER
- brake
2шт.
15
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
20шт.
16
92-8
LOCK WASHER,1/2"
20шт.
17
R13614
SHIELD
SLINGER - oil
2шт.
18
R12613
ADAPTER
- brake
2шт.
19
72824
X
STUD - 1/2 - 13 NC x 1-7/8
2шт.
20
R13347
WASHER
- special
2шт.
22
R22100
CAP
- dust
2шт.
23
R14125
ROD
2шт.
24
R21551
LOCK NUT
- ball seat
2шт.
25
R14120
BRACKET
- brake
2шт.
26
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
(R14120 mtg.) Hex, 3/8"-16 x 7/8", G5, Full Thd
4шт.
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
(R14120 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
27
92-6
LOCK WASHER,3/8"
8шт.
28
R14121
LEVER
- brake
2шт.
29
R13609
AXLE PIN
PIN - brake
4шт.
30
132-97
COTTER PIN,3/16" x 1 3/4"
Pin, Split (Cotter), 3/16" x 1 3/4"
4шт.
31
R14785
LEVER - hand brake
2шт.
32
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - yoke
2шт.
33
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
34
R14124
SPRING
4шт.
35
R14115
X
CYLINDER ASS'Y - wheel
2шт.
36
R2933
BRAKE
KIT - wheel cylinder repair
1шт.
37
13-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd
4шт.
38
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
39
R14605
PIN
- cotter
4шт.
Выбрано товаров: 42
