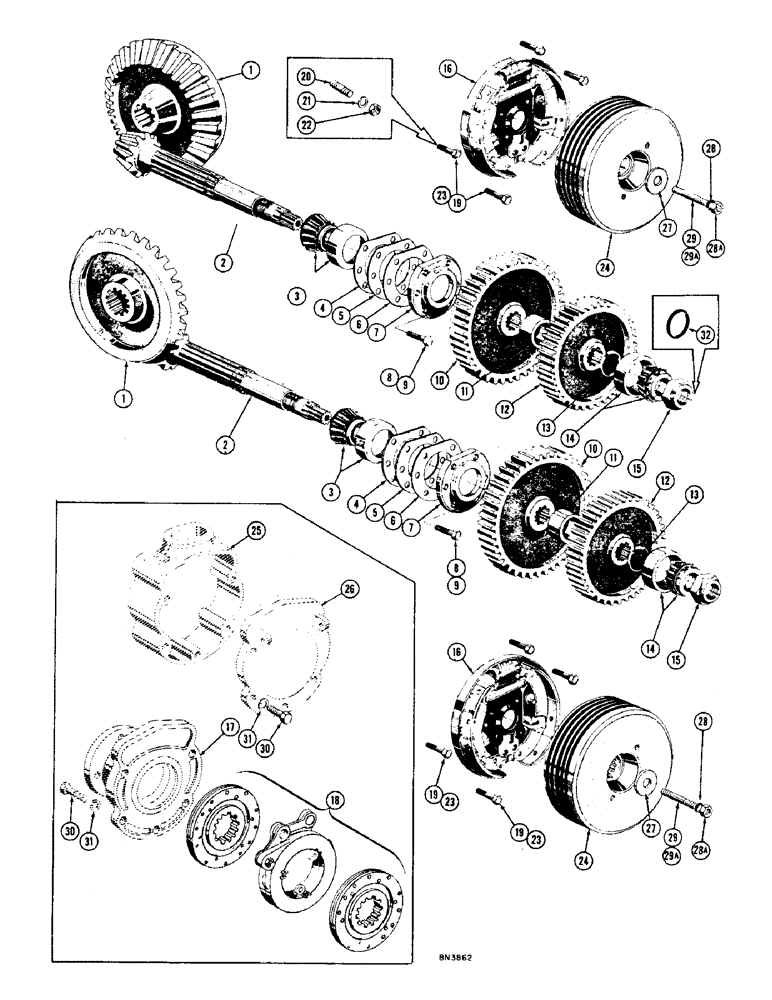

Запчасти Case 1000 (112) - BRAKE SHAFT PARTS (04) - UNDERCARRIAGE

73876

FRAME

SPARE PART TRANSMISSION ASSY - complete (Continued) (With shoe brakes)

1шт.

R4500

TRANSMISSION ASSY - complete (Continued) (With disc brakes)

1шт.

1

70758

SPARE PART GEAR - bevel

2шт.

2

70759

SPARE PART PINION & SHAFT

2шт.

3

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

Roller

2шт.

40436

ROLLER BEARING,1.9375" ID x 1.751"

CONE - roller

2шт.

4

71396

SHIM

SPARE PART Locking plate (.010")

1шт.

5

71397

SHIM

Locking plate (.005")

1шт.

6

NLS

NO LONGER SERVICED

Locking plate (.003")

1шт.

7

70839

PLATE

Locking

2шт.

8

46954

CYLINDER END CAP,Hex, 3/8" - 24 x 1", Gr 5, Drilled Hd

HHCS - 3/8-24 NF x 1 (Drilled head) (70839 mt'g.)

12шт.

9

R10831

ELECTRICAL WIRE

WIRE Tie

1шт.

10

NLS

NO LONGER SERVICED

Driven, low

2шт.

11

70833

SPARE PART

2шт.

12

70296

SPARE PART GEAR - driven, high

2шт.

13

100-11196

SNAP RING,#196, Ext

hose, small #196, Ext

2шт.

14

VT2100

X

CUP - roller bearing

2шт.

40390

ROLLER BEARING,1.6875" ID x 1"

CONE - roller

2шт.

15

70828

LOCK NUT

Locking

2шт.

16

R13779

BRAKE ASSY - Type I (Shoe brake) (See figure 116 for breakdown)

2шт.

17

REF

INSTRUCTION

MOUNT - brake (See figure 106, ref. #42) (For disc brakes only)

2шт.

18

R13983

X

BRAKE ASSY - (Type II - disc brake) (See figure 118 for breakdown)

2шт.

19

46974

HHCS - 1/2 - 13 NC x 1 (Drilled head) (R13779 mt'g. only) (Type I)

8шт.

20

R11379

SPARE PART Special (R13779 mt'g. only) (Type II)

8шт.

21

92-8

LOCK WASHER,1/2"

(Used with R11379 stud only)

8шт.

22

25-118

NUT,1/2"-20, G5

Reg. SF hex (Used with R11379 stud only)

8шт.

23

R10831

ELECTRICAL WIRE

WIRE Tie (Used with 46974 or R11379)

1шт.

24

R11483

SPARE PART Brake (For shoe brakes only)

2шт.

25

REF

INSTRUCTION

HOUSING - brake (For disc brakes only) (See figure 118, ref. #13)

2шт.

26

REF

INSTRUCTION

COVER - brake (For disc brakes only) (See figure 118, ref. #14)

2шт.

27

32506

SPARE PART Brake drum (For shoe brakes only)

2шт.

28

92-8

LOCK WASHER,1/2"

(Used with 13-816 screw only)

2шт.

28a

131-10

NUT,1/2"-13, GB

(Used with 72824 stud only)

2шт.

29

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(R11483 mounting only) (Type I)

2шт.

29a

72824

X

STUD - 1/2-13 NC x 1-7/8 (R11483 mt'g. only) (Type II)

2шт.

30

REF

INSTRUCTION

HHCS - 1/2-13 NC x 1-1/4 (For disc brakes only)

20шт.

31

REF

INSTRUCTION

WASHER - med. sec. lock (For disc brakes only) (See figure 118, ref. #16)

20шт.

32

O9018AB

X

SEAL - "O" ring

2шт.
