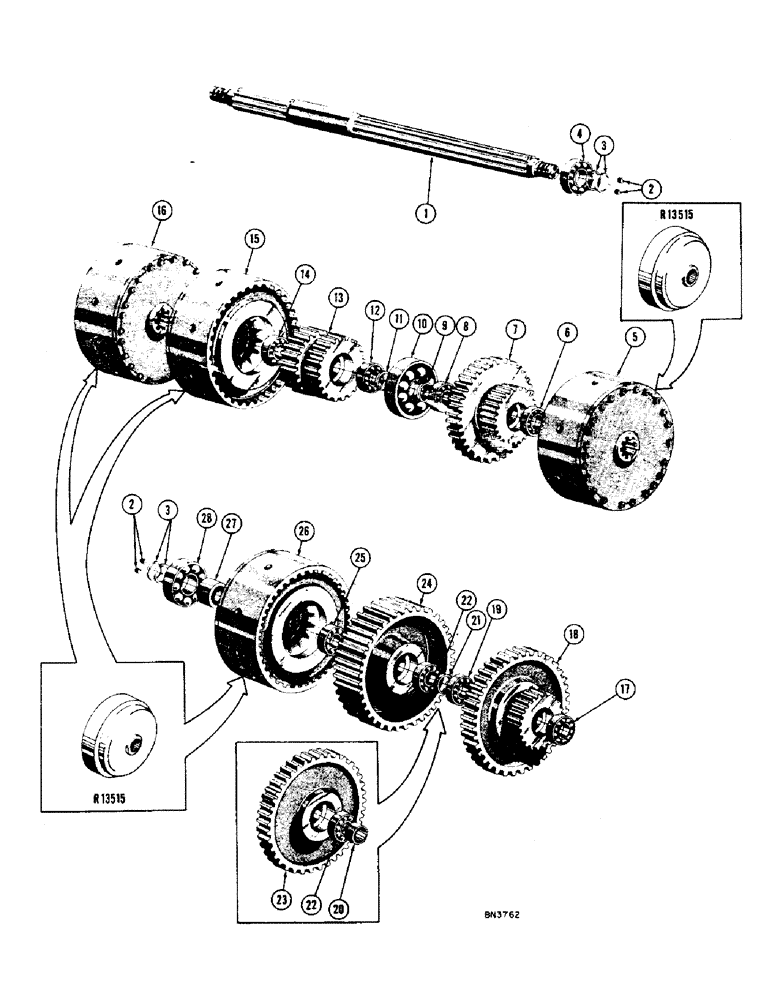

Запчасти Case 1000 (110) - CLUTCH SHAFT PARTS (03) - TRANSMISSION

73876

FRAME

TRANSMISSION ASS'Y - complete (Continued) (with shoe brakes)

1шт.

R4500

TRANSMISSION ASS'Y - complete (Continued (With disc brakes)

1шт.

1

71938

SHAFT

ASS'Y - clutch

2шт.

2

221-660

PLUG,Hex Hd, 1/16"-27

- allen head pipe, 1/16 NPT

4шт.

3

32328

X

RING - piston

8шт.

4

O4509TF

X

BEARING - ball

2шт.

5

70847

CLUTCH ASS'Y - high, hydraulic (Order R13515 for service) (See figure 114 for breakdown)

2шт.

6

G10418

BEARING, BALL

BEARING - ball

2шт.

7

70294

COVER

GEAR - clutch, high

2шт.

8

G10418

BEARING, BALL

BEARING - ball

2шт.

9

30664

X

SPACER

2шт.

10

40016

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

- ball

2шт.

11

30664

X

SPACER

2шт.

12

G10418

BEARING, BALL

BEARING - ball

2шт.

13

70298

GEAR - clutch, low

2шт.

14

G10418

BEARING, BALL

BEARING - ball

2шт.

15

70847

CLUTCH ASS'Y - low, hydraulic (Order R13515 for service) (See figure 114 for breakdown)

2шт.

16

70847

CLUTCH ASS'Y - forward, hydraulic (Order R13515 for service) (See figure 114 for breakdown)

2шт.

17

G10418

BEARING, BALL

BEARING - ball

2шт.

18

70299

GEAR - clutch, forward

2шт.

19

W10097S

X

BEARING - ball

2шт.

20

72186

X

SPACER

1шт.

21

70829

SPACER

1шт.

22

W10097S

X

BEARING - ball

2шт.

23

70299

GEAR - clutch, reverse (R.H. shaft)

1шт.

24

70297

SHAFT

GEAR - clutch, reverse (L.H. shaft)

1шт.

25

G10418

BEARING, BALL

BEARING - ball

2шт.

26

70847

CLUTCH ASS'Y - reverse, hydraulic (Order R13515 for service) (See figure 114 for breakdown)

2шт.

27

70834

BUSHING

SPACER

2шт.

28

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

- ball

2шт.
