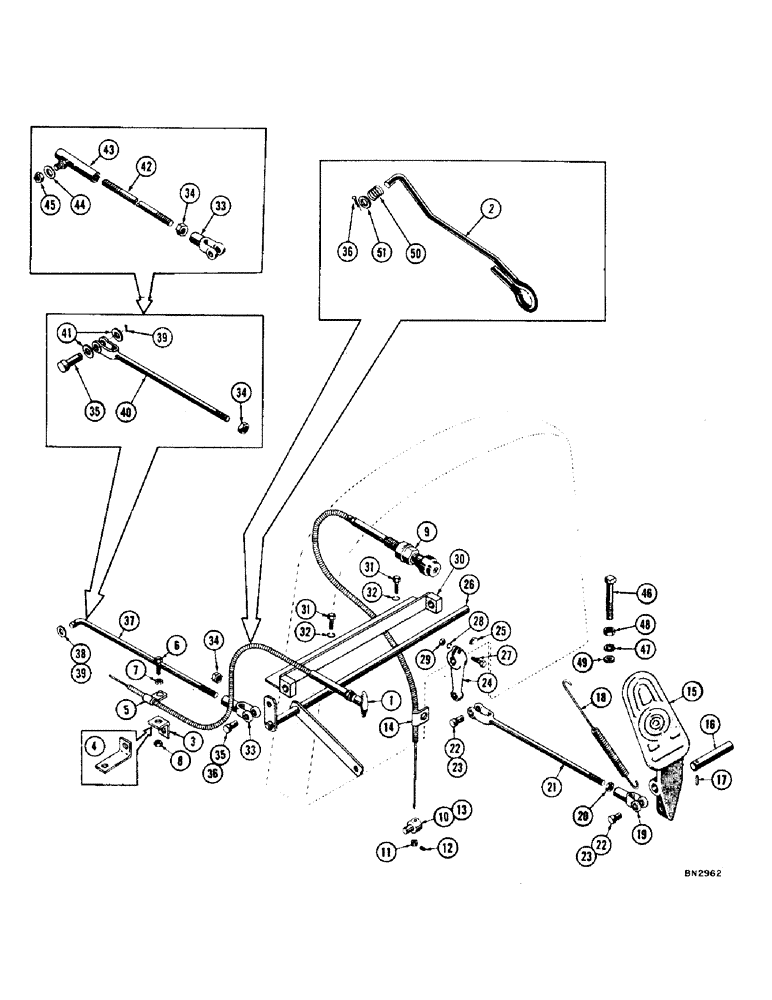

Запчасти Case 1000 (090) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

R13595

CONTROL - engine shut-off (Type I) (Order kit R3659 for service)

1шт.

2

R16902

ROD

CONTROL ROD - engine shut-off (Type II)

1шт.

3

71324

NUT

CLIP - shut-off support (Used with Type I shut-off only)

1шт.

4

R12801

BRACKET - shut-off support (Used with Type I shut-off only)

1шт.

5

51200330

CLAMP

- tube (Shut-off mt'g.) (Used with Type I shut-off only)

1шт.

6

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(49857 mt'g.) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

1шт.

9

71092

THROTTLE ASS'Y - engine hand

1шт.

10

35313

PIVOT - hand throttle

1шт.

11

34823

CHAIN LINK

STOP - pivot

1шт.

12

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, #10 - 24 x 1/4 (34823 mt'g.)

1шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- (71092 mtg.)

1шт.

15

34828

PEDAL - accelerator

1шт.

16

R17364

SHAFT

- pedal pivot

1шт.

17

49871

X

PIN - lock (R17364 mt'g.)

1шт.

18

11469

SPRING

- accelerator pedal

1шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

20

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

21

71045

ROD - foot pedal

1шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (141-3 mt'g.)

2шт.

24

71394

LEVER - accelerator linkage

1шт.

25

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(71394 mtg.) #3, 1/8" x 1/2"

1шт.

26

71250

SHAFT ASS'Y - throttle linkage

1шт.

27

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2 (71394 mt'g.)

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

1шт.

30

71252

WASHER

BRACKET ASS'Y - throttle linkage

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(71252 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

34

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

35

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (213-3 mt'g.) 5/16" x .940"

2шт.

36

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

37

NSS

NOT SOLD SEPARAT

ROD - throttle (Type I) (Order ref. #42, #43, #44, & #45 for service)

1шт.

38

195-21

WASHER,5/16"

plain (Used with Type I rod only) 5/16"

1шт.

39

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Used with Type I or Type II rods only)

1шт.

40

NSS

NOT SOLD SEPARAT

ROD - throttle (Type II) (Order ref. #42, #43, #44, & #45 for service)

1шт.

41

195-21

WASHER,5/16"

plain (Used with Type II rod only) 5/16"

2шт.

42

R14510

ROD - throttle (Type III)

1шт.

43

R14508

BALL - joint (Special type "B") (Used with Type III rod only)

1шт.

44

92-5

LOCK WASHER,5/16"

(Used with Type III rod only) 5/16"

1шт.

45

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used with Type III rod only)

1шт.

46

181-679

SCREW - square head set, 1/2 - 13 NC x 2

1шт.

47

92-8

LOCK WASHER,1/2"

1шт.

48

25-108

NUT,1/2"-13, G5

- reg. SF hex. (1/2 - 13 NC)

1шт.

49

195-18

WASHER,1/4"

- plain

1шт.

50

31220

VALVE SPRING

SPRING - (Used with R16902 control rod only)

1шт.

51

195-18

WASHER,1/4"

- plain (Used with R16902 control rod only)

1шт.

R3659

SHUT-OFF VALVE

KIT - fuel shut-off

1шт.

R16902

ROD

- fuel shut-off

1шт.

31220

VALVE SPRING

SPRING

1шт.

195-18

WASHER,1/4"

- plain

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN - cotter, 3/32" dia. x 1-1/2

1шт.
