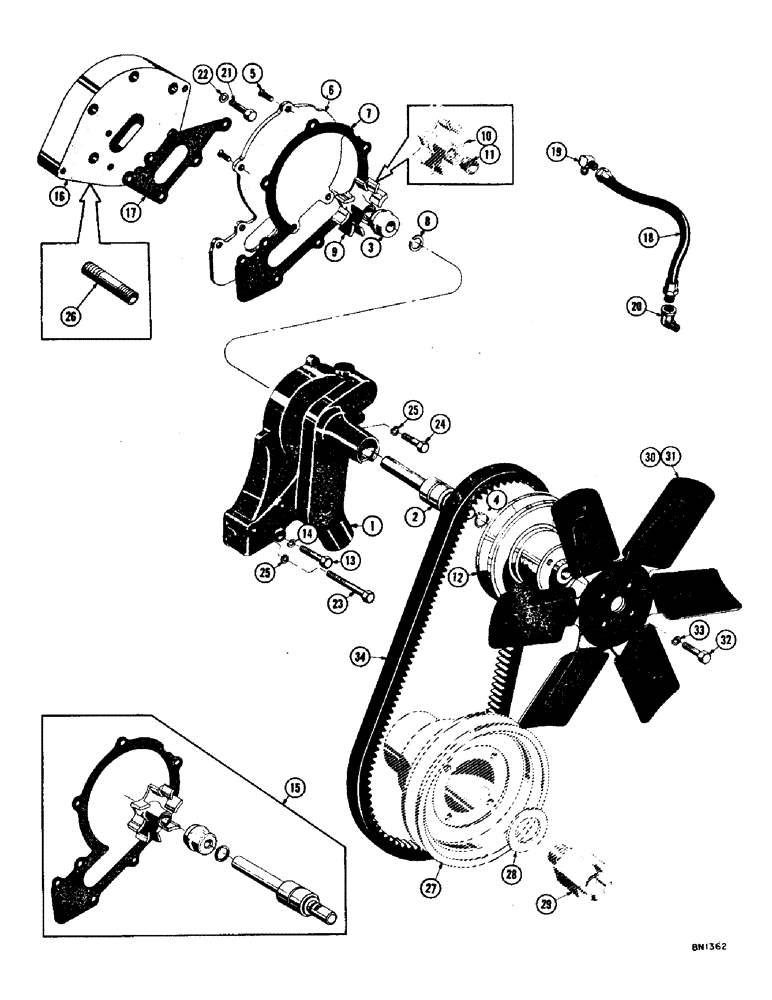

Запчасти Case 1000 (040) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE
№
Артикул
Название
Примечание
Количество
R17910
WATER PUMP
ASSY - water (Complete)
1шт.
R17908
SPARE PART ASSY - water
1шт.
1
R13471
SPARE PART BODY - water pump
1шт.
2
R17912
SHAFT
ASSY - water pump
1шт.
3
10503
SEAL ASSY.
Water pump
1шт.
4
R17913
RING, SNAP
RING SNAP Bearing and pulley
1шт.
5
10506
SCREW -, Serial Range: cover-body
4шт.
6
70858
WASHER
COVER - water pump
1шт.
7
70860
GASKET
Water pump
1шт.
8
R13473
RING, SNAP
RING SNAP Bearing seat
1шт.
9
R13475
KIT
IMPELLER & INSERT ASSY - water pump
1шт.
10
NSS
NOT SOLD SEPARAT
IMPELLER - water pump
1шт.
11
NSS
NOT SOLD SEPARAT
INSERT - impeller
1шт.
12
R17911
SPARE PART HUB - water
1шт.
13
36596
SCREW - water, Serial Range: pump-adapter
1шт.
14
92-6
LOCK WASHER,3/8"
1шт.
15
R3705
KIT
REPAIR
1шт.
16
R14404
ADAPTER - water pump
1шт.
17
70859
GASKET
SPARE PART Water, Serial Range: pump-adapter
1шт.
18
70856
HOSE
ASSY - by-pass
1шт.
19
222-774
90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT
1/2 x 3/8
1шт.
20
71837
GASKET
SPARE PART ELBOW - 90 degrees street, 3/8 NPT
1шт.
21
17387
ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF
SCREW - 1/4 - 20 NC x 1-1/4 (Adapter mt'g.)
6шт.
22
71838
GASKET
1/4 copper
6шт.
23
36596
SCREW - 3/8 - 16 NC x 2-1/8 (Pump mt'g.)
2шт.
24
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
(Pump mounting)
1шт.
25
92-6
LOCK WASHER,3/8"
3шт.
26
R13040
NIPPLE - water pump adapter
1шт.
27
REF
INSTRUCTION
PULLEY - fan drive (On crankshaft) (See figure 18, ref. #19)
1шт.
28
REF
INSTRUCTION
WASHER - crankshaft starting jaw (See figure 18, ref. #20)
1шт.
29
REF
INSTRUCTION
JAW - crankshaft starting (See figure 18, ref. #21)
1шт.
30
R12782
SPARE PART Suction (Standard tractor & dozers)
1шт.
31
R12781
SPARE PART Pusher (Terraloader)
1шт.
32
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
(Fan mt'g.)
4шт.
33
92-5
LOCK WASHER,5/16"
4шт.
34
R17745
BELT
Fan
1шт.
Выбрано товаров: 36
