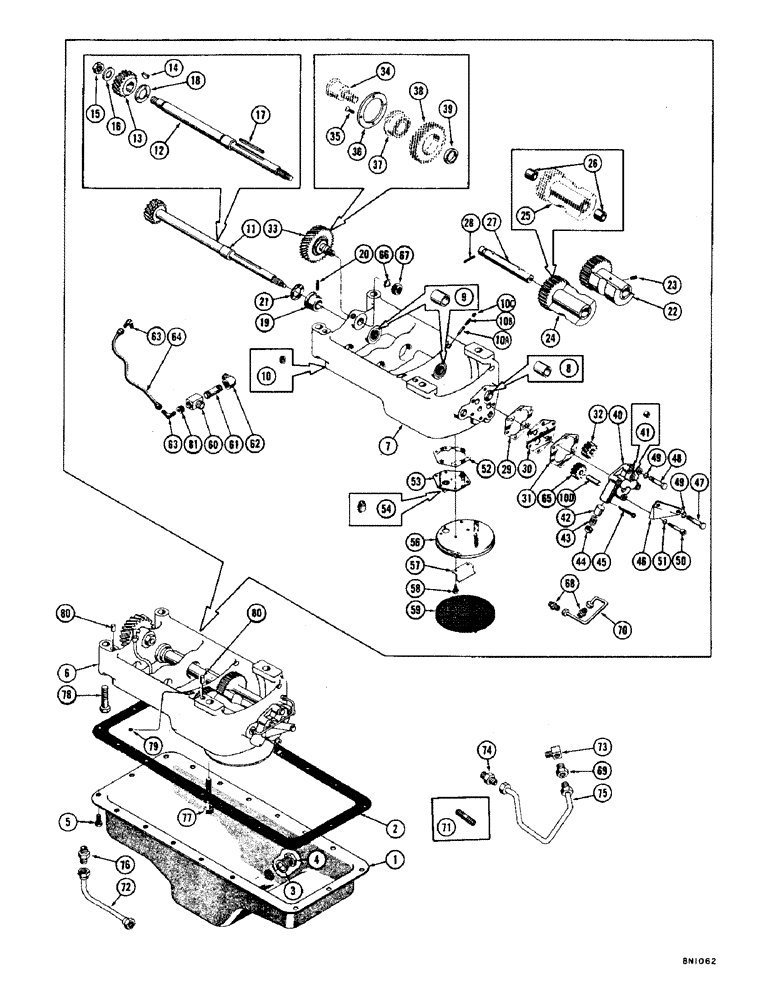

Запчасти Case 1000 (030) - LANCHESTER BALANCER, USED WITH TYPE II CRANKCASE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
72683
SPRING
PAN ASS'Y - crankcase oil
1шт.
2
72689
GASKET
- oil pan
1шт.
3
VT4520
X
GASKET - oil pan drain plug
1шт.
4
11579
NUT
PLUG - oil pan drain
1шт.
5
10139
SCREW & LOCKWASHER ASS'Y - 3/8 - 16 NC x 1 (72683 mt'g.)
18шт.
6
R14451
BALANCER ASS'Y - Lanchester
1шт.
7
R14527
HOUSING ASS'Y - counterweight drive
1шт.
NSS
NOT SOLD SEPARAT
HOUSING - counterweight drive
1шт.
8
R18666
BUSHING
1шт.
9
R18669
BUSHING
2шт.
10
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
- pipe, 3/8 NPT
2шт.
10a
R20707
PIN - bushing retaining
1шт.
10b
R20708
SPRING
1шт.
10c
221-850
PLUG,Hex Soc, 1/16"-27
- pipe, 1/16 NPT
1шт.
10d
72697
COVER
STUD - idler gear
1шт.
11
R14528
SHAFT
ASS'Y - oil pump & counterweight drive
1шт.
12
R14538
SHAFT
- oil pump & counterweight drive
1шт.
13
R13493
GEAR
- counterweight drive shaft
1шт.
14
126-115
WOODRUFF KEY,#8, 5/32" x 3/4", HT
KEY - Woodruff
1шт.
15
R11701
NUT
- lock (Gear mt'g.)
1шт.
16
73367
WIRE HARNESS
LOCK - nut
1шт.
17
NLS
NO LONGER SERVICED
KEY - square (Counterweight gear mt'g.)
1шт.
18
R14529
WASHER - thrust
1шт.
19
R14530
COLLAR - drive shaft
1шт.
20
R14533
X
PIN - groove, collar to drive shaft (Order R23224 tapper pin and R23225 nut for service)
1шт.
21
R14529
WASHER - thrust
1шт.
22
R13492
GEAR
- counterweight driver
1шт.
23
73385
GEAR
SCREW - set, drive gear
2шт.
24
R14532
GEAR ASS'Y - counterweight driven
1шт.
25
NSS
NOT SOLD SEPARAT
GEAR - driven
1шт.
26
R18667
BUSHING
2шт.
27
R14531
SHAFT ASS'Y - counterweight driven
1шт.
28
138-102
LOCK PIN,3/16" x 1 3/4", Slotted
PIN, (R14531 mounting) 3/16" x 1 3/4", Slotted
1шт.
29
73390
LINE
- oil pump cover
1шт.
30
R11038
COVER - oil pump body
1шт.
31
73392
GASKET - oil pump, Serial Range: body-cover
1шт.
32
R11037
GEAR - oil pump drive
1шт.
33
R20485
GEAR & STUD ASS'Y - idler
1шт.
34
NSS
NOT SOLD SEPARAT
SHAFT - idler
1шт.
35
171-97
SCREW,#10 - 24 x 1/2"
- #10 - 24 NC x 1/2
4шт.
36
73373
PLATE - bearing retainer
1шт.
37
NSS
NOT SOLD SEPARAT
BEARING - ball
1шт.
38
NSS
NOT SOLD SEPARAT
GEAR - idler
1шт.
39
73362
HOOD
SPACER - idler gear
1шт.
R13860
BODY ASS'Y - oil pump
1шт.
40
R14454
BODY ASS'Y - oil pump (Order R13860 for service)
1шт.
NSS
NOT SOLD SEPARAT
BODY - oil pump
1шт.
41
NSS
NOT SOLD SEPARAT
BUSHING - oil pump body
1шт.
42
R13545
X
VALVE - oil pressure relief
1шт.
43
30325
SPRING - relief valve
1шт.
44
VT3221
X
RETAINER - oil relief spring
1шт.
45
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
46
73396
SHIELD - oil relief valve
1шт.
47
73398
SCREW - oil pump body
3шт.
48
73397
CABLE
SCREW - oil pump body
2шт.
49
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
50
R12721
SCREW - oil pump body
1шт.
51
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
52
10395
GASKET - oil inlet cover to housing
1шт.
53
73399
CLIP
COVER ASS'Y - oil inlet
1шт.
NSS
NOT SOLD SEPARAT
COVER - oil inlet
1шт.
54
10403
TUBE - oil inlet suction
1шт.
55
RESERVED
1шт.
56
73400
PIN
FRAME - oil inlet strainer
1шт.
57
10398
SPACER - oil inlet strainer
1шт.
58
11497
SCREW & LOCKWASHER ASS'Y - (73400 mt'g.)
6шт.
59
73401
SCREEN ASS'Y - oil strainer
1шт.
60
72685
BUSHING
TEE - 3/8 NPT (Counterweight housing center)
1шт.
61
R11971
NIPPLE - pipe (72685 tee to 74232 elbow)
1шт.
62
74232
ELBOW - 90 degree street
1шт.
63
222-762
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT
- counterweight housing to idler gear boss 90º, 7/16"-20, 45º Fl x 1/8" NPT
2шт.
64
72684
PLASTIC-RUBBER TUBE
TUBE ASS'Y - counterweight housing to counterweight bearing
1шт.
65
73395
GEAR - oil pump driven
1шт.
66
R11838
X
WASHER - lock, idler gear stud
1шт.
67
R11701
NUT
- hex. idler gear stud
1шт.
68
R11839
CONNECTOR
2шт.
70
R11836
TUBE ASS'Y - counterweight housing to counterweight bearing
1шт.
71
73376
SHAFT
NIPPLE - pipe, 3/8 NPT x 2-1/4
1шт.
72
73368
CLIP
TUBE ASS'Y counterweight housing to front cap
1шт.
73
217-22
ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male
- 90 degree street, 3/8 NPT
1шт.
74
R11705
CONNECTOR -, Serial Range: tube-crankcase
1шт.
75
R11706
TUBE ASS'Y - counterweight, Serial Range: housing-crankcase
1шт.
76
73369
PANEL
CONNECTOR - front bearing cap
1шт.
77
73371
X
SCREW - 5/8 - 11 NC x 4 (Place) (Housing, Serial Range: rear-crankcase)
2шт.
78
73372
CONTROL
SCREW - 5/8 - 11 NC x 5-1/4 (Place) (Housing, Serial Range: front-crankcase)
2шт.
79
30395
PLUG - pipe, 1/8 NPT (Counterweight drive housing
2шт.
80
R11693
PIN - dowel, 3/8 x 3/4, Serial Range: (Housing-crankcase)
2шт.
81
74231
BUSHING - reducer (To 72685 tee)
1шт.
R11702
RING - seal (Not shown)
1шт.
R11703
NUT - (Not shown)
1шт.
