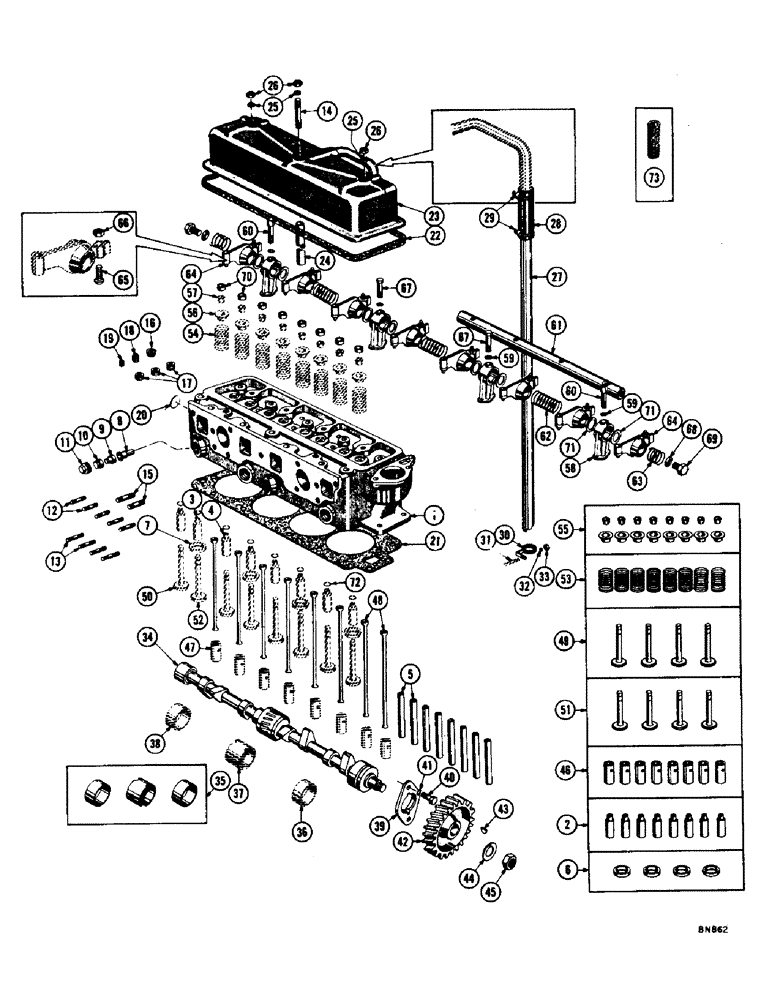

Запчасти Case 1000 (022) - CYLINDER HEAD, VALVES, AND CAMSHAFT (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
72633
SCREEN
SPARE PART HEAD ASSY - cylinder (Stripped)
1шт.
73454
X
HEAD ASSY - cylinder (With valves), Serial Range: (Optional-72633)
1шт.
2
6745
FITTING
GUIDE KIT - valve
1шт.
3
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve stem
4шт.
4
NSS
NOT SOLD SEPARAT
GUIDE - intake valve stem
4шт.
6
R2260
SPARE PART Exhaust valve seat
1шт.
7
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat
4шт.
8
R11831
SPARE PART ASSY - energy cell
4шт.
9
72638
SPARE PART Energy
1шт.
10
72639
SPARE PART Energy cell
4шт.
11
72640
WASHER
PLUG - energy cell retainer
4шт.
12
10697
FITTING
3/8-16 NC x 1-7/8 (Manifold to cyl. head)
5шт.
13
NLS
NO LONGER SERVICED
STUD - 3/8 - 16 NC x 2-1/4 (Manifold to cyl. head)
4шт.
14
11159
SPARE PART 3/8"-16 NC x 5-1/2 (72674 mt'g.)
1шт.
15
30166
SPARE PART 3/8"-16 NC x 2 (Manifold to cyl. head)
2шт.
16
30395
PLUG - pipe (Oil hole in head)
1шт.
17
10772
LOCK WASHER
PLUG - 3/4 NPT pipe (Clamp outlet holes in head)
3шт.
18
221-13
PLUG,Sq Hd, 3/8"-18
NPT pipe (Rear of cyl. head)
1шт.
19
VT3383
X
PLUG - 1/8 NPT fuse (Cyl. head)
1шт.
20
10775
LOCK WASHER
Core hole (Cyl. head)
1шт.
21
R18626
X
GASKET - cylinder, Serial Range: head-crankcase
1шт.
22
72691
CYLINDER HEAD GASKET
Valve cover to cyl. head
1шт.
23
72674
PIN
COVER ASSY - valve
1шт.
25
30257
GASKET
Valve cover studs
3шт.
26
9635082
NUT,5/16" - 18, Gr 5
(72674 mt'g.)
3шт.
27
R17264
TUBE - road draft
1шт.
28
72677
SLEEVE
SPARE PART HOSE - road draft tube
1шт.
29
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
Road draft tube
1шт.
30
72682
CLIP - road draft tube
1шт.
31
REF
INSTRUCTION
STUD - (72682 mt'g.) (See figure 8, ref. #25)
1шт.
32
92-6
LOCK WASHER,3/8"
(72682 mt'g.)
1шт.
33
9635082
NUT,5/16" - 18, Gr 5
(72682 mt'g.)
1шт.
34
72664
SPARE PART
1шт.
35
R4291
SPARE PART KIT - camshaft
1шт.
36
NSS
NOT SOLD SEPARAT
BUSHING - camshaft front
1шт.
37
NSS
NOT SOLD SEPARAT
BUSHING - camshaft center
1шт.
38
NSS
NOT SOLD SEPARAT
BUSHING - camshaft rear
1шт.
39
NLS
NO LONGER SERVICED
Camshaft thrust
1шт.
40
11588
NUT
SCREW - 3/8"-16 NC x 7/8 (11587 mt'g.)
2шт.
41
193-10
LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN
(11587 mt'g.)
2шт.
42
72665
GEAR - camshaft timing (Standard)
1шт.
R16641
GEAR - camshaft timing (.003" undersize)
1шт.
R16640
GEAR - camshaft timing (.002" undersize)
1шт.
R16639
GEAR - camshaft timing (.001" undersize)
1шт.
R16636
GEAR - camshaft timing (.001" oversize)
1шт.
R16637
GEAR - camshaft timing (.002" oversize)
1шт.
R16638
GEAR - camshaft timing (.003" oversize)
1шт.
43
10776
LOCK WASHER
KEY - Woodruff (Timing gear)
1шт.
44
10447
SEALING RING COLLAR
LOCK, camshaft timing gear
1шт.
45
10718
FITTING
NUT - camshaft timing gear
1шт.
46
6742
TEE
TAPPET KIT - valve
1шт.
47
NSS
NOT SOLD SEPARAT
TAPPET - valve
8шт.
48
72670
SPARE PART Valve
8шт.
49
6733
SPARE PART Intake
1шт.
50
NSS
NOT SOLD SEPARAT
VALVE - intake
4шт.
51
6736
SPINDLE
Exhaust
1шт.
52
NSS
NOT SOLD SEPARAT
VALVE - exhaust
4шт.
53
6738
SPRING KIT
Valve
1шт.
54
NSS
NOT SOLD SEPARAT
SPRING - valve
8шт.
55
6740
HYDRAULIC CYLINDER
SEAT & LOCK KIT - valve
2шт.
56
NSS
NOT SOLD SEPARAT
RETAINER - valve spring
4шт.
57
NSS
NOT SOLD SEPARAT
LOCK - valve spring retaining
8шт.
58
72637
SUPPORT - rocker arm shaft
4шт.
59
195-29
WASHER,7/16"
(72637 mt'g.)
4шт.
60
11152
HARNESS
SCREW - 7/16"-14 NC x 3/8"-16 NC (72637 mt'g.)
2шт.
61
72676
SPACER
SHAFT - rocker arm
1шт.
62
72680
SCREW
SPARE PART SPRING - rocker arm shaft (Long)
3шт.
63
30229
BULB
SPRING - rocker arm shaft (Short)
2шт.
65
72025
SCREW - rocker arm adjusting
1шт.
66
72024
HYD CONNECTOR
SPARE PART NUT - lock, rocker arm assy
1шт.
67
30240
SCREW - 7/16 - 14 NC x 4 (72637 mt'g.)
2шт.
68
NLS
NO LONGER SERVICED
Copper asbestos
2шт.
69
72672
BODY
SPARE PART PLUG - rocker arm shaft
2шт.
71
72673
GASKET
SPACER - rocker arm
8шт.
73
R17265
SPARE PART Road draft tube
1шт.
Выбрано товаров: 80
