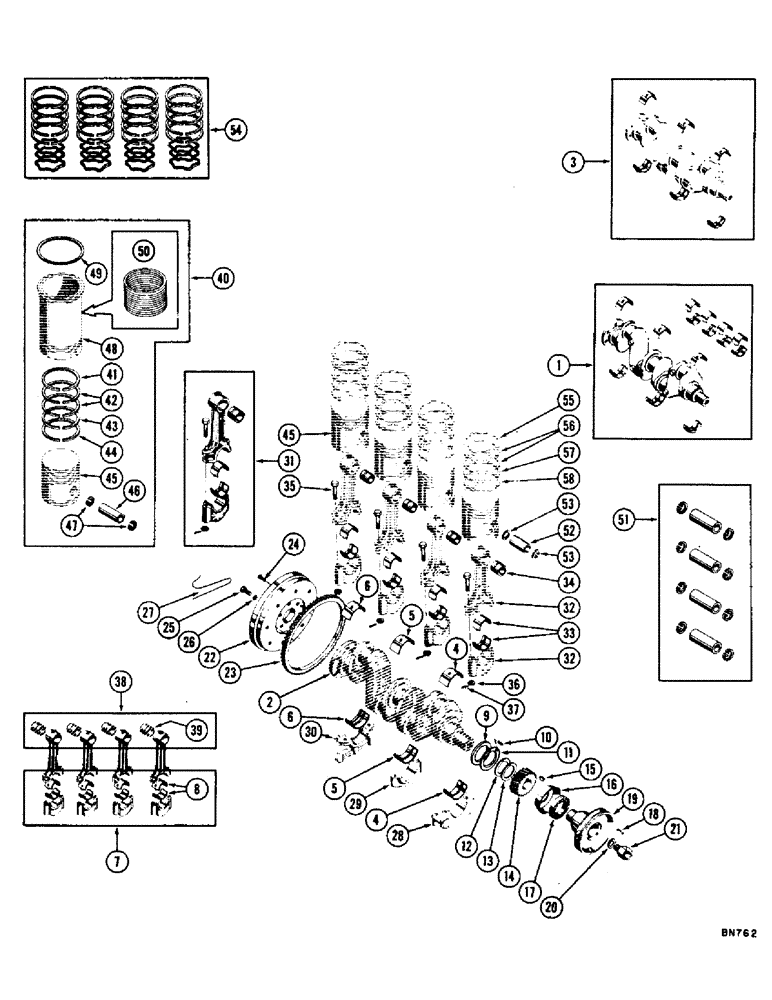

Запчасти Case 1000 (018) - FLYWHEEL, CRANKSHAFT, AND PISTONS (01) - ENGINE

1

6725

CRANKSHAFT & BEARING ASS'Y

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3

R2525

SPARE PART BEARING KIT - main (Standard)

1шт.

R3209

SPARE PART BEARING KIT - main (.002" undersize) (Optional)

1шт.

4

72643

SPARE PART ASSY - front main (Upper & lower) (Standard) (For service, order kit R2525)

1шт.

R3223

BEARING

ASSY - front main (Upper & lower) (.002" undersize) (Optional)

1шт.

5

72644

SEAL PROTECTION

SPARE PART BEARING ASSY - center main (Upper & lower) (Standard) (For service, order kit R2525)

1шт.

R3224

SPARE PART BEARING ASSY - center main (Upper & lower) (.002" undersize) (Optional)

1шт.

6

72645

SPARE PART ASSY - rear main (Upper & lower) (Standard) (For service, order kit R2525)

1шт.

R3225

SPARE PART ASSY - rear main (Upper & lower) (.002" undersize) (Optional)

1шт.

7

R3267

BEARING

KIT - connecting rod (Standard) (replaces 6703)

1шт.

6704

VALVE

BEARING KIT - connecting rod (.002" undersize) (Optional)

1шт.

8

R3267

BEARING

ASSY - connecting rod (Upper & lower) (Standard)

4шт.

R3272

SPARE PART ASSY - connecting rod (Upper & lower) (.002" undersize) (Optional)

4шт.

9

72631

SPARE PART Crankshaft thrust (Rear)

1шт.

10

VT3364

X

PIN - dowel, rear thrust washer

1шт.

11

11293

BALL BEARING

Crankshaft thrust (Front)

1шт.

12

72646

SPARE PART Crankshaft thrust thrust (.002")

1шт.

13

72648

SPARE PART Crankshaft thrust (.008")

1шт.

14

R13664

SPARE PART Crankshaft timing (Standard)

1шт.

R16617

GEAR - crankshaft timing (.003" undersize), Serial Range: (Optional-R13664)

1шт.

R16616

GEAR - crankshaft timing (.002" undersize), Serial Range: (Optional-R13664)

1шт.

R16615

GEAR - crankshaft timing (.001" undersize), Serial Range: (Optional-R13664)

1шт.

R16612

GEAR - crankshaft timing (.001" oversize), Serial Range: (Optional-R13664)

1шт.

R16613

GEAR - crankshaft timing (.002" oversize), Serial Range: (Optional-R13664)

1шт.

R16614

GEAR - crankshaft timing (.003" oversize), Serial Range: (Optional-R13664)

1шт.

15

10777

LOCK WASHER

KEY - Woodruff (Timing gear)

2шт.

16

11111

WEDGE

THROWER - crankshaft oil

1шт.

17

10681

PIPE FITTING

Dust, fan drive pulley

1шт.

18

11170

PLUG - crankshaft pulley keyway

1шт.

19

73429

MUFFLER

SPARE PART PULLEY - fan drive

1шт.

20

R15595

WASHER - crankshaft starting jaw

1шт.

21

10449

SEALING RING COLLAR

JAW - crankshaft starting

1шт.

22

R15758

FLYWHEEL ASSY

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

R15815

PIN - locating (Not shown)

1шт.

24

R20951

SPARE PART Dowel (.003" oversize), Serial Range: (Optional-R20952)

2шт.

R20952

PIN - dowel (.010" oversize), Serial Range: (Optional-R20951)

2шт.

25

R15764

BOLT - place

6шт.

26

92-10

LOCK WASHER,5/8"

6шт.

27

72700

SPARE PART

WIRE - lock 18" long

1шт.

28

REF

INSTRUCTION

CAP - crankshaft front bearing (See figure 8, ref. #5)

1шт.

29

REF

INSTRUCTION

CAP - crankshaft center bearing (See figure 8, ref. #6)

1шт.

30

REF

INSTRUCTION

CAP - crankshaft rear bearing (See figure 8, ref. #7)

1шт.

31

72649

EXCHANGE CONROD

ASSY

4шт.

32

NSS

NOT SOLD SEPARAT

ROD & CAP - connecting

1шт.

33

REF

INSTRUCTION

BEARING - connecting (See ref. #7)

2шт.

34

REF

INSTRUCTION

BUSHING - piston pin (See ref. #38)

1шт.

35

72692

SPARE PART Connecting rod

2шт.

36

72694

BOLT

SPARE PART NUT - connecting rod

2шт.

37

72698

SPARE PART PIN - connecting rod bolt

2шт.

38

6716

RING

KIT - piston pin

1шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - piston pin

4шт.

40

6753

PISTON

KIT - piston & cylinder liner (With rings)

1шт.

17487

STRAP

CYLINDER LINER & PISTON ASSY

4шт.

41

REF

INSTRUCTION

RING - piston (First groove) (See ref. #54)

1шт.

42

REF

INSTRUCTION

RING - piston (Second & third grooves) (See ref. #54)

2шт.

43

REF

INSTRUCTION

RING - piston (Fourth groove) (See ref. #54)

1шт.

44

REF

INSTRUCTION

RING - piston (Fifth groove) (See ref. #54)

1шт.

45

NSS

NOT SOLD SEPARAT

PISTON

1шт.

46

REF

INSTRUCTION

PIN - piston (See ref. #51)

1шт.

47

REF

INSTRUCTION

RING - piston pin retaining (See ref. #53)

2шт.

48

NSS

NOT SOLD SEPARAT

LINER - cylinder

1шт.

49

72687

BEARING

SPARE PART PACKING - cylinder liner

2шт.

50

17485

COVER

SHIM KIT - cylinder liner

1шт.

51

6756

TEE

KIT - piston pin (Standard)

1шт.

R3332

KIT - piston pin (.003" oversize)

1шт.

R3333

KIT - piston pin (.005" oversize)

1шт.

52

72678

PIN - piston (Standard)

4шт.

R16964

SPARE PART PIN - piston (.003" oversize)

4шт.

R16965

SPARE PART PIN - piston (.005" oversize)

4шт.

53

72681

RING - piston pin retaining

8шт.

54

6696

RING

KIT - piston (2 in 1)

1шт.

55

NSS

NOT SOLD SEPARAT

RING - piston (First groove)

4шт.

56

NSS

NOT SOLD SEPARAT

RING - piston (Second & third grooves)

8шт.

57

NSS

NOT SOLD SEPARAT

RING - piston (Fourth groove)

4шт.

58

NSS

NOT SOLD SEPARAT

RING - piston (Fifth groove)

4шт.
