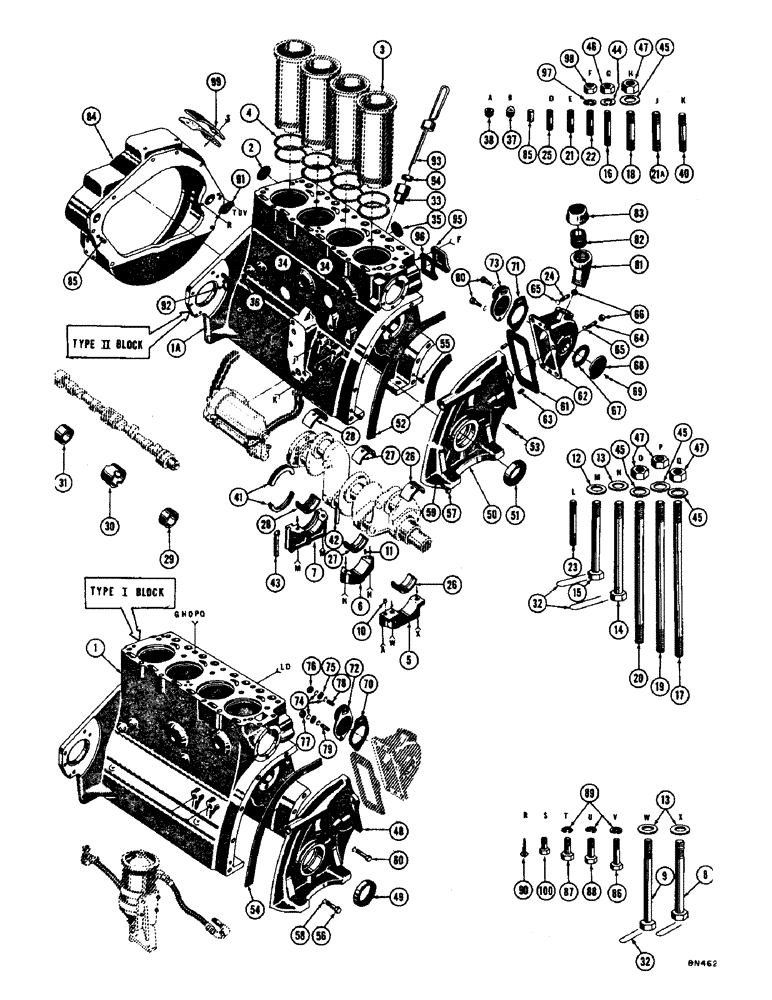

Запчасти Case 1000 (008) - ENGINE BLOCK AND RELATED PARTS (01) - ENGINE

1

72630

CYLINDER & CRANKCASE ASSY - ("S" assy) (Optional to 72629) (Type I - for engines with vertical type full flow filter)

1шт.

72629

CARBURETOR

CYLINDER & CRANKCASE ASSY - ("A" assy) (Type I - engines with vertical type full flow filters) (Stripped block)

1шт.

1a

R14828

SPARE PART CYLINDER & CRANKCASE ASSY - ("S" assy) (Optional to R14829) (Type II - for engines with horizontal type full flow filter)

1шт.

R14829

SPARE PART CYLINDER & CRANKCASE ASSY - ("A" assy) (Type II - for engines with horizontal type full flow filters) (Stripped block)

1шт.

2

41-32

PLUG,Exp, 2"

1шт.

3

REF

INSTRUCTION

LINER - cylinder (See figure 18, ref. #40)

4шт.

4

REF

INSTRUCTION

PACKING - cylinder (See figure 18, ref. #49)

8шт.

5

72632

CAP - crankshaft front bearing

1шт.

6

72634

SPARE PART Crankshaft center bearing

1шт.

7

72628

REPAIR KIT

CAP & FILLER BLOCK - crankshaft rear bearing

1шт.

8

11154

HARNESS

5/8"-11 NC x 3-1/4 (72632 mt'g.)

1шт.

9

72623

PIN

SPARE PART SCREW - 5/8 - 11 NC x 4 (72632 mt'g)

1шт.

10

10294

BUSHING

DOWEL - ring (72632 mt'g.)

1шт.

11

30271

SPARE PART Dowel (Bearing, Serial Range: caps-crankcase)

5шт.

12

71818

SPARE PART Plain (72628 mt'g.)

2шт.

13

71819

GEAR

SPARE PART WASHER - plain (72632 & 72634 mt'g.)

4шт.

14

11154

HARNESS

5/8"-11 NC x 4-1/2 (72634 mt'g.)

2шт.

15

11155

CABLE

5/8"-11 NC x 3-1/4 (72628 mt'g.)

2шт.

16

VT4501

SPARE PART STUD - 3/8 - 16 NC x 1-11/16 (Cylinder, Serial Range: head-crankcase)

2шт.

17

11157

SPARE PART 9/16"-12/18 x 7-1/4 (Cylinder, Serial Range: head-crankcase)

6шт.

18

71918

SPARE PART 9/16"-12/18 x 2 (Cylinder, Serial Range: head-crankcase)

5шт.

19

11262

HOSE

STUD - 9/16 - 12/18 x 7-1/8 (Cylinder, Serial Range: head-crankcase)

4шт.

20

71861

SPARE PART 9/16"-12/18 x 6-13/16 (Cylinder, Serial Range: head-crankcase)

2шт.

21

VT4508

SPARE PART STUD - 3/8 - 16 NC x 1-1/4 (Generator bracket to crankcase) (Used in type 1 crankcase only)

2шт.

21a

R15761

STUD - 1/2 - 13 NC x 2 (Generator bracket to crankcase) (Used in type II crankcase only)

2шт.

22

G11204

STUD

3/8"-16 NC x 1-3/8 (Water inlet, Serial Range: elbow-crankcase)

2шт.

23

10552

BOOM

STUD - 5/16"-18 NC x 2-1/8 (Injection, Serial Range: pump-crankcase)

2шт.

24

VT3675

X

STUD - 3/8"-16 NC x 1-1/2, Serial Range: (Adapter-crankcase)

2шт.

25

30333

SPARE PART STUD - 5/16" 18 NC x 1-1/8 (Road draft tube mt'g.)

1шт.

26

REF

INSTRUCTION

BEARING ASSY - front main (See figure 18, ref. #4)

1шт.

27

REF

INSTRUCTION

BEARING ASSY - center main (See figure 18, ref. #5)

1шт.

28

REF

INSTRUCTION

BEARING ASSY - rear main (See figure 18, ref. #6)

1шт.

29

REF

INSTRUCTION

BUSHING - camshaft (See figure 22, ref. #35)

1шт.

30

REF

INSTRUCTION

BUSHING - camshaft (See figure 22, ref. #35)

1шт.

31

REF

INSTRUCTION

BUSHING - camshaft (See figure 22, ref. #35)

1шт.

32

30272

WIRE - locking, 11" long (Bearing capscrews)

3шт.

33

VT3369

SPARE PART SUPPORT - oil gauge rod

1шт.

34

10771

LOCK WASHER

PLUG - Hubbard, 1-5/8" dia. (Heater holes)

2шт.

35

41-32

PLUG,Exp, 2"

2шт.

36

VT3395

X

PLUG - pipe, 1/4 NPT (Oil gallery)

2шт.

37

221-12

PLUG,Sq Hd, 1/4"-18

Pipe, (Crankcase holes)

5шт.

38

72626

PISTON

PLUG - pipe, 1/4 NPT (Front bearing cap)

1шт.

39

72625

SET PISTON RINGS+0.8

SPARE PART SPACER - front bearing cap (Not shown)

1шт.

40

R11716

STUD - 7/16 - 14 NC x 2 (Filter base to crankcase) (Used in type II crankcase only)

5шт.

41

D52296

SEAL

Oil, crankshaft rear bearing

2шт.

42

11149

SEAL

Rear bearing filler block, LH

1шт.

43

11150

SEAL

Rear bearing filler block, RH

1шт.

44

92-6

LOCK WASHER,3/8"

(Cylinder head to crankcase)

2шт.

45

R16733

SPARE PART Plain (Cylinder, Serial Range: head-crankcase)

15шт.

46

25-106

NUT,3/8"-16, G5

Hex, (Cylinder head to crankcase)

2шт.

47

NLS

NO LONGER SERVICED

NUT - hex. (9/16"-18 NF) (Cylinder, Serial Range: head-crankcase)

15шт.

48

72667

SPARE PART COVER ASSY - timing gear (Used with type I crankcase only)

1шт.

49

10670

FITTING

Crankshaft oil & dust

1шт.

50

R11692

COVER ASSY - timing gear (Used with type II crankcase only)

1шт.

51

10670

FITTING

Crankshaft oil & dust

1шт.

52

REF

INSTRUCTION

GASKET - gear cover to crankcase (See ref. #54)

1шт.

53

VT3675

X

STUD - 3/8 - 16 NC x 1-1/2

3шт.

54

72688

SPARE PART Gear, Serial Range: cover-crankcase

1шт.

55

R11693

PIN - dowel (Gear cover mt'g.)

2шт.

56

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(72667 mtg. only)

8шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(R11692 mtg. only)

5шт.

58

92-6

LOCK WASHER,3/8"

(72667 mt'g. only)

8шт.

59

92-6

LOCK WASHER,3/8"

(R11692 mt'g. only)

6шт.

60

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER ASSY - 3/8:-16 NC x 1-1/4 (R11692 mt'g. only)

2шт.

61

30070

PULLEY

Adapter to gear cover

1шт.

62

33875

TUBE NUT

PIPE FITTING Hydraulic pump

1шт.

63

R11693

PIN - dowel (33875 mt'g.)

2шт.

64

VT3675

X

STUD - 3/8 - 16 NC x 1-1/2 (33875 mt'g.)

3шт.

65

92-6

LOCK WASHER,3/8"

5шт.

66

25-106

NUT,3/8"-16, G5

Hex

5шт.

67

30072

SPARE PART Adapter hole cover

1шт.

68

30073

COVER - adapter hole

1шт.

69

172-97

SPARE PART SCREW - flat head machine #10 - 32 x 1/2 (30073 mt'g.)

4шт.

70

VT3694

X

GASKET - hydraulic pump hole cover (Used with type I crankcase only)

1шт.

71

10480

SPARE PART Hydraulic pump hole cover (Used with type II crankcase only)

1шт.

72

10155

TOOL

COVER - hydraulic pump hole (Used with type I crankcase only)

1шт.

73

R11735

COVER - hydraulic pump hole (Used with type II crankcase only)

1шт.

74

492-11038

LOCK WASHER,3/8"

WASHER - lock (10155 mt'g. only)

4шт.

75

495-21044

WASHER,3/8"

(10155 mt'g. only)

2шт.

76

VT4505

SPARE PART NUT - hex. (3/8 - 16 NC) (10155 mt'g. only)

1шт.

77

25-106

NUT,3/8"-16, G5

Hex, (10155 mt'g. only)

1шт.

78

11262

HOSE

STUD - 3/8"- 16 NC x 1-1/8 (10155 mt'g. only)

1шт.

79

11163

STUD - 3/8"- 16 NC x 1-3/4 (10155 mt'g. only)

1шт.

80

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER ASSY - -16 NC x 1-1/4 (R11735 mt'g. only) 3/8"

2шт.

81

33877

ROLL PIN

ELBOW - 45 degree street (Oil filler)

1шт.

82

221-260

HYD CONNECTOR

NIPPLE - pipe (Oil filler)

1шт.

83

10406

SPARE PART CUP ASSY - oil filler

1шт.

84

R16438

HOUSING - flywheel

1шт.

85

30327

PIN - dowel (R16438 mt'g.)

2шт.

86

NLS

NO LONGER SERVICED

SCREW - 3/8"-16 NC x 1-5/8 (R16438 mt'g.)

4шт.

87

10295

BUSHING

SCREW - 3/8"-16 NC x 1-1/8 (R16438 mt'g.)

2шт.

88

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R16438 mt'g.)

2шт.

89

92-6

LOCK WASHER,3/8"

9шт.

90

10135

SCREW - drive #10-32 x 3/4

1шт.

91

73405

CONTROL VALVE

SPARE PART COVER - flywheel pointer

1шт.

92

11073

X

DRAINCOCK/TAP SUPPLY COCK - cylinder water drain

1шт.

93

11132

KIT

ROD ASSY - oil gauge

1шт.

94

10416

FELT - oil gauge rod

1шт.

95

70891

COVER - cylinder water inlet

1шт.

96

10679

PIPE FITTING

GASKET - water inlet cover

1шт.

97

92-6

LOCK WASHER,3/8"

2шт.

98

25-106

NUT,3/8"-16, G5

Hex

2шт.

99

R15759

COVER ASSY - flywheel

1шт.

100

33865

SPARE PART HHCS - 1/4"-20 NC x 1/2 (R15759 mt'g.)

2шт.
