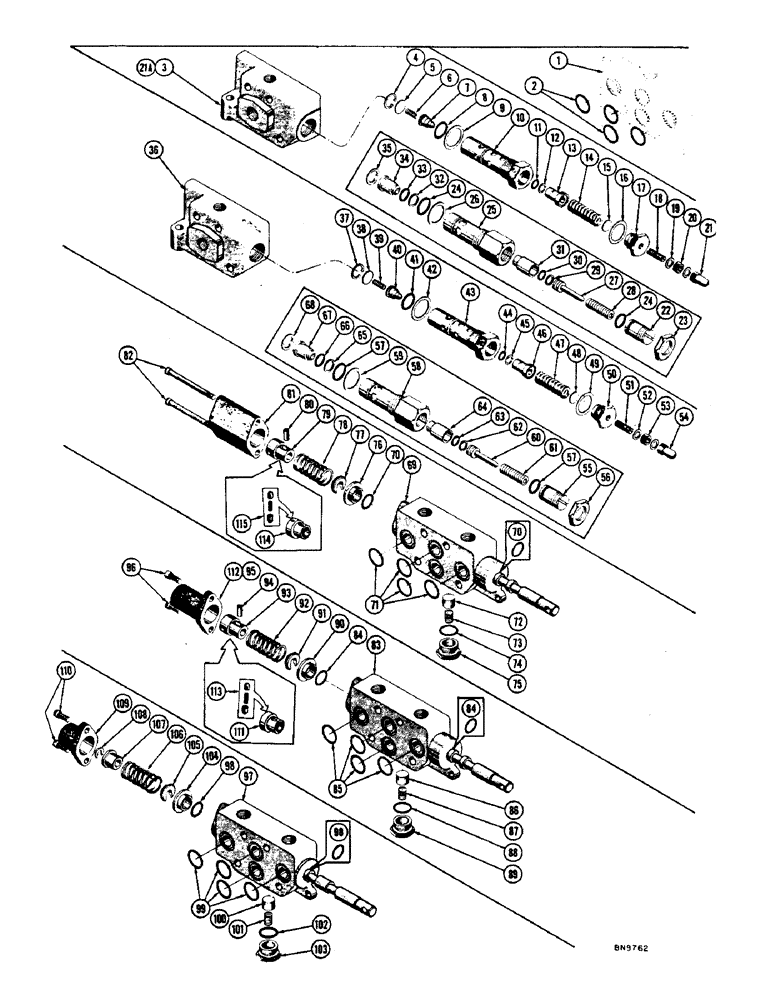

Запчасти Case 1000 (294) - EQUIPMENT CONTROL VALVE SECTIONS (07) - HYDRAULIC SYSTEM

23169

PLUG

SECTION ASS'Y - valve end (Order R14273 for service) (See figure 286 for breakdown)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

39026

SECTION ASS'Y - valve end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

09018AB

SEAL - "O" RING

4шт.

23128

HYDRAULIC HOSE

SECTION ASS'Y - valve end (Order D23813 for service)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

R11048

CARTRIDGE ASS'Y - relief valve (Order R14175 for service)

1шт.

4

23138

O-RING

RING - snap

1шт.

5

23144

THREADED TIE-ROD

WASHER - valve

1шт.

6

23137

VALVE SPRING

SPRING - relief valve

1шт.

7

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

8

08377AB

SEAL - "O" ring

1шт.

9

23146

WASHER

- fibre

1шт.

10

23133

HYDRAULIC HOSE

SHELL - valve cartridge

1шт.

11

VT2983

X

SEAL - "O" ring

1шт.

12

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup

1шт.

13

23135

HYDRAULIC HOSE

SEAT - valve

1шт.

14

23136

SPRING

- relief valve

1шт.

15

23143

WASHER

- relief valve

1шт.

16

23148

SEAL

WASHER - fibre

1шт.

17

23139

GASKET

CAP - valve

1шт.

18

23140

STUD

SCREW - adjustable

1шт.

19

23150

WASHER

- copper

2шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam

1шт.

21

NLS

NO LONGER SERVICED

NUT - cap

1шт.

D23813

SECTION ASS'Y - valve end

1шт.

21a

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

R14175

CARTRIDGE ASS'Y - relief valve

1шт.

22

R12506

SCREW - spring adjusting

1шт.

23

R12507

LOCK NUT

- locking

1шт.

24

08377AB

SEAL - "O" ring

2шт.

25

R12505

SHELL - cartridge

1шт.

26

23146

WASHER

- fibre

1шт.

27

R12508

PLUNGER - displacement

1шт.

28

23136

SPRING

- compression

1шт.

29

R12509

RING

- backup

1шт.

30

09787AB

SEAL - "O" ring

1шт.

31

R12510

SEAT

- floating

1шт.

32

R12512

OIL SEAL

RING - backup

1шт.

33

A11027

GASKET

SEAL - "O" ring

1шт.

34

R12511

POPPET

1шт.

35

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

39030

ARM

SECTION ASS'Y - valve end (Order R14271 for service) (See figure 286 for breakdown)

1шт.

36

39024

BODY - valve end section

1шт.

R11048

CARTRIDGE ASS'Y - relief valve (Order R14175 for service)

1шт.

37

23138

O-RING

RING - snap

1шт.

38

23144

THREADED TIE-ROD

WASHER - valve

1шт.

39

23137

VALVE SPRING

SPRING - relief valve

1шт.

40

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

41

08377AB

SEAL - "O" ring

1шт.

42

23146

WASHER

- fibre

1шт.

43

23133

HYDRAULIC HOSE

SHELL - valve cartridge

1шт.

44

VT2983

X

SEAL - "O" ring

1шт.

45

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup

1шт.

46

23135

HYDRAULIC HOSE

SEAT - valve

1шт.

47

23136

SPRING

- relief valve

1шт.

48

23143

WASHER

- relief valve

1шт.

49

23148

SEAL

WASHER - fibre

1шт.

50

23139

GASKET

CAP - valve

1шт.

51

23140

STUD

SCREW - adjustable

1шт.

52

23150

WASHER

- copper

2шт.

53

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam

1шт.

54

NLS

NO LONGER SERVICED

NUT - cap

1шт.

R14175

CARTRIDGE ASS'Y - relief valve

1шт.

55

R12506

SCREW - spring adjusting

1шт.

56

R12507

LOCK NUT

- locking

1шт.

57

08377AB

SEAL - "O" ring

2шт.

58

R12505

SHELL - cartridge

1шт.

59

23146

WASHER

- fibre

1шт.

60

R12508

PLUNGER - displacement

1шт.

61

23136

SPRING

- compression

1шт.

62

R12509

RING

- backup

1шт.

63

09787AB

SEAL - "O" ring

1шт.

64

R12510

SEAT

- floating

1шт.

65

R12512

OIL SEAL

RING - backup

1шт.

66

A11027

GASKET

SEAL - "O" ring

1шт.

67

R12511

POPPET

1шт.

68

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

39027

SECTION ASS'Y - valve center

1шт.

69

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order 39027 for service)

1шт.

70

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

71

09018AB

SEAL - "O" ring

4шт.

72

39006

X

POPPET - check

1шт.

73

39008

SPRING - check valve

1шт.

74

08346AB

SEAL - "O" ring

1шт.

75

39007

CAP

- check valve

1шт.

76

39009

RETAINER

- "O" ring

1шт.

77

39014

SEAT - spring retaining

1шт.

78

39015

SPRING - valve

1шт.

79

73569

GUIDE ASS'Y - spring (Order ref. #114 & #115 for service)

1шт.

80

39016

PIN - spirolox

1шт.

81

R14174

CAP & SLEEVE ASS'Y - valve

1шт.

82

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS - 3/8 - 16 NC x 3-1/2

2шт.

39029

SECTION ASS'Y - valve center

1шт.

69

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y - valve (Order 39029 for service)

1шт.

70

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

71

09018AB

SEAL - "O" ring

4шт.

72

39006

X

POPPET - check valve

1шт.

73

39008

SPRING - check

1шт.

74

08346AB

SEAL - "O" ring

1шт.

75

39007

CAP

- check valve

1шт.

76

39009

RETAINER

- "O" ring

1шт.

77

39014

SEAT - spring retaining

1шт.

78

39015

SPRING - valve

1шт.

79

73569

GUIDE ASS'Y - spring (Order ref. #114 & #115 for service)

1шт.

80

39016

PIN - spirolox

1шт.

81

R14174

CAP & SLEEVE ASS'Y

1шт.

82

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS - 3/8 - 16 NC x 3-1/2

2шт.

23168

DECAL

SECTION ASS'Y - valve center

1шт.

83

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order 23168 for service)

1шт.

84

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

85

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

86

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

87

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

88

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

89

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

90

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

91

16205

SEAT - spring retainer

1шт.

92

23127

SPRING

- valve

1шт.

93

73568

COCK

GUIDE ASS'Y - spring (Order ref. #111, #112, & #113 for service)

1шт.

94

38564

X

PIN - spirolox

1шт.

95

73570

CAP & SLEEVE ASS'Y - valve

1шт.

96

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18 NC x 3/4

2шт.

23165

PRODUCT GRAPHIC

SECTION ASS'Y - valve center

1шт.

97

NSS

NOT SOLD SEPARAT

BODY & SPOOL ASS'Y - valve (Order 23165 for service)

1шт.

98

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

99

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

100

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

101

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

102

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

103

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

104

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

105

16205

SEAT - spring retainer

1шт.

106

23127

SPRING

- valve

1шт.

107

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

108

NLS

NO LONGER SERVICED

- spring guide

1шт.

109

23115

HYDRAULIC HOSE

CAP - valve

2шт.

110

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS - 5/16 - 18 NC x 3/4

2шт.

39028

SECTION ASS'Y - valve center

1шт.

97

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y - valve (Order 39028 for service)

1шт.

98

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

99

09018AB

SEAL - "O" ring

4шт.

100

39006

X

POPPET - check valve

1шт.

101

39008

SPRING - check valve

1шт.

102

08346AB

SEAL - "O" ring

1шт.

103

39007

CAP

- check valve

1шт.

104

39009

RETAINER

- "O" ring

1шт.

105

39014

SEAT - spring retainer

1шт.

106

39015

SPRING - valve

1шт.

107

39022

PTO

GUIDE - spring

1шт.

108

39025

WASHER - spring guide retaining

1шт.

109

39021

PTO

CAP - valve

1шт.

110

61-614

HEX SOC SCREW,3/8"-16 x 7/8"

SHCS - 3/8 - 16 NC x 7/8

2шт.

111

R22671

GUIDE - spring (Dozer valve only)

1шт.

112

R22736

CAP - valve end (Dozer valve only)

1шт.

113

R4458

KIT

- poppet (Dozer valve only)

1шт.

114

R22457

GUIDE - spring (Loader valve only)

1шт.

115

R4457

KIT - poppet (Loader valve only)

1шт.
