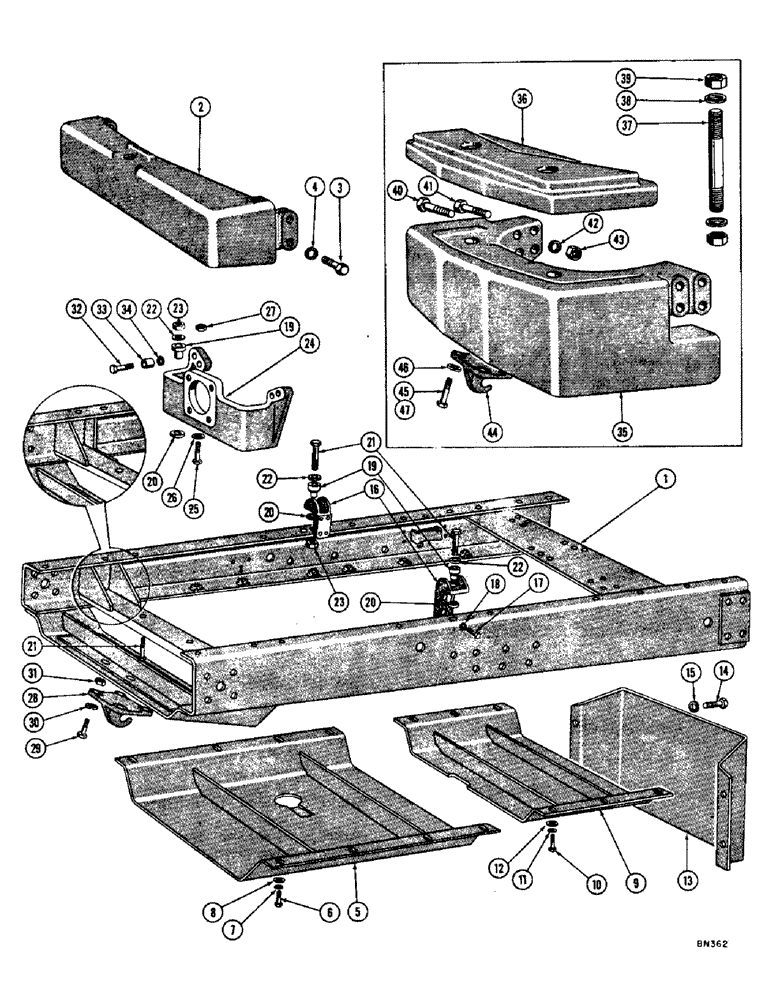

Запчасти Case 1000 (006) - ENGINE FRAME, MUD PAN, AND ENGINE MOUNTS (01) - ENGINE

1

71910

FRAME ASS'Y - engine (Must be notched as illustrated for tractors with type III oil filters)

1шт.

2

70963

BUMPER - front

1шт.

3

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16 NF x 1-3/4 (70963 mt'g.)

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

72185

WASHER

GUARD ASS'Y - bottom center

1шт.

6

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4 (72185 mt'g.)

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

95-8

WASHER,1/2"

- plain 1/2"

8шт.

9

72198

SPARE PART

GUARD ASS'Y - bottom rear

1шт.

10

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4 (72198 mt'g.)

6шт.

11

92-8

LOCK WASHER,1/2"

6шт.

12

95-8

WASHER,1/2"

- plain 1/2"

6шт.

13

R19112

GUARD - transmission rear

1шт.

14

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

HHCS - 3/4 - 16 NF x 1-1/2 (R19112 mt'g.)

4шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

16

70121

MOUNT - engine rear

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(70121 mt'g.) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

74038

MOUNTING PARTS

MOUNT - engine upper

4шт.

20

NLS

NO LONGER SERVICED

WASHER - vibration

4шт.

21

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4 - 16 NF x 3 (Engine mt'g.)

4шт.

22

95-12

WASHER,3/4"

- plain

4шт.

23

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4 - 16 NF)

4шт.

24

R12544

BRACKET - pump mt'g.

1шт.

25

14-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 5

HHCS - 9/16 - 18 NF x 2-3/4 (Engine mt'g.)

2шт.

26

40581

SPACER,1-1/2” x 1-1/2” x 1/4" Tk

SHIM - engine mt'g.

2шт.

27

131-157

NUT,9/16"-18, GA

- lock (9/16 - 18 NF)

2шт.

NS

NOT SERVICED

HOOK INSTALLATION - pull (Optional equipment) (6337)

1шт.

28

71671

PLATE ASSY.

HOOK - pull

1шт.

29

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4 - 16 NF x 2-1/2 (71671 mt'g.)

4шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

31

25-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF)

4шт.

32

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8 - 16 NC x 2-1/2 (R12544 mt'g.)

2шт.

33

R12644

BUSHING

SPACER - pump bracket

2шт.

34

R12645

SHIM - pump bracket

1шт.

8498

FRONT MOUNTED WEIGHT (Optional)

1шт.

35

73431

WEIGHT - front mounted

1шт.

36

73432

COVER - front mounted weight

1шт.

37

R11489

STUD - (73432 mt'g.)

2шт.

38

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

39

25-1116

NUT,1"-14, G5

- reg. SF hex. (1 - 14 NF)

4шт.

40

14-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

HHCS - 3/4 - 16 NF x 5-1/2 (73431 mt'g.)

4шт.

41

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4 - 16 NF x 5 (73431 mt'g.)

4шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

43

25-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF)

8шт.

44

71671

PLATE ASSY.

HOOK - pull

1шт.

45

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4 - 16 NF x 5 (71671 mt'g.)

4шт.

46

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

47

25-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF) (Not illustrated)

4шт.
