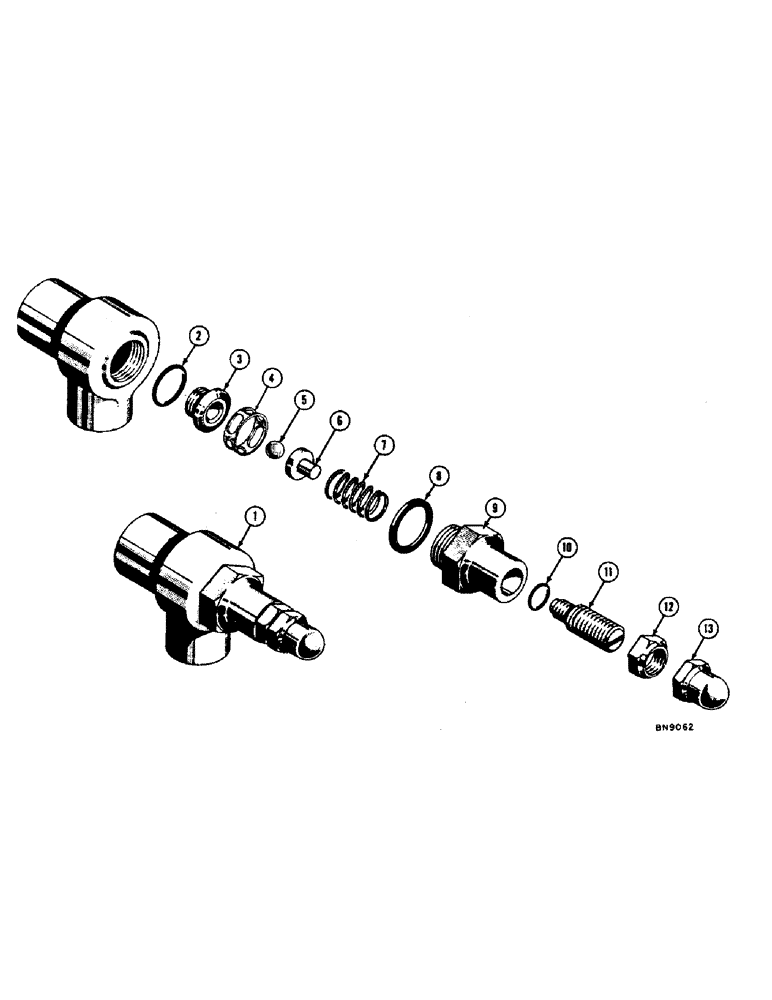

Запчасти Case 1000 (272[1]) - 33959 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

33959

PIPE FITTING

VALVE - special relief (Has #985 on housing) use D24452

1шт.

If the housing has the number "985" on it, refer to P/N 33959 relief valve. If the housing has the number "2716 on it, refer to D24452 relief valve.

1шт.

2

A11027

GASKET

SEAL - "O" ring, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve (Use D24406)

1шт.

D24406

SEAT

- valve

1шт.

4

07210AB

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap

1шт.

1

D24452

VALVE

- special relief (Has #2716 on housing)

1шт.

If the housing has the number "985" on it, refer to P/N 33959 relief valve. If the housing has the number "2716 on it, refer to D24452 relief valve.

1шт.

2

D23928

O-RING

SEAL - "O" ring, valve seat

1шт.

3

D24406

SEAT

- valve

1шт.

4

07210AB

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap

1шт.
