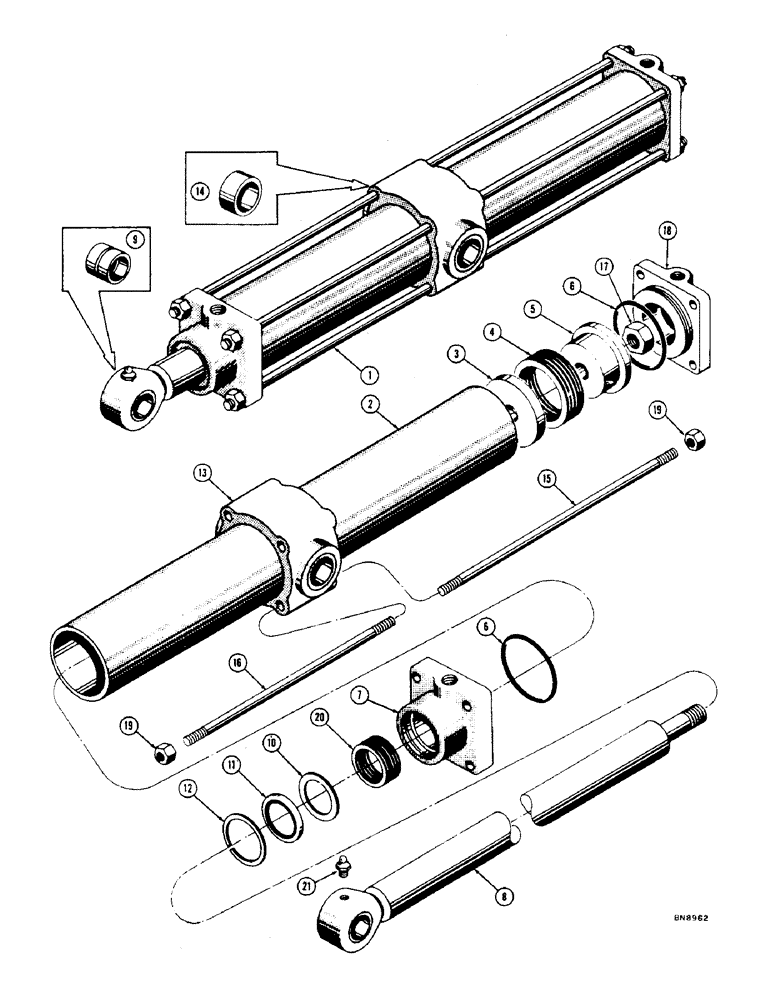

Запчасти Case 1000 (270) - R17512 RIPPER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

R17512

CYLINDER ASSY.

HYDRAULIC CYLINDER ASS'Y

1шт.

2

71068

TUBE - hydraulic cylinder

1шт.

3

R19906

WASHER - retainer

1шт.

4

31526

PACKING

- piston

1шт.

5

R14108

BLOCK

- piston

1шт.

6

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

7

R17510

CAP - cylinder end

1шт.

8

73702

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y

1шт.

9

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

10

31539

WASHER

PACKING - washer

1шт.

11

31525

WIPER SEAL

- wiper

1шт.

12

R18222

RING

- snap

1шт.

13

75020

TRUNNION ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION - cylinder

1шт.

14

D21903

BUSHING

2шт.

15

71064

SHAFT

ROD - tie, long

4шт.

16

71065

SHAFT

ROD - tie, short

4шт.

17

R12336

LOCK NUT

- lock (1- 14 NF)

1шт.

18

71071

JET

CAP - cylinder end

1шт.

19

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

8шт.

20

17598

PACKING

- rod

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease

1шт.
