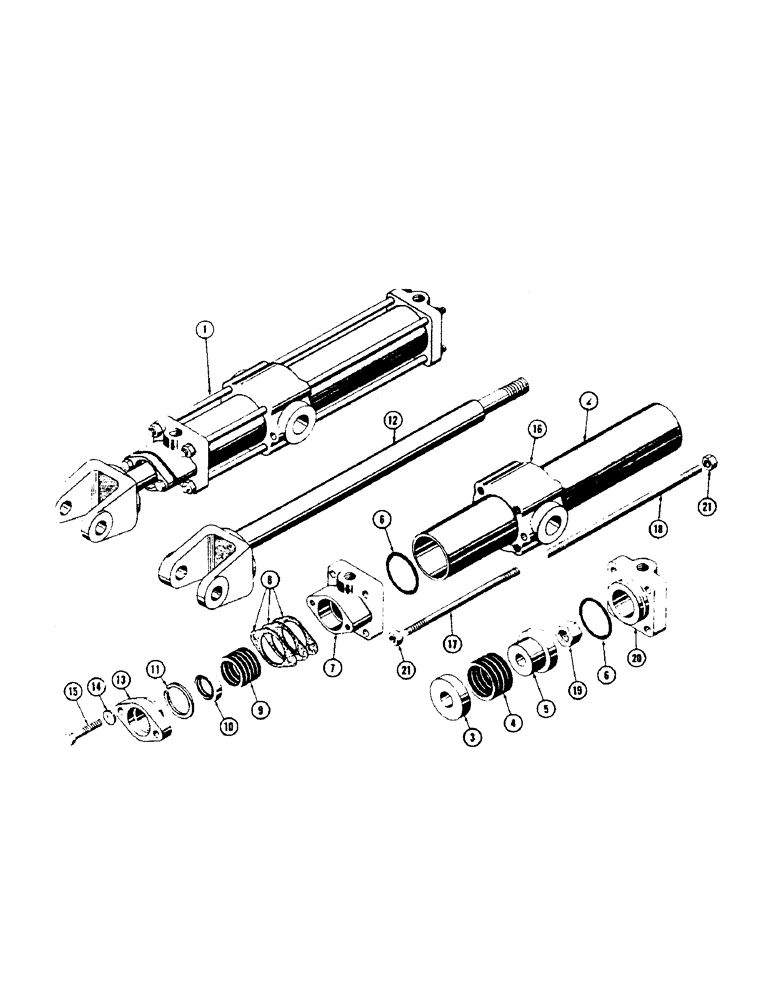

Запчасти Case 1000 (268) - 70743 AND 70744 DOZER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

70743

CYLINDER ASS'Y - R.H. hydraulic

1шт.

70744

CYLINDER ASS'Y - L.H. hydraulic

1шт.

2

70365

1 LIT CAN PAINT

TUBE - hydraulic cylinder

1шт.

3

NLS

NO LONGER SERVICED

WASHER - retainer

1шт.

4

17578

PACKING

- piston

1шт.

5

R14107

BLOCK - piston

1шт.

6

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

7

70356

CAP - end

1шт.

8

70364

SHIM

- packing retainer

8шт.

9

30568

PACKING

- rod

1шт.

10

70363

WIPER SEAL

- wiper

1шт.

11

70742

WASHER

2.50", Int, #250

1шт.

12

70354

ROD & CLEVIS ASS'Y - piston

1шт.

13

70366

RETAINER - packing

1шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 mt'g.) Hex, 1/2"-13 x 2", G5

2шт.

16

70331

TRUNNION - cylinder

1шт.

17

70362

ROD - short tie

4шт.

18

70361

ROD - long tie

4шт.

19

R12336

LOCK NUT

- lock (1 - 14 NF)

1шт.

20

70351

END - cylinder

1шт.

21

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

8шт.
