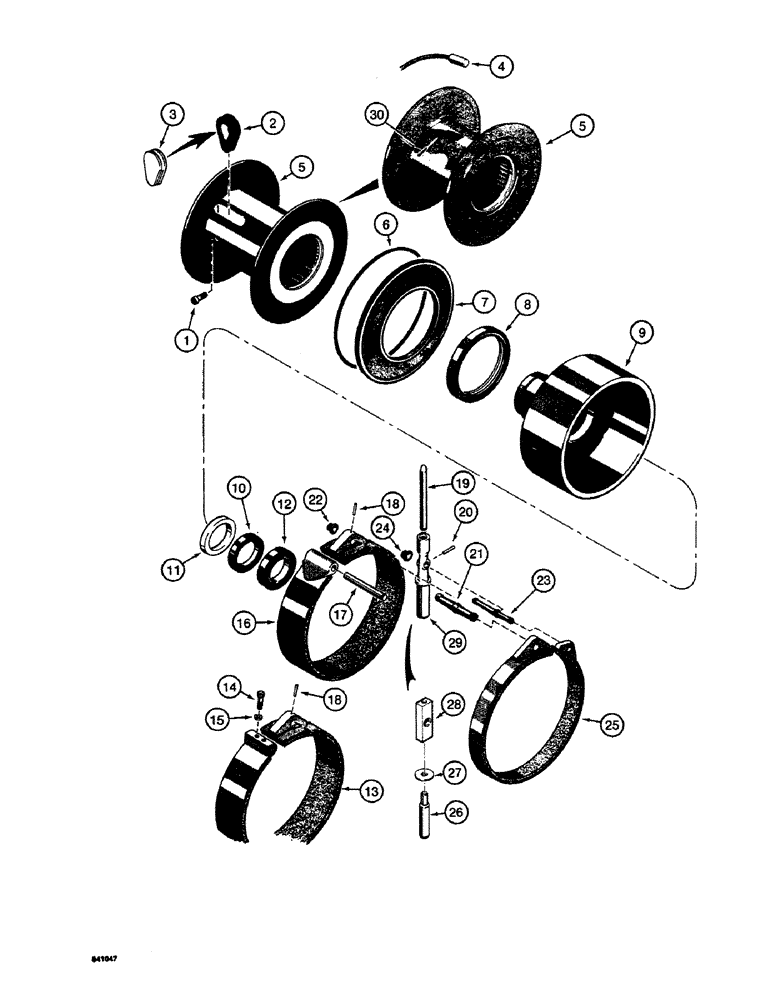

Запчасти Case 9 (36) - CABLE DRUM AND BRAKE BANDS
№
Артикул
Название
Примечание
Количество
1
61-616
HEX SOC SCREW,3/8"-16 x 1"
BOLT - hex socket head, 3/8" - 16 NC x 1", used on drums with wedge only
1шт.
2
D37870
WEDGE - cable retaining, no longer available, order S113460 wedge
1шт.
3
S113460
WEDGE
- cable retaining, if used
1шт.
4
D48857
FERRULE
- drum cable, for 7/16" and 1/2" cable, if used
1шт.
4
D48858
FERRULE
- drum cable, for 9/16" and 5/8" cable, if used
1шт.
5
D80444
DRUM
- cable, may use either wedge or ferrule to retain cable
1шт.
6
D37994
O-RING
- drum adapter
1шт.
7
D37849
FLANGE
ADAPTER - drums
1шт.
8
D37848
SEAL
OIL SEAL - brake drum
1шт.
9
D37850
DRUM
- brake
1шт.
10
D37845
OIL SEAL
- drum shaft
1шт.
11
D37846
SPACER
- brake drum
1шт.
12
D37968
BALL BEARING
- drum shaft
1шт.
13
D37887
BAND
- brake, inner, wide, used with D37831 housing on Fig. 26, if used
1шт.
14
14-624
BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5
- hex socket head, 3/8" - 24 NF x 1-1/2", use with Ref.# 13 brake band only
2шт.
15
D37871
WASHER - copper, use with Ref. 13 brake band only
2шт.
16
D39332
NO LONGER SERVICED
BAND - brake, inner, wide, used with D39333 housing on Fig. 26
1шт.
17
D39331
PIN
- anchor
1шт.
18
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
19
D37885
ROD
- brake actuating
1шт.
20
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
21
D37886
LEVER
ROD - brake bands
1шт.
22
D37872
PLUG - rod, brake bands
1шт.
23
D37869
LEVER
ROD - brake, Serial Range: band-sleeve
1шт.
24
D48850
PLUG
- rod, brake, Serial Range: band-sleeve
1шт.
25
D37868
BRAKE BAND
BAND - brake, outer, narrow
1шт.
D37894
X
SLEEVE ASSEMBLY - no longer available, order Ref. 29, Includes: Ref. 26 - 28
1шт.
26
D37908
ROD
- guide
1шт.
27
95-8
WASHER,1/2"
flat 1/2"
1шт.
28
NSS
NOT SOLD SEPARAT
BLOCK - sleeve
1шт.
29
D41504
BRACKET
SLEEVE - brake actuating rod
1шт.
30
132-54
COTTER PIN,1/8" x 1 3/4"
Pin, Split (Cotter), , Use with Ref. 4 ferrule only, if used 1/8" x 1 3/4"
1шт.
Выбрано товаров: 32
