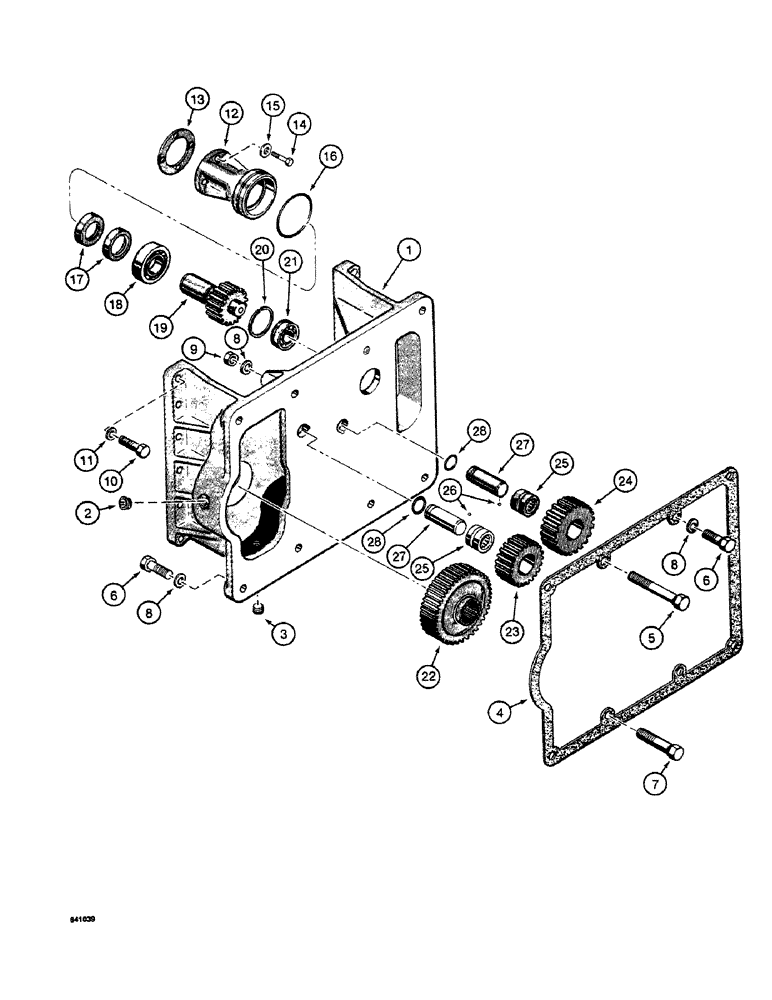

Запчасти Case 19 (18) - ADAPTER PARTS FOR 450 CRAWLERS, USED ON DRAWBAR AND DOZER MODELS BEFORE TRANSMISSION P.I.N. 2682706

1

D38002

HOUSING - adapter

1шт.

2

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT

1шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.

4

D38011

GASKET

- housing, adapter

1шт.

5

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

- hex head, 3/4" - 16 NF x 5"

1шт.

6

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

5шт.

7

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

- hex head, 3/4" - 16 NF x 3-1/2"

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

9

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF

3шт.

10

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

12шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

12

D38003

HOUSING

- PTO gear

1шт.

13

D38012

GASKET - PTO gear housing

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

15

D38232

WASHER

- special

4шт.

16

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

- PTO gear housing

1шт.

17

D38009

SEAL

OIL SEAL - PTO

2шт.

18

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

- PTO gear, large

1шт.

19

D38004

GEAR - PTO

1шт.

20

A28153

RING

SNAP RING - PTO gear

1шт.

21

A37733

BALL BEARING

- PTO gear, small

1шт.

22

D38007

GEAR

DRIVE GEAR - pinion shaft

1шт.

23

D38005

GEAR, IDLER

IDLER GEAR - upper

1шт.

24

D38006

GEAR, IDLER

IDLER GEAR - lower

1шт.

25

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

NEEDLE BEARING - idler gear

2шт.

26

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

27

D38008

PIN

- idler gear

2шт.

28

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- idler gear pin

2шт.
