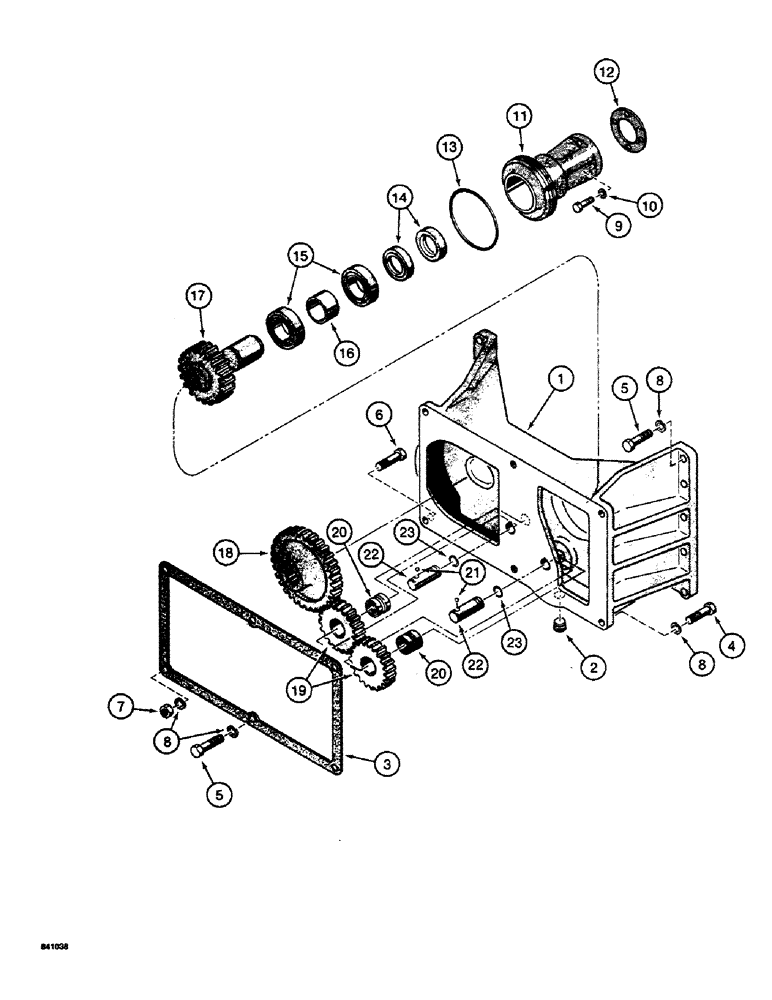

Запчасти Case 19 (16) - ADAPTER PARTS FOR 450 CRAWLERS

1

D38353

HOUSING - adapter

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2"

1шт.

3

D38354

GASKET

- housing adapter

1шт.

4

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

5

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

12шт.

6

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

2шт.

7

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

10

D38232

WASHER

- special

4шт.

11

D38352

HOUSING - gear

1шт.

12

D38012

GASKET - gear housing

1шт.

13

A18842

O-RING,0.139" Thk x 5.359" ID, -253, Cl 5, 75 Duro

- gear housing

1шт.

14

D38009

SEAL

OIL SEAL - gear housing

2шт.

15

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

- PTO gear

2шт.

16

D38349

SPACER - ball bearing

1шт.

17

D38351

GEAR - PTO

1шт.

18

D38350

PINION GEAR - driven

1шт.

19

D38348

GEAR

IDLER GEAR - drive

2шт.

20

D38355

BEARING

NEEDLE BEARING - idler gear

2шт.

21

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

22

D38339

PIN

- idler gear

2шт.

23

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- idler gear pin

2шт.
