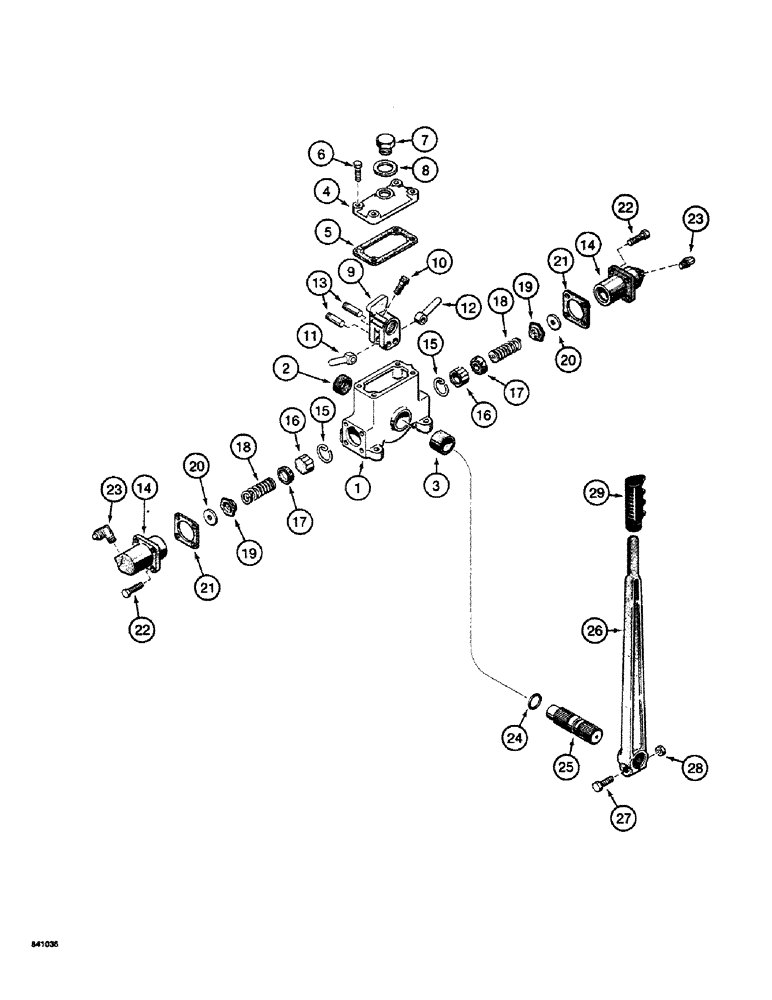

Запчасти Case 19 (12) - CONTROL VALVE ASSEMBLY

D37655

CONTROL VALVE ASSEMBLY - model no. X710B stamped on top cover, no longer available, order D80493 control valve and one D49394 brake spring cap, see page 40, Includes: Ref. 1 - 29

1шт.

D80493

CONTROL

VALVE ASSEMBLY - model no. X710C stamped on top cover, Includes: Ref. 1 - 29

1шт.

1

D52318

HOUSING

- control valve, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - narrow, left-hand

1шт.

3

D37670

BUSHING

- wide, right-hand

1шт.

4

D37665

COVER

- control valve

1шт.

5

D37664

GASKET

- cover

1шт.

6

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

7

D37667

CAP

- filler

1шт.

8

D37666

WASHER

- fiber

1шт.

9

D37662

ROCKER ARM

PIVOT - rod actuating

1шт.

10

165-131

HEX SOC SCREW,Self-Lkg, 5/16" - 18 x 1"

BOLT - hex socket head, self-locking, 5/16" - 18 NC x 1"

1шт.

D49387

ROD

KIT - push rods, for model 9 winches before PIN 9-8235, must also order D49394 brake spring cap, see Fig. 40, Includes: Ref. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - push, short, rear

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - push, long, front

1шт.

13

D37661

PIN

- push rod retaining

2шт.

D37659

CYLINDER

ACTUATOR ASSEMBLY - control valve, Includes: Ref. 14 - 21

2шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - actuator

1шт.

D46761

KIT

- actuator assembly, Includes: Ref. 15 - 20

1шт.

15

D37677

RING

RETAINING RING - piston

1шт.

16

D37676

PISTON

- actuator

1шт.

17

D37675

SEAL

SEAT - spring

1шт.

18

D37673

BUSHING

SPRING - actuator

1шт.

D37672

VALVE

FLOW CONTROL VALVE ASSEMBLY - control valve, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

FLOW CONTROL VALVE - oil

1шт.

20

D37917

WASHER

- rubber

1шт.

21

D37674

GASKET

- housing

1шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

23

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

2шт.

24

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- control shaft

1шт.

25

D37671

SHAFT

- control

1шт.

26

D80495

HANDLE

CONTROL LEVER - winch

1шт.

27

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- hex head, 3/8" - 24 NF x 2"

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

29

A70170

GRIP

- control lever

1шт.
