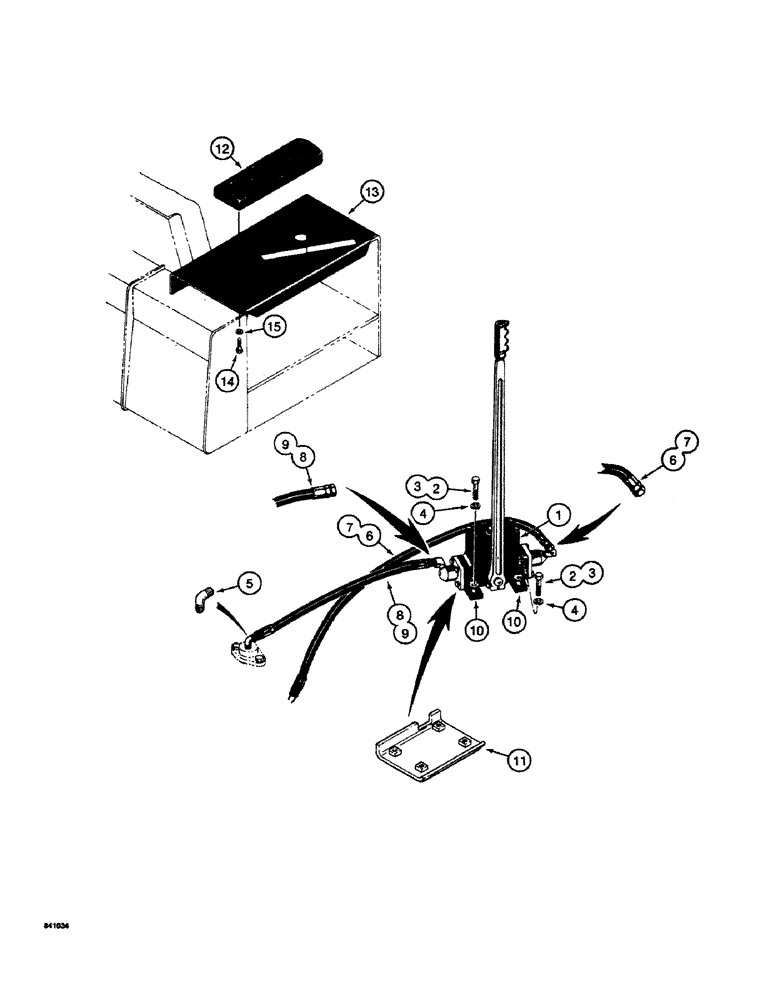

Запчасти Case 19 (08) - CONTROL PARTS FOR 450, 450B, AND 450C CRAWLERS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - winch, parts list Fig. 12

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used with tapped blocks (Ref.10) only, if used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used without tapped blocks, if used

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

6

D38336

HOSE - brake line, 31" (787 MM) long, used without ROPS, Serial Range: -3049198

1шт.

7

D38337

HOSE

- brake line, 42" (1067 MM) long, and all tractors with ROPS

1шт.

8

D38337

HOSE

- clutch line, 42" (1067 MM) long, used without ROPS before tractor PIN 3049198, Serial Range: -3049198

1шт.

9

D37995

HOSE ASSY.

HOSE - clutch line, 54" (1372 MM), all tractors without ROPS, Start Serial: 3049198

1шт.

10

D38338

BLOCK

- tapped, if used

2шт.

11

R45572

BRACKET

- valve mounting, if used

1шт.

12

D27693

ARMREST

- used on 450 models only

1шт.

For armrest and hydraulic reservoir cover used on 450B and 450C models, see the basic parts catalogs for those models.

1шт.

13

R42576

COVER ASSY

COVER - hydraulic reservoir, used on 450 models only

1шт.

For armrest and hydraulic reservoir cover used on 450B and 450C models, see the basic parts catalogs for those models.

1шт.

14

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
