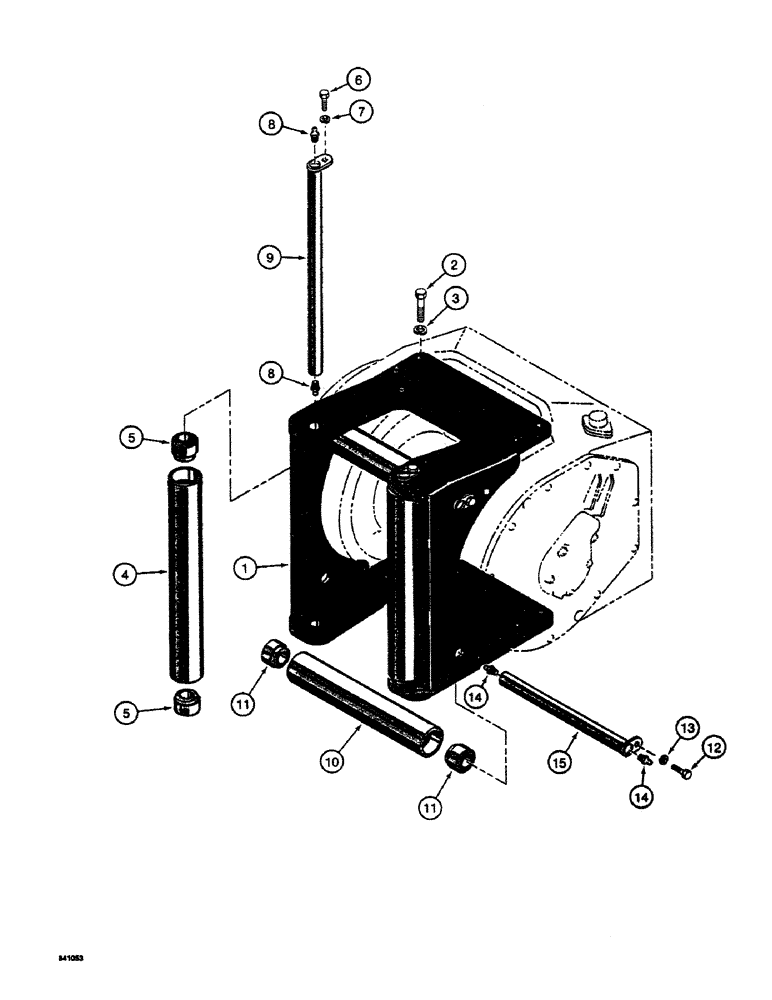

Запчасти Case 19 (52) - THREE AND FOUR ROLLER FAIRLEADS

1

D38211

BODY - Fairlead

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

10шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

D39213

BOOT

ROLLER ASSEMBLY - long, Includes: Ref. 4 & 5

2шт.

4

NSS

NOT SOLD SEPARAT

ROLLER - long

1шт.

5

D38217

BUSHING

- roller

2шт.

6

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

9

D38214

SHAFT

- roller, long

2шт.

D38215

ROLLER ASSY.

ROLLER ASSEMBLY - short, Includes: Ref. 10 & 11

1-2шт.

10

NSS

NOT SOLD SEPARAT

ROLLER - short

1шт.

11

D38217

BUSHING

- roller

2шт.

12

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1-2шт.

13

92-5

LOCK WASHER,5/16"

1-2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2-4шт.

15

D38216

SHAFT - roller, short

1-2шт.
