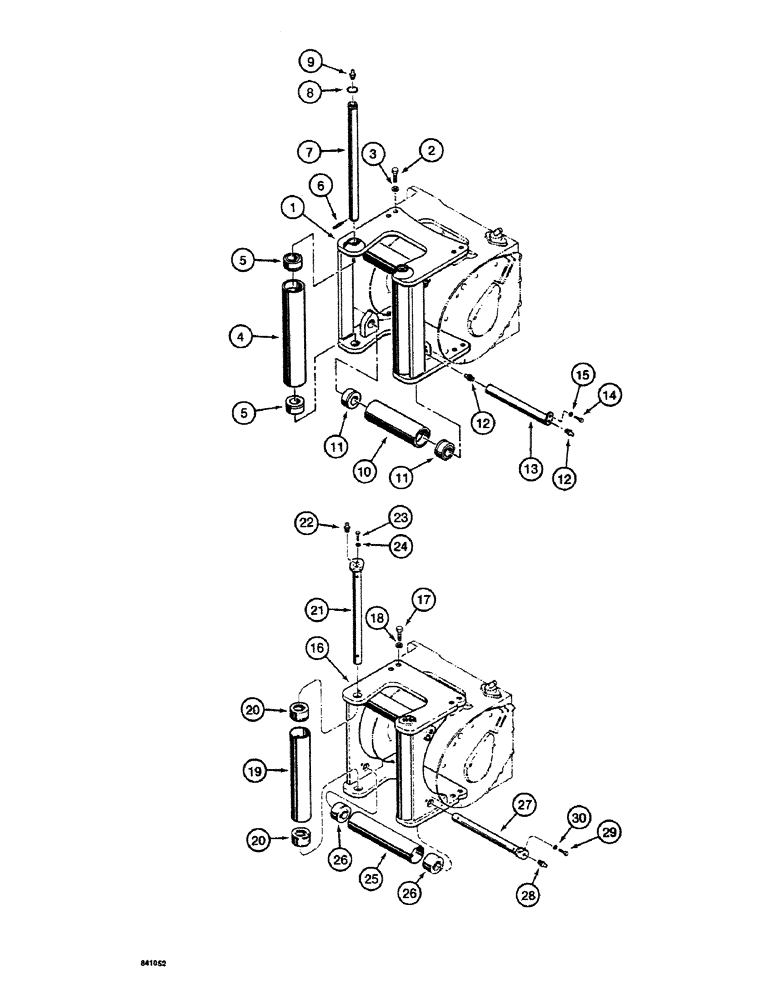

Запчасти Case 19 (50) - THREE AND FOUR ROLLER FAIRLEADS, LONG SHAFTS RETAINED BY RING AND ROLL PIN

1

D37981

BODY - Fairlead, no longer available, order D15514 Fairlead assembly below

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

D37983

ROLLER

ASSEMBLY - long, Includes: Ref. 4 & 5

2шт.

4

NSS

NOT SOLD SEPARAT

ROLLER - long

1шт.

5

D37988

BUSHING - roller

2шт.

6

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

PIN - lock, roller shaft, 3/16" - 1-3/4"

2шт.

7

D37985

SHAFT - roller, long

2шт.

8

D37987

RETAINING RING - shaft

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

D37984

ROLLER ASSEMBLY - short, Includes: Ref. 10

1-2шт.

10

NSS

NOT SOLD SEPARAT

ROLLER - short

1шт.

11

D37988

BUSHING - roller

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2-4шт.

13

D37986

HOSE

SHAFT - roller, short

1-2шт.

14

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1-2шт.

15

92-5

LOCK WASHER,5/16"

1-2шт.

D15514

FAIRLEAD ASSEMBLY - winch, Includes: Ref. 16 - 30, LONG SHAFT RETAINED BY BOLT

1шт.

16

D48866

BODY

- Fairlead, LONG SHAFT RETAINED BY BOLT

1шт.

17

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Long shaft retained by bolt Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Long shaft retained by bolt 5/8"

8шт.

D37983

ROLLER

ASSEMBLY - , Includes: Ref. 19 & 20, LONG SHAFT RETAINED BY BOLT

2шт.

19

NSS

NOT SOLD SEPARAT

ROLLER - LONG SHAFT RETAINED BY BOLT

1шт.

20

D37988

BUSHING - roller, LONG SHAFT RETAINED BY BOLT

2шт.

21

D48870

SHAFT

- roller, LONG RETAINED BY BOLT

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, LONG SHAFT RETAINED BY BOLT

4шт.

23

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Long shaft retained by bolt Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

24

92-5

LOCK WASHER,5/16"

long shaft retained by bolt 5/16"

2шт.

D48868

ROLLER

ASSEMBLY - short, , Includes: Ref. 25 & 26, LONG SHAFT RETAINED BY BOLT

1-2шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - short, LONG SHAFT RETAINED BY BOLT

1шт.

26

D37988

BUSHING - roller, LONG SHAFT RETAINED BY BOLT

2шт.

27

D48869

SHAFT

- roller, short, LONG SHAFT RETAINED BY BOLT

1-2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, LONG SHAFT RETAINED BY BOLT

2-4шт.

29

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Long shaft retained by bolt Hex, 5/16"-18 x 1/2", G5, Full Thd

1-2шт.

30

92-5

LOCK WASHER,5/16"

long shaft retained by bolt 5/16"

1-2шт.
