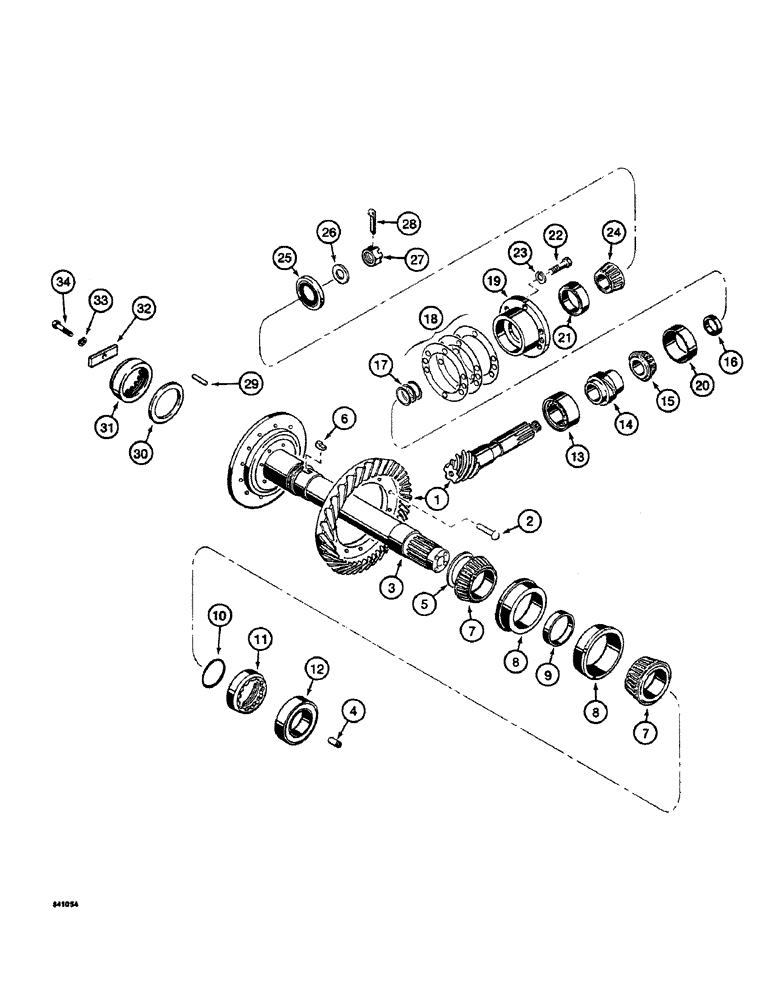

Запчасти Case 19 (46) - RING GEAR, PINION AND SHAFT

N8463

PINION

SHAFT AND RING GEAR KIT - drum shaft, Includes: Ref. 1 & 2

1шт.

N8463 pinion shaft and ring gear kit and R26085 drum shaft kit will service all previous pinion shaft, rin g gear and drum shaft assemblies.These kits do not include Ref. 29 - 34 which are no longer required.

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR AND PINION SHAFT - matched set

1шт.

2

45-832

RIVET

- ring gear

16шт.

R26085

SHAFT

KIT - drum, Includes: Ref. 3 & 4 and shaft assembly

1шт.

N8463 pinion shaft and ring gear kit and R26085 drum shaft kit will service all previous pinion shaft, rin g gear and drum shaft assemblies.These kits do not include Ref. 29 - 34 which are no longer required.

1шт.

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - drum, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - drum

1шт.

4

D37904

RETAINER

- cup

1шт.

5

R26084

SPACER

- ring gear

1шт.

6

D38191

RETAINER - lock nut

1шт.

7

D38342

CONE

TAPERED ROLLER BEARING - drum shaft

2шт.

8

D38341

CUP

- tapered roller bearing

2шт.

9

D80347

SPACER

- tapered roller bearing, .591", if used

1шт.

9

D80348

SPACER

- tapered roller bearing, .593", if used

1шт.

9

D80349

SPACER

- tapered roller bearing, .595", if used

1шт.

9

D80350

SPACER

- tapered roller bearing, .597", if used

1шт.

9

D80351

SPACER

- tapered roller bearing, .599", if used

1шт.

9

D80352

SPACER

- tapered roller bearing, .601", if used

1шт.

9

D80353

SPACER

- tapered roller bearing, .603", if used

1шт.

9

D80354

SPACER

- tapered roller bearing, .605", if used

1шт.

9

D80355

SPACER

- tapered roller bearing, .607", if used

1шт.

9

D80356

SPACER

- tapered roller bearing, .609", if used

1шт.

9

D80357

SPACER

- tapered roller bearing, .611", if used

1шт.

9

D80358

SPACER

- tapered roller bearing, .613", if used

1шт.

9

D80359

SPACER

- tapered roller bearing, .615", if used

1шт.

10

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- drum shaft

1шт.

11

D38024

LOCK NUT - drum shaft, special

1шт.

12

D40602

BEARING

BALL BEARING - drum shaft, outer

1шт.

13

D38344

BEARING

ROLLER BEARING - pinion shaft

1шт.

14

D38020

SPACER

- pinion shaft

1шт.

15

A15022

CUP ASSY.

TAPERED ROLLER BEARING - pinion shaft, inner

1шт.

16

D38203

SPACER

- pinion shaft, tapered roller bearing

1шт.

17

D38204

SHIM - pinion shaft, set of three

1шт.

18

D38202

SHIM - bearing housing, set of three

1шт.

D38201

HOUSING ASSEMBLY - bearing, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

20

A18356

BEARING

CUP - tapered roller bearing, inner

1шт.

21

40395

BEARING, CUP

CUP - tapered roller bearing, outer

1шт.

22

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

24

D38345

CONE

TAPERED ROLLER BEARING - pinion shaft, outer

1шт.

25

D38017

OIL SEAL

- pinion shaft

1шт.

26

D38015

WASHER - pinion shaft, special

1шт.

27

D38016

NUT

- pinion shaft, special

1шт.

28

132-58

COTTER PIN

- 1/8" x 2-1/4"

1шт.

29

D38022

- drum shaft, set of six, if used

1шт.

30

D38023

SPACER

- lock nut, if used

1шт.

31

D38024

LOCK NUT - special, if used

1шт.

32

D38025

PLATE, LOCKING

PLATE - locking, if used

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

34

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

- hex head, 3/8" - 24 NF x 1/2", plated, if used

1шт.
