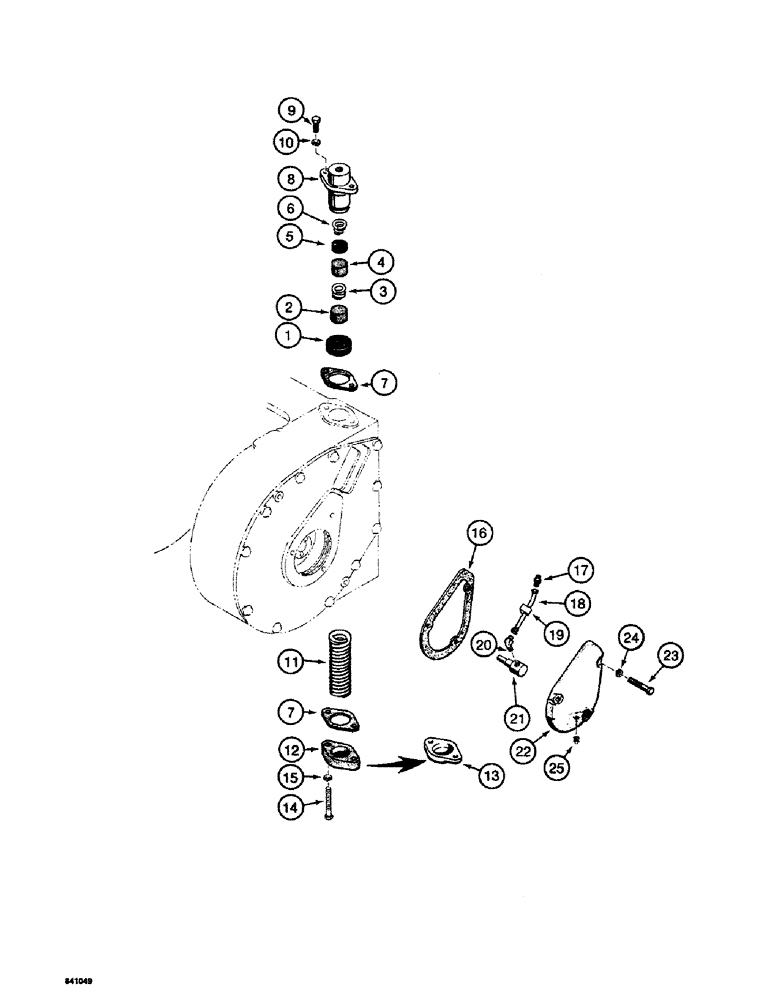

Запчасти Case 19 (40) - BRAKE CYLINDER AND TUBE

D37962

CYLINDER

ASSEMBLY - brake, Includes: P/N D46763 & Ref. 1 - 8

1шт.

D46763

KIT

- cylinder repair, Includes: Ref. 1 - 7

1шт.

1

D37884

BOOT

- brake cylinder

1шт.

2

D37879

PISTON

- push rod

1шт.

3

D37878

SPRING

- piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - primary, brake cylinder

1шт.

5

D37876

CUP

SEAT - piston

1шт.

6

D37893

SPRING

- brake cylinder

1шт.

7

D37874

GASKET

- brake cylinder

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

D37896

SPRING

- brake, blue or no color, Serial Range: -9-11975

1шт.

12

N9042

SPRING

- brake, green, Start Serial: 9-11975

1шт.

12

D37895

CAP

- brake spring, use with D37655 control valve assembly on Fig. 12

1шт.

13

D49394

CAP

- brake spring, use with D80493 control valve assembly on Fig. 12

1шт.

14

D37897

BOLT

- special

2шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

D37857

GASKET

- end cap

1шт.

17

222-712

FITTING

ADAPTER - male, straight

1шт.

18

D37860

TUBE ASSY.

TUBE - clutch cylinder, Includes: Ref. 19

1шт.

19

D37906

GROMMET

- rubber

1шт.

20

221-762

ELBOW

- male, 90 degree

1шт.

21

D37859

TUBE

- hydraulic, special

1шт.

22

D37863

CAP

- end

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, if used

1шт.
