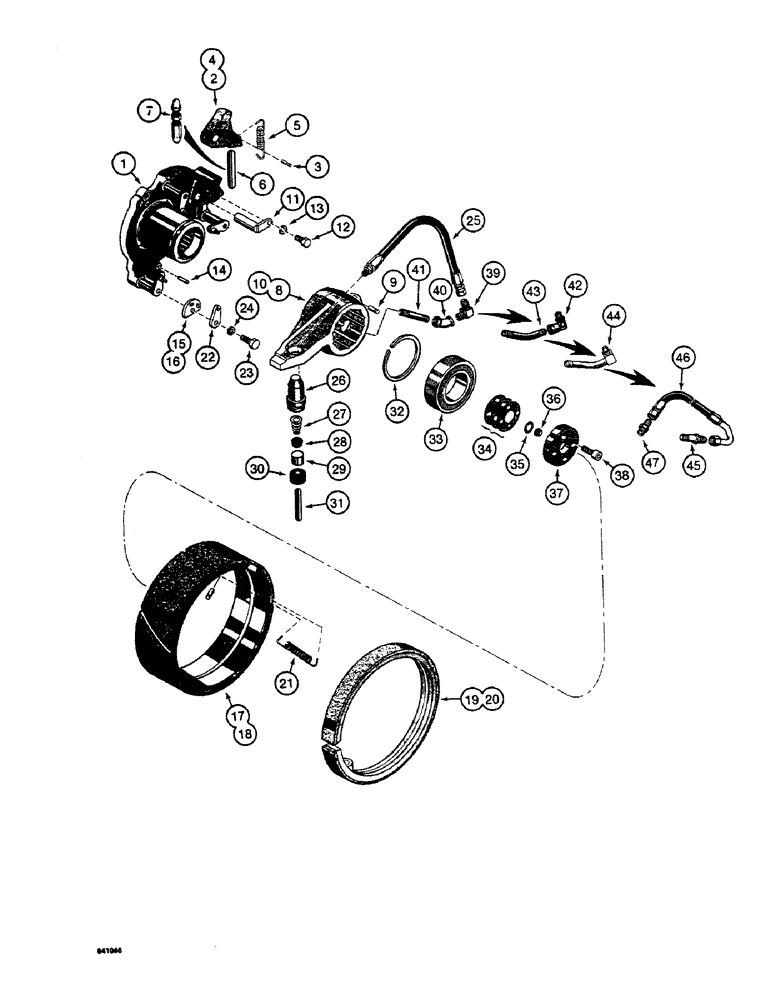

Запчасти Case 19 (32) - CLUTCH ASSEMBLY

1

D80445

HUB

- clutch

1шт.

D42861

LEVER

ARM ASSEMBLY - lever, with pin, no longer used, order D80446 arm and R30411 rod, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

ARM - lever

1шт.

3

135-1145

PIN - spring retaining

1шт.

4

D80446

LEVER

ARM - lever, without pin, must also order Ref. 7 rod

1шт.

5

D42858

SPRING

- lever arm, if used

1шт.

6

D38199

PUSH ROD

ROD - clutch arm actuating, one-piece cast, no longer available, order R30411 actuating rod

1шт.

7

R30411

PUSH ROD

ROD - clutch arm actuating, assembled

1шт.

8

D42860

LEVER

ASSEMBLY - with pin, no longer used, order D80447 lever and R30411 rod, Includes: Ref. 9

1шт.

9

135-1145

PIN - spring retaining

1шт.

10

D80447

LEVER

- clutch, without pin, must also order Ref. 7 rod

1шт.

11

D38184

PIN

- pivot

1шт.

12

114-221

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- hex head, 3/8" - 24 NF x 5/8", plated, if used

1шт.

12

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

If used Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

6шт.

15

D37854

CAM

- adjusting, .135" thick, used with D42859 secondary clutch band and D38173 primary clutch band (See Ref. 17 and 19), if used

6шт.

16

R24240

CAM

- adjusting, .187" thick, used with R24239 secondary clutch band and R24238 primary clutch band (See Ref. 18 and 20), if used

6шт.

17

D42859

BAND

- clutch, secondary, .148" to .155" wide groove, no longer available, order R24239 band and three R24240 adjusting cams

1шт.

18

R24239

BAND

- clutch, secondary, .200" to .210" wide groove, no longer includes spring retaining pin

1шт.

19

D38173

BAND

- clutch, primary, .148" to .155" wide groove, no longer available, order R24238 band and three R24240 adjusting cams

1шт.

20

R24238

BAND

- clutch, primary, .200" to .210" wide groove

1шт.

21

D42858

SPRING

- secondary clutch band, if used

1шт.

22

D37855

PLATE

- lock

6шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

25

D38194

HOSE

- to clutch cylinder, used with Ref. 39, 40, & 41, if used

1шт.

D37963

CYLINDER

ASSEMBLY - clutch, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - clutch cylinder

1шт.

D46762

KIT

- cylinder repair, Includes: Ref. 27 - 30

1шт.

27

D37893

SPRING

- clutch cylinder

1шт.

28

D37892

CUP

SEAT - piston

1шт.

29

D37891

PISTON

- clutch cylinder

1шт.

30

D37889

BOOT

- clutch cylinder

1шт.

31

D38193

ROD

- clutch cylinder assembly

1шт.

32

D38220

RING, SNAP

SNAP RING - clutch lever retaining

1шт.

33

D38347

BEARING, BALL,80 mm ID x 140 mm OD x 26 mm

BALL BEARING - drum shaft

1шт.

34

D38178

SHIM - drum shaft, set of various widths

1шт.

35

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- drum shaft cap

1шт.

36

D37922

SEAL

U-CUP SEAL - drum shaft cap

1шт.

37

REF

INSTRUCTION

CAP - drum shaft, see Fig. 42 for service

1шт.

38

62-620

HEX SOC SCREW,3/8"-24 x 1 1/4"

BOLT - hex socket head, 3/8" - 24 NF x 1-1/4"

4шт.

39

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, if used 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

40

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, female, if used

1шт.

41

221-109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - pipe, 1/8" NPT x 2", is used

1шт.

42

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degree, used with Ref.#43 nipple, if used

1шт.

43

D40601

NIPPLE - special, used with Ref.#42 elbow, no longer available, order Ref. 45 - 47

1шт.

44

D48849

FITTING - special, used with item 25 hose, no longer used, order Ref. 45 - 47

1шт.

45

R24125

FITTING

ADAPTER - clutch lever, if used

1шт.

46

R24124

HOSE

- to clutch cylinder, if used

1шт.

47

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

ADAPTER - straight, if used

1шт.
