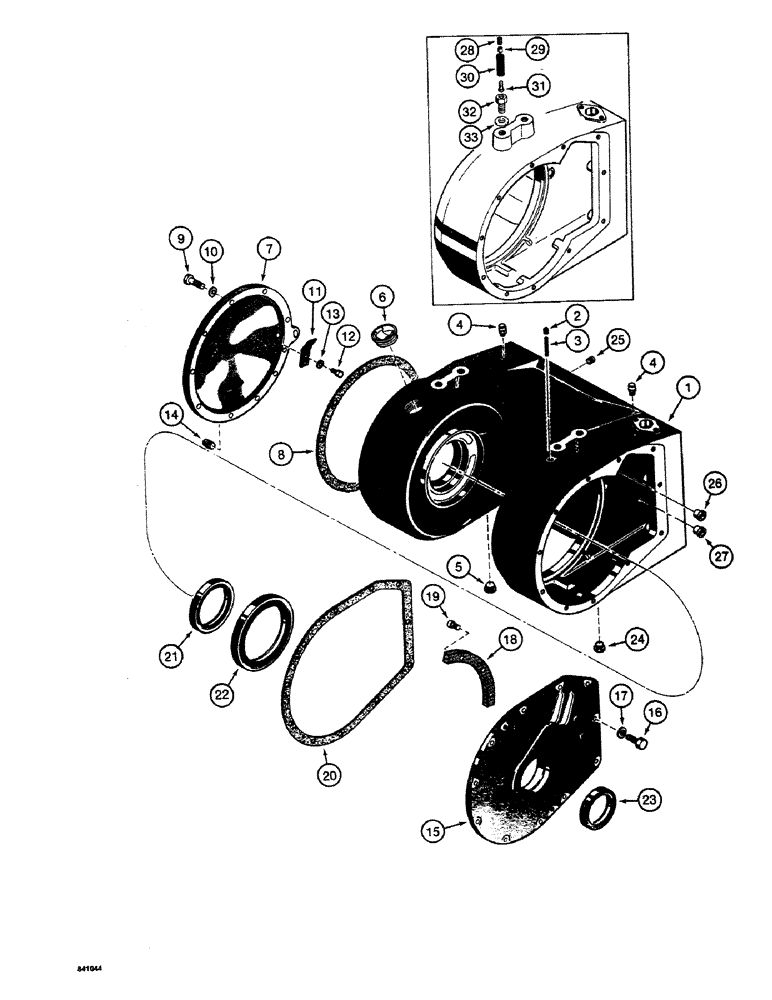

Запчасти Case 19 (28) - HOUSING ASSEMBLY
№
Артикул
Название
Примечание
Количество
1
D38013
HOUSING - winch
1шт.
2
83-77
SET SCREW,Hex Soc, 7/16"-14 x 7/16"
- hex socket, 7/16" - 14 NC x 7/16", Start Serial: 19-422
1шт.
3
D39334
SPRING
- drag, Start Serial: 19-422
1шт.
4
T25082
BREATHER - housing vent
2шт.
5
D37961
PLUG - housing, lower
1шт.
6
D37926
PLUG
- housing, upper
1шт.
7
D38026
COVER - gear
1шт.
8
D38021
GASKET - gear cover
1шт.
9
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
10шт.
10
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
10шт.
11
D38028
PLATE - oil flow
1шт.
12
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
2шт.
13
92-5
LOCK WASHER,5/16"
2шт.
14
221-14
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - square head, 1/2" NPT
1шт.
15
D38175
COVER - clutch
1шт.
16
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
11шт.
17
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
11шт.
18
D38186
RING - guide
1шт.
19
61-612
HEX SOC SCREW,3/8"-16 x 3/4"
BOLT - hex socket head, 3/8" - 16 NC x 3/4"
3шт.
20
D38174
GASKET - clutch cover
1шт.
21
D38165
OIL SEAL
- housing, small, outer
1шт.
22
N9041
OIL SEAL
- housing to drum, large, inner
1шт.
23
S93673
OIL SEAL
- clutch cover
1шт.
24
221-844
PLUG,Hex Soc, 1/2"-14
- hex socket head, 1/2" NPT
1шт.
25
221-841
PLUG
- hex socket head, 1/4" NPT, is used
1шт.
26
D48852
PLUG - brake band rod, Start Serial: 19-5154
1шт.
27
D48851
PLUG
- brake band to sleeve rod, Start Serial: 19-5154
1шт.
28
178-808
SET,Hex Soc, 3/8"-24 x 3/8"
SCREW - hex socket, 3/8" - 24 NF x 3/8" BRAKE DRAG PARTS USED BEFORE WINCH PIN 19-422
1шт.
29
D39328
SPACER - brake drag PARTS USED BEFORE WINCH PIN 19-422
1шт.
30
D39326
SPRING
- brake drag PARTS USED BEFORE WINCH PIN 19-422
1шт.
31
D39327
PLUNGER - brake drag PARTS USED BEFORE WINCH PIN 19-422
1шт.
32
D39329
BOLT - hex head, 5/8" - 11 NC x 1" BRAKE DRAG PARTS USED BEFORE WINCH PIN 19-422
1шт.
33
D39330
WASHER - special, use only when fairlead is not attached BRAKE DRAG PARTS USED BEFORE WINCH PIN 19-422
1шт.
Выбрано товаров: 33
