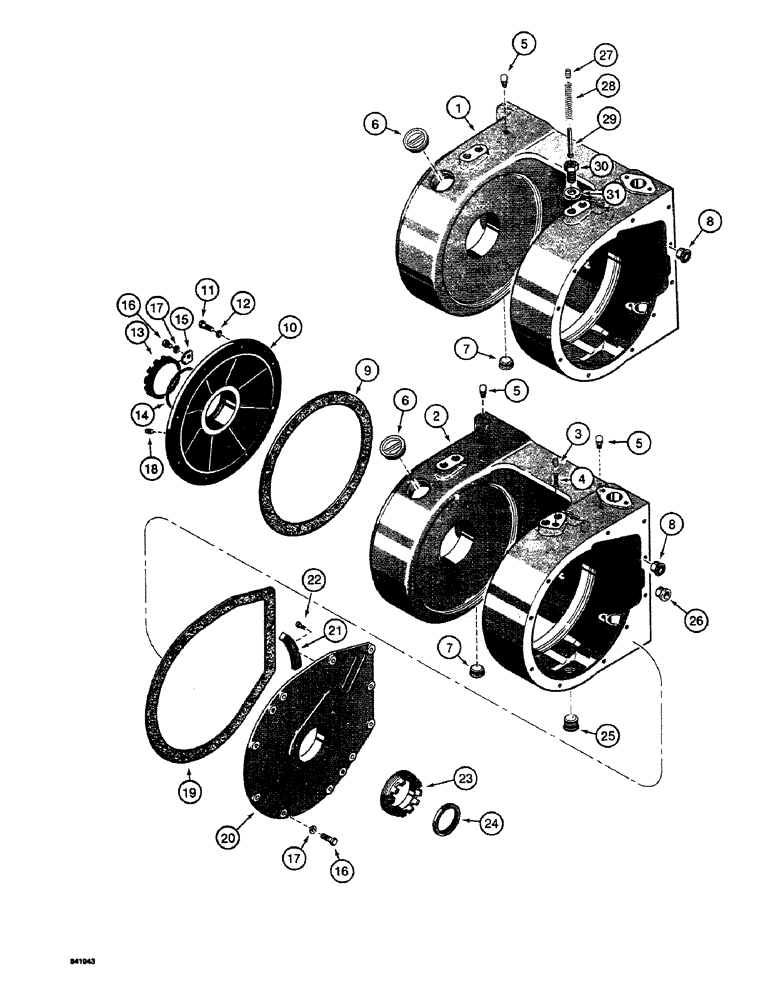

Запчасти Case 19 (26) - HOUSING ASSEMBLY

1

D37831

X

HOUSING - winch, no longer available, order Ref.#s 2, 3, 4 and Ref. 13 & 17 from Fig. 36

1шт.

2

D39333

- winch

1шт.

3

83-77

SET SCREW,Hex Soc, 7/16"-14 x 7/16"

- hex socket, 7/16" - 14 NC x 7/16"

1шт.

4

D39334

SPRING

- drag

1шт.

5

T25082

BREATHER - housing vent

2шт.

6

D37926

PLUG

- housing, upper

1шт.

7

D37961

PLUG - housing, lower

1шт.

8

D37872

PLUG - brake band rod

1шт.

9

D37843

GASKET

- gear cover

1шт.

10

D37842

COVER - gear

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

18шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

13

D37841

MOUNTING ROD

CAP - bearing

1шт.

14

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- bearing cap

1шт.

15

D37840

LOCK

- bearing cap

1шт.

16

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

18

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

1шт.

19

D37853

GASKET

- clutch cover

1шт.

20

D37866

COVER

- clutch

1шт.

21

D37867

RING - guide

1шт.

22

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

BOLT - hex socket head, 5/16" - 18 NC x 3/4"

3шт.

23

D37858

NUT

- adjusting, clutch cover

1шт.

24

D37923

SEAL

- drum shaft

1шт.

25

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.

26

D48850

PLUG

- brake band to sleeve rod, used on PIN 9-7263 and after

1шт.

27

178-808

SET,Hex Soc, 3/8"-24 x 3/8"

SCREW - hex socket, 3/8" - 24 NF x 3/8" BRAKE DRAG PARTS USED BEFORE WINCH PIN 9-1375

1шт.

28

D39326

SPRING

- brake drag PARTS USED BEFORE WINCH PIN 9-1375

1шт.

29

D39327

PLUNGER - brake drag PARTS USED BEFORE WINCH PIN 9-1375

1шт.

30

D39324

BOLT - special BRAKE DRAG PARTS USED BEFORE WINCH PIN 9-1375

1шт.

31

D39325

WASHER - special, used only when fairlead is not attached BRAKE DRAG PARTS USED BEFORE WINCH PIN 9-1375

1шт.
