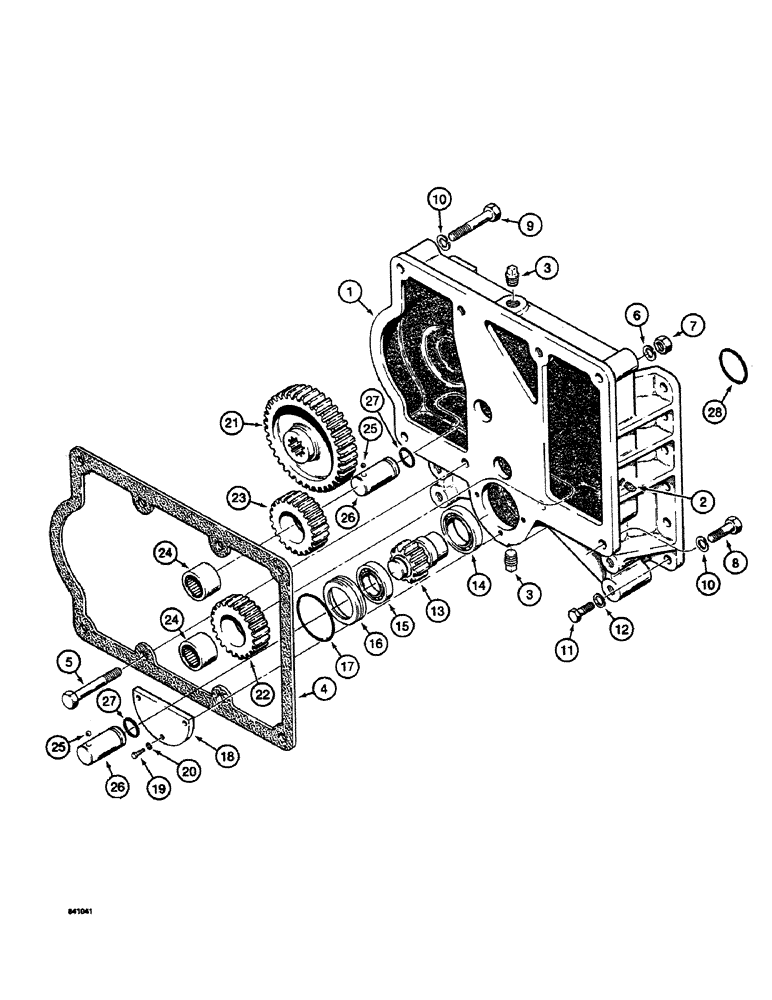

Запчасти Case 19 (22) - ADAPTER PARTS FOR 850 CRAWLERS

1

D52909

HOUSING

- adapter

1шт.

2

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

1шт.

3

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

2шт.

4

D38011

GASKET

- adapter housing

1шт.

5

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

- hex head, 3/4" - 16 NF x 5"

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF

4шт.

8

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

9

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

11

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

12шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

13

D52910

GEAR

- PTO

1шт.

14

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

- PTO gear, large

1шт.

15

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

- PTO gear, small

1шт.

16

D52911

HOUSING

- bearing

1шт.

17

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

- bearing housing

1шт.

18

D52912

PLATE - cover

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

D38007

GEAR

DRIVE GEAR - pinion shaft

1шт.

22

D38005

GEAR, IDLER

IDLER GEAR - lower

1шт.

23

D38006

GEAR, IDLER

IDLER GEAR - upper

1шт.

24

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

NEEDLE BEARING - idler gear

2шт.

25

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

26

D38008

PIN

- idler gear

2шт.

27

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- idler gear pin

2шт.

28

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- PTO gear

1шт.
