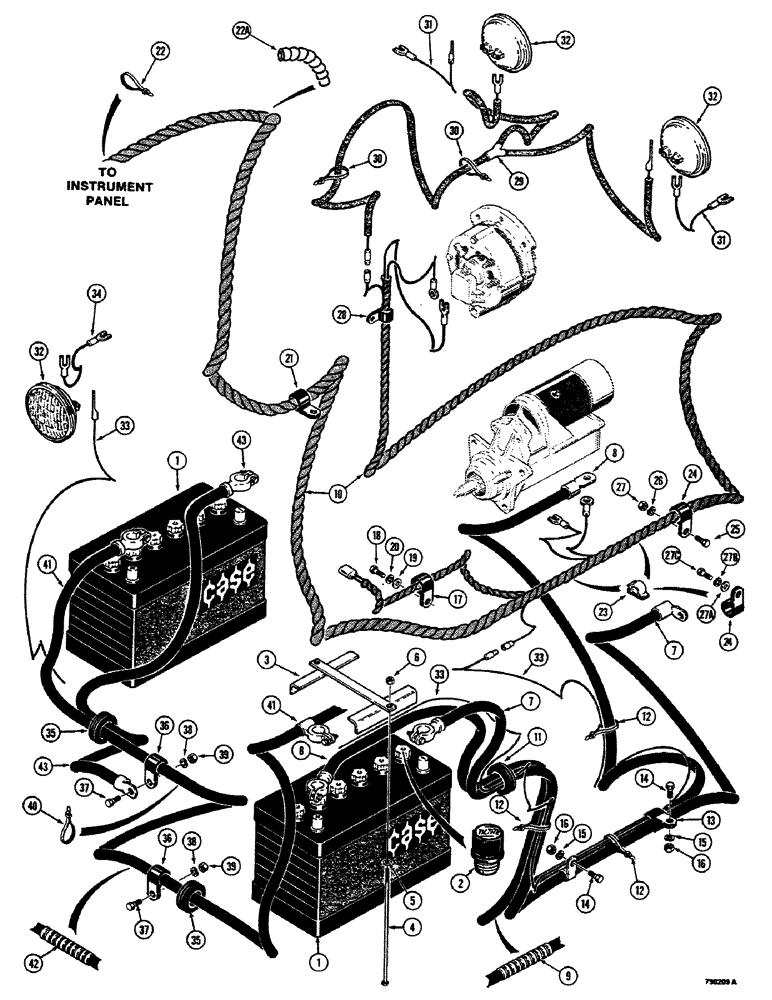

Запчасти Case 350B (068) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, low maintenance, service replacement, dry

1-2шт.

2

A60553

CAP

- nonspill, if used, not used with low maintenance battery

6-1шт.

3

R26374

BATTERY BOX

BRACKET - battery retaining

1-2шт.

4

17-4152

BOLT,Sq Hd, 1/4"-20 x 9 1/2", G2

- hex head, 1/4" - 20 NC x 9-1/2"

2-4шт.

5

195-18

WASHER,1/4"

- flat, 1/4"

2-4шт.

6

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2-4шт.

7

R41635

CABLE

- ground, negative, 57-1/2" (1360 mm) long, use with single battery

1шт.

8

R41634

CABLE

- positive, battery to starter solenoid, 77-1/2" (1968 mm) long, use with single battery only

1шт.

9

R42370

CABLE SHEATH

- Conduit - positive cable, 70" (1778 mm) long

1шт.

10

R41638

HARNESS

- main wiring

1шт.

11

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

D40471

CLAMP

- cables and harness to engine frame

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

51200191

CLAMP

- harness, at shuttle

1шт.

18

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

19

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

20

92-7

LOCK WASHER,7/16"

1шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- harness, at hydraulic tank

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

22a

R40777

CONDUIT

- main wiring harness behind instrument panel, 8" (203 mm) long

1шт.

23

F43611

CLIP

- adhesive-backed, wiring harness at engine, no longer used, replace with ref. 24 clamp and appropriate hardware

1-2шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- P-style, if located on engine frame uses 5/16" diameter hardware, if located on side of engine uses 1/4" diameter hardware

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

if used 5/16"

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

27a

195-18

WASHER,1/4"

- flat, , if used 1/4"

1шт.

27b

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

27c

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

If used Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

28

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness, behind alternator, uses engine hardware

1шт.

29

R29239

HARNESS

- head lamps

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

31

A11768

ELECTRICAL WIRE

WIRE - ground, head lamps

2шт.

32

REF

INSTRUCTION

LAMP - head lamps and rear flood lamp, see figure 72

3шт.

33

R41709

WIRE - rear flood lamp

1шт.

34

A11768

ELECTRICAL WIRE

WIRE - ground, rear flood lamp

1шт.

35

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

36

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- rear conduit and accessory wires

2шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, used with second battery option only

3шт.

41

R43768

CABLE

- positive, battery to starter solenoid, 77-1/2" (1968 mm) long, used with second battery option only

1шт.

42

R40779

CONDUIT - positive cable, 45" (1143 mm) long, used with second battery option only

1шт.

43

R40378

CABLE

- ground, negative, 20" (508 mm) long, used with second battery option only

1шт.
