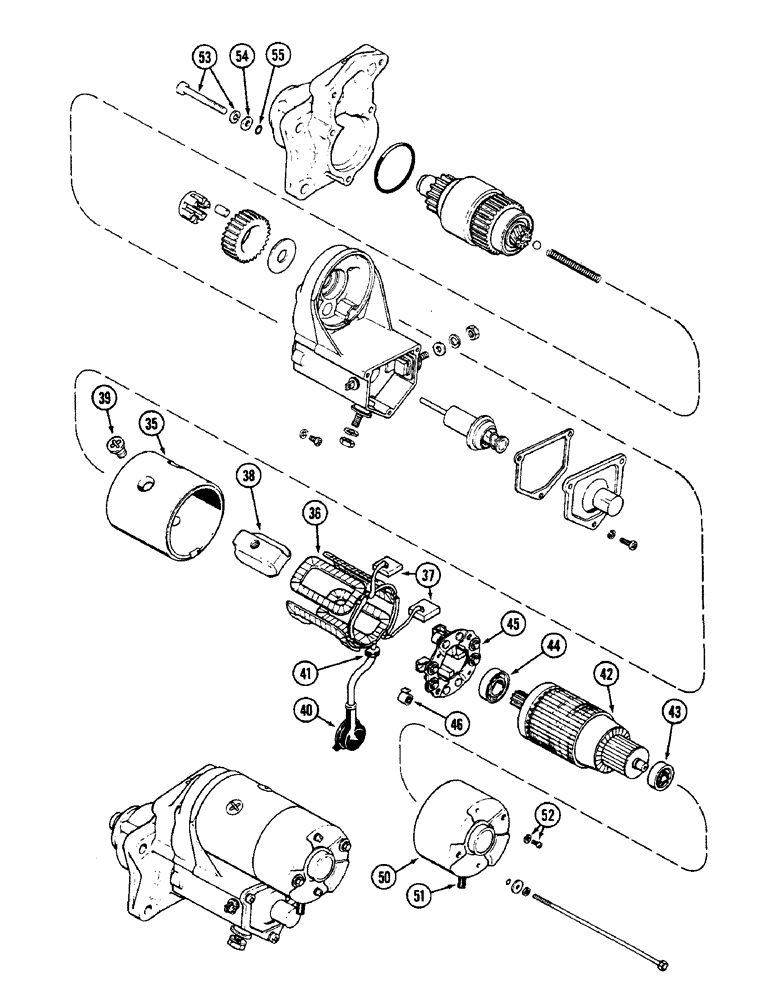

Запчасти Case 350B (064) - R39341 STARTER (06) - ELECTRICAL SYSTEMS

R39341

STARTING MOTOR

STARTER ASSEMBLY - , Includes: Ref. 35 - 55 and Ref. 2 - 31 on figure 62

1шт.

A47240

HOUSING

ASSEMBLY - with coil and brushes, Includes: Ref. 35 - 38 and 40

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

36

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

37

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

38

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

40

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

41

A47241

PLATE

- lock

1шт.

42

A47242

ARMATURE

ASSEMBLY - starter, Includes: Ref. 43 and 44

1шт.

43

A47248

BALL BEARING

BEARING - commutator end

1шт.

44

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end

1шт.

45

A47239

HOLDER

ASSEMBLY - brush (Includes 2 brushes), Includes: Ref. 46

1шт.

46

A47249

SPRING

- brush tension

1шт.

50

A47237

FRAME

- commutator end

1шт.

51

A47238

COVER

- end frame

1шт.

52

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY - brush, Serial Range: holder-cover

2шт.

A47230

BOLT

ASSEMBLY - commutator end cover to drive end housing, Includes: Ref. 53 - 55

3шт.

53

NSS

NOT SOLD SEPARAT

BOLT - with lock washer

1шт.

54

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6 x 14 x 2 mm)

1шт.

55

A47130

O-RING

- bolt seal

1шт.
