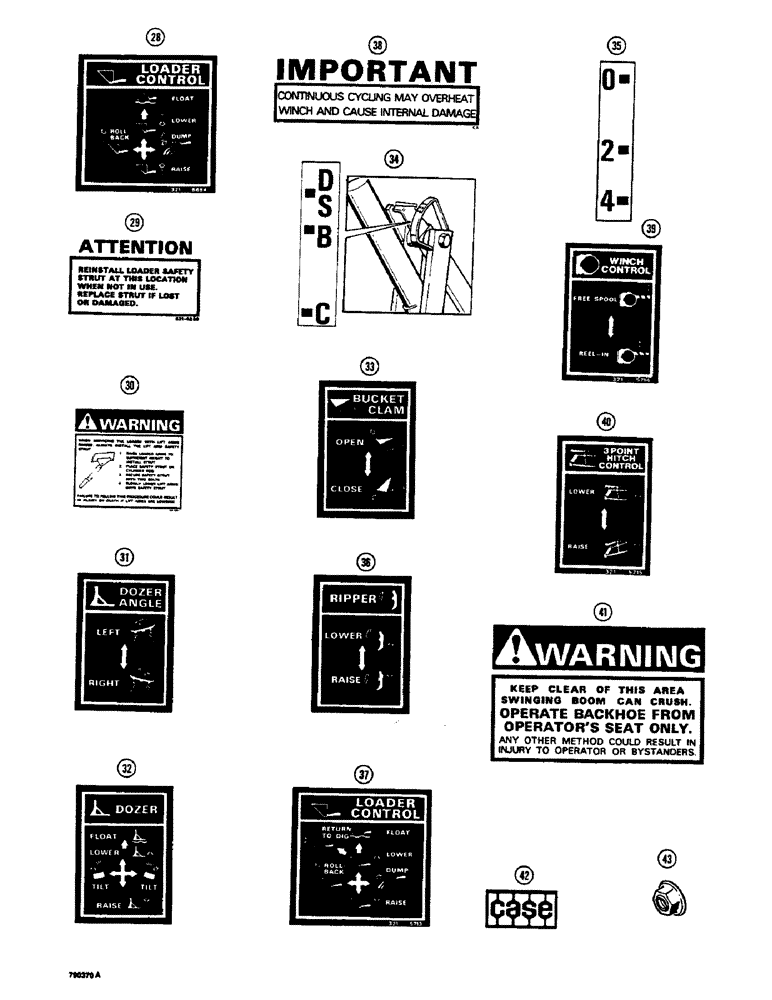

Запчасти Case 350B (310) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R43086

KIT

- decal, Includes: Ref. 28 - 40 and Ref. 1 - 27 on Figure 308

1шт.

28

321-5684

DECAL

- loader control pattern, without return-to-dig, if used

1шт.

29

321-4289

DECAL

- Attention, reinstall loader safety strut

1шт.

30

321-4227

DECAL

- Warning, when servicing the loader with lift arms raised

2шт.

31

321-4182

DECAL

- dozer angle control pattern

1шт.

32

321-4181

DECAL

- dozer control pattern

1шт.

33

321-4184

DECAL

- bucket clam control pattern

1шт.

34

321-1707

DECAL

- clam bucket position, on right-hand outer tilt lever at lift frame

1шт.

35

321-1708

DECAL

- clam bucket indicator, on clam bucket side

1шт.

36

321-4185

DECAL

- ripper control pattern

1шт.

37

321-5713

DECAL

- loader control pattern, with return-to-dig, if used

1шт.

38

321-3039

DECAL

- Important, continuous cycling may overheat winch

1шт.

39

321-5714

DECAL

- winch control pattern

1шт.

40

321-5715

DECAL

- three point hitch control pattern

1шт.

41

321-4481

DECAL

- Warning, keep clear of this area, used on models with a backhoe only

1шт.

42

321-4739

EMBLEM

- Case, metal, on grille

1шт.

43

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4", used with ref. 42

2шт.
