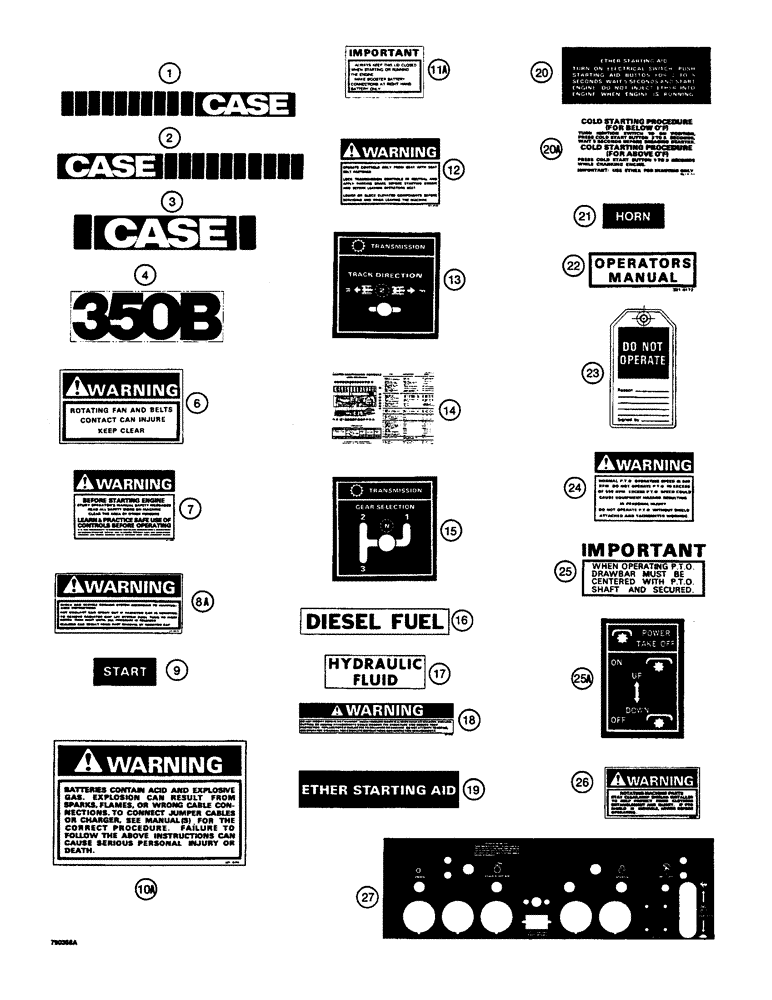

Запчасти Case 350B (308) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R43086

KIT

- decal, Includes: Ref. 1 - 27 and Ref. 28 - 40 on Figure 310

1шт.

1

321-5300

DECAL

- Case, with treads, right-hand

1шт.

2

321-5066

DECAL

- Case, with treads, left-hand

1шт.

3

321-5301

DECAL

- Case, with treads, back of seat

1шт.

4

321-5278

DECAL

- 350B, sides of seat frame

2шт.

5

REF

INSTRUCTION

DECAL - Engine Data, see figure 28, not shown

1шт.

6

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

7

321-3705

DECAL

- Warning, before starting engine

1шт.

8

321-3708

DECAL

- Warning, hot coolant can spray out, not shown, no longer used, replace with ref. 8A

1шт.

8a

321-6672

DECAL

- Warning, check and service cooling system

1шт.

9

321-3401

DECAL

- Start (Either injection), if used, may be part of instrument panel decal, ref. 27

1шт.

10

321-4190

DECAL

- Warning, battery explosion and/or damage, not shown, no longer used, replace with ref. 10A

1шт.

10a

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

2-3шт.

11

321-2996

DECAL

- Poison/Danger, battery acid causes severe burns, not shown, no longer used, replace with ref. 10A

1-2шт.

11a

321-4667

DECAL

- Important, always keep this lid closed (Over left-hand battery), if used

1шт.

12

321-4188

DECAL

- Warning, operate controls from seat

1шт.

13

321-4175

DECAL

- Transmission - track direction

1шт.

14

321-5019

DECAL

- Master Maintenance Schedule

1шт.

15

321-4174

DECAL

- Transmission - gear selection

1шт.

16

321-230

DECAL

- Diesel Fuel

1шт.

17

321-229

DECAL

- Hydraulic Fluid

1шт.

18

321-4192

DECAL

- Warning, rops modification

1шт.

19

321-2435

DECAL

- Ether Starting Aid, if used, may be part of instrument panel decal, ref. 27

1шт.

20

321-1841

DECAL

- Ether Starting Aid, no longer used, replace with ref. 20A, if used

1шт.

20a

321-2946

DECAL

- Cold Starting Procedure, if used, may be part of instrument panel decal, ref. 27

1шт.

21

321-3294

DECAL

- horn

1шт.

22

321-4172

DECAL

- operators manual

1шт.

23

321-4614

TAG

- do not operate

1шт.

24

321-3888

DECAL

- Warning, normal PTO operating speed (Tachometer)

1шт.

25

321-2547

DECAL

- Important, drawbar must be centered with PTO

1шт.

25a

321-5811

DECAL

- Power Take-Off, control

1шт.

26

321-6715

DECAL

- Warning, rotating machine parts, stay clear

1шт.

27

R47216

DECAL

- instrument panel, one-piece, if used

1шт.
