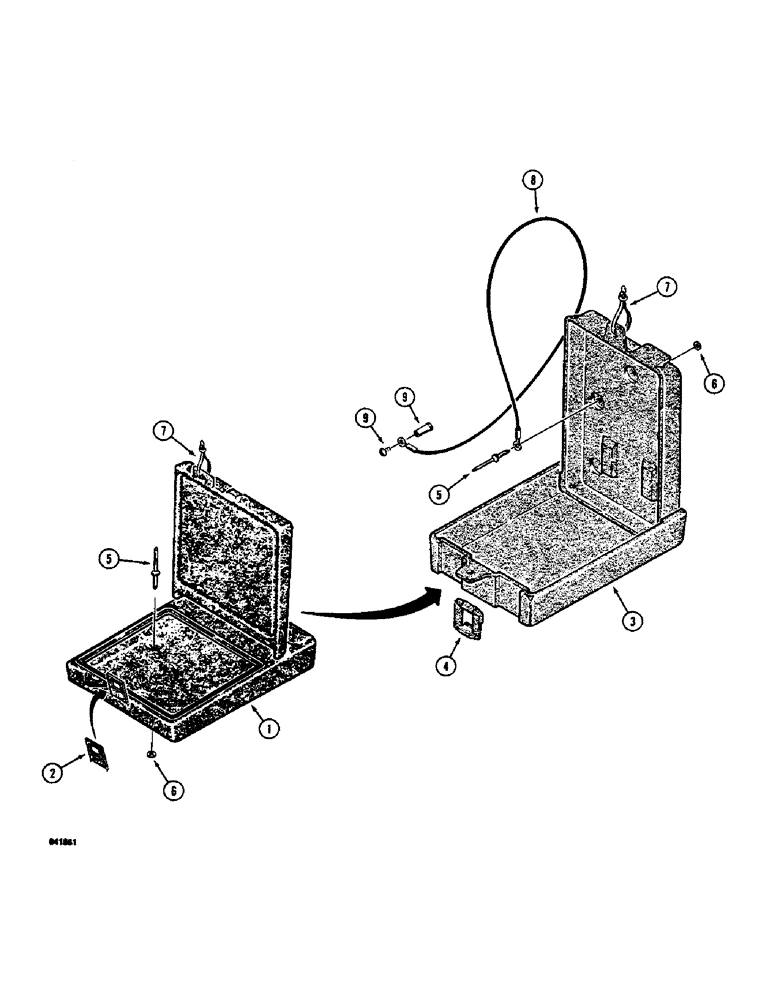

Запчасти Case 350B (306) - OPERATORS MANUAL BOX (05) - UPPERSTRUCTURE CHASSIS

1

R38893

CASE

MANUAL BOX - operators, attaches to top of cowl, if used, Includes: Ref. 2

1шт.

2

N7120

LATCH

- R38893 operators manual box

1шт.

3

R46464

CASE

MANUAL BOX - operators, attaches to inner side of rops canopy roof, if used, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

LATCH - R46464 manual box

2шт.

5

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

3шт.

6

195-511

WASHER,#10

- flat, 3/16", plated

3шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

R46465

CABLE,36mm L

CORD - manual retaining, R46464 box only

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - screw-type, operators manual, if used, buy locally

1шт.
