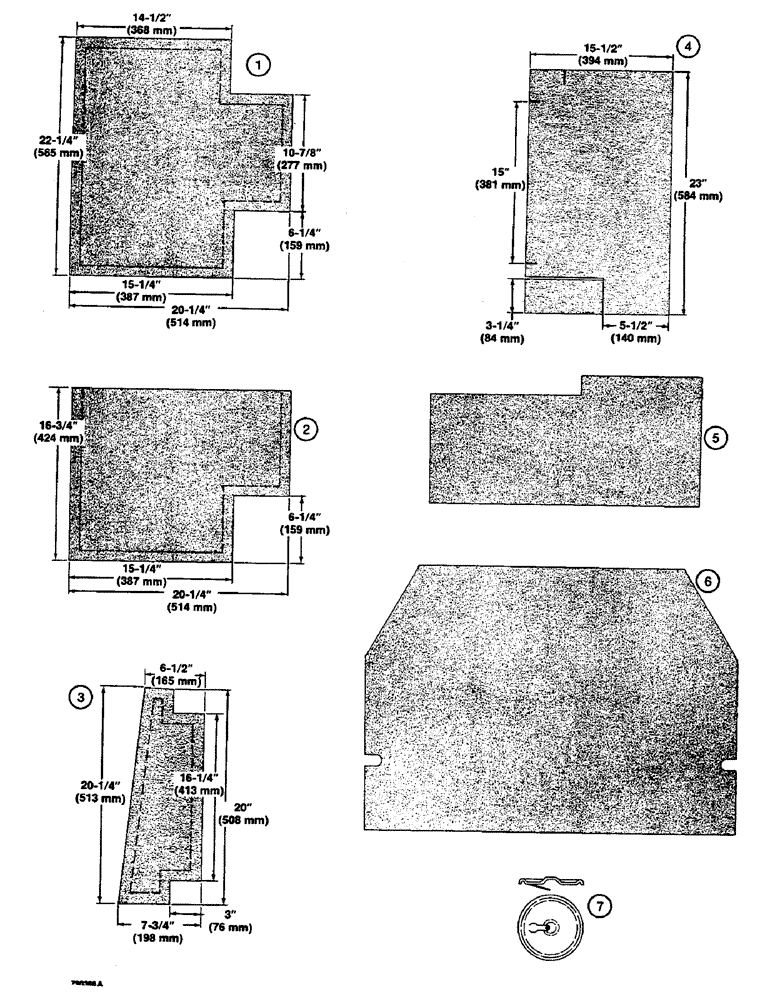

Запчасти Case 350B (304) - NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

PAD - hood, upper, used on models with air cleaner mounted on right-hand side of hood, if used, cut from R30870

1шт.

2

REF

INSTRUCTION

PAD - hood, upper, used on models with air cleaner mounted to top of hood, if used, cut from R30870

1шт.

3

REF

INSTRUCTION

PAD - hood, left-hand side, cut from R30870

1шт.

4

REF

INSTRUCTION

PAD - front floor plate, cut from R30870

1шт.

5

R29888

PAD - vinyl coated, rops canopy roof, front

1шт.

6

R29652

PAD - vinyl coated, rops canopy roof, rear

1шт.

7

R37160

RETAINER

- hood pads

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
