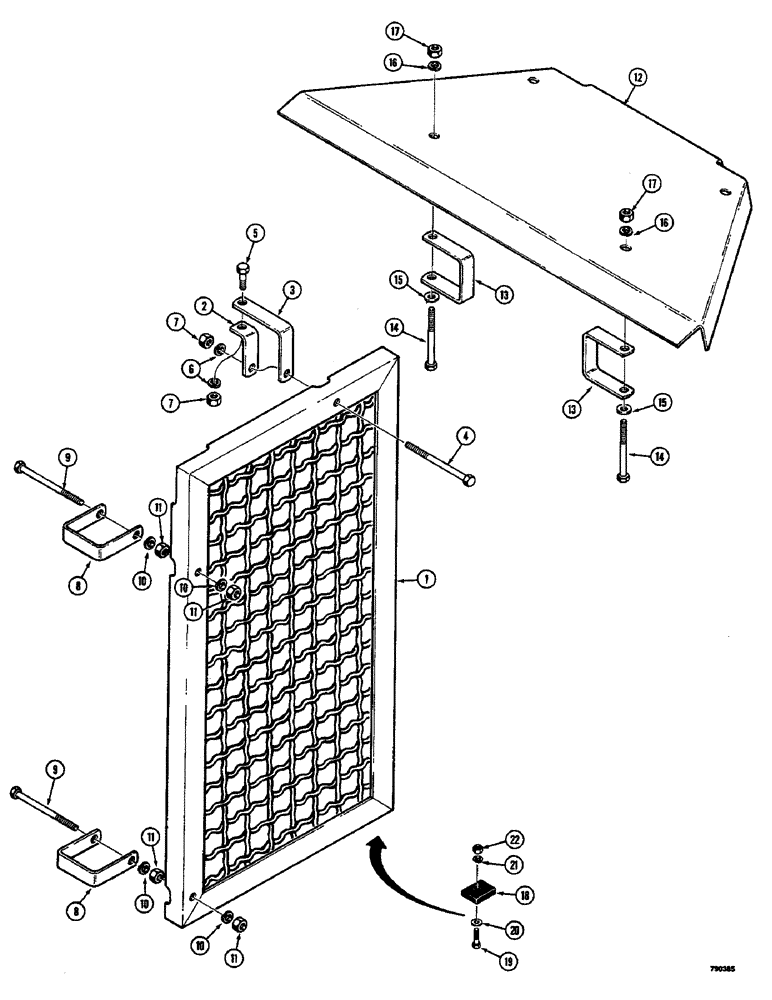

Запчасти Case 350B (302) - CANOPY SIDE SCREENS AND EXTENSION (05) - UPPERSTRUCTURE CHASSIS

1

R36813

SCREEN - side, left-hand, not shown

1шт.

1

R36814

SCREEN - side, right-hand

1шт.

2

F44108

SUPPORT - screen mounting, inside rops frame

2шт.

3

F43782

SUPPORT

- screen mounting, outside rops frame

2шт.

4

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

F43788

CLAMP

- screen to ROPS frame

4шт.

9

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

12

R36817

EXTENSION - canopy, dozer and drawbar models only

1шт.

13

F43788

CLAMP

- extension to rops frame

4шт.

14

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

4шт.

15

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

18

R37173

BUMPER - side screens

2шт.

19

13-208

CLUTCH

BOLT - hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

20

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
