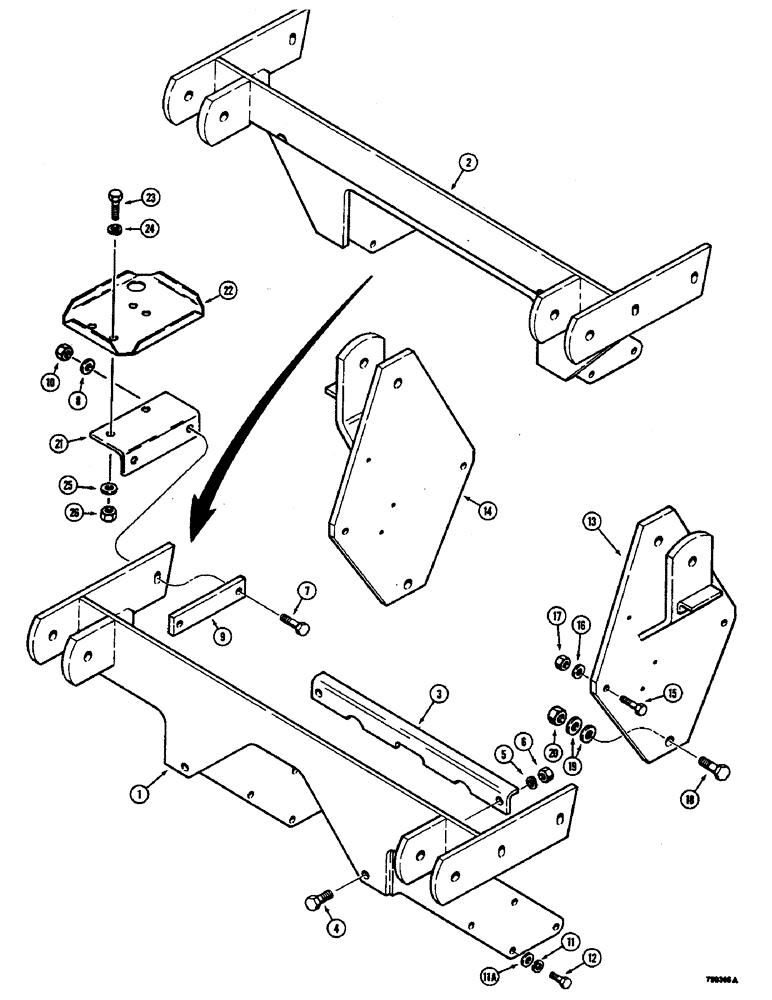

Запчасти Case 350B (300) - ROPS MOUNTING PARTS, AND BACKHOE STEP PLATE (05) - UPPERSTRUCTURE CHASSIS

1

F93274

FRAME - ROPS mounting, rear, used on all models without a three point hitch

1шт.

2

F93293

FRAME - ROPS mounting, rear, used on all models with a three point hitch

1шт.

3

F42349

BRACKET - ROPS frame support

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1010

NUT,5/8"-11, G5

2шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

8

R24718

WASHER

- flat, 1/2"

4шт.

9

F42338

SPACER - mounting, rear frame mounting

2шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

11

92-8

LOCK WASHER,1/2"

6шт.

11a

195-33

WASHER,1/2"

- flat, , used on models with a three point hitch only 1/2"

6шт.

12

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

6шт.

13

R42451

BRACKET - ROPS mounting, front, right-hand, dozer and drawbar models only

1шт.

14

R42450

BRACKET - ROPS mounting, front, left-hand, dozer and drawbar models only

1шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

16

R24718

WASHER

- flat, 1/2"

4шт.

17

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

18

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8"

4шт.

20

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC

2шт.

21

R46862

BRACKET - step mounting, left-hand side of rops mounting frame, parts used on models with a backhoe

1шт.

22

R46429

STEP

PLATE - step, parts used on models with a backhoe

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Parts used on models with a backhoe Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

parts used on models with a backhoes 3/8"

2шт.

25

195-104

WASHER,3/8"

- flat, , parts used on models with a backhoe 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, parts used on models with a backhoe

2шт.
