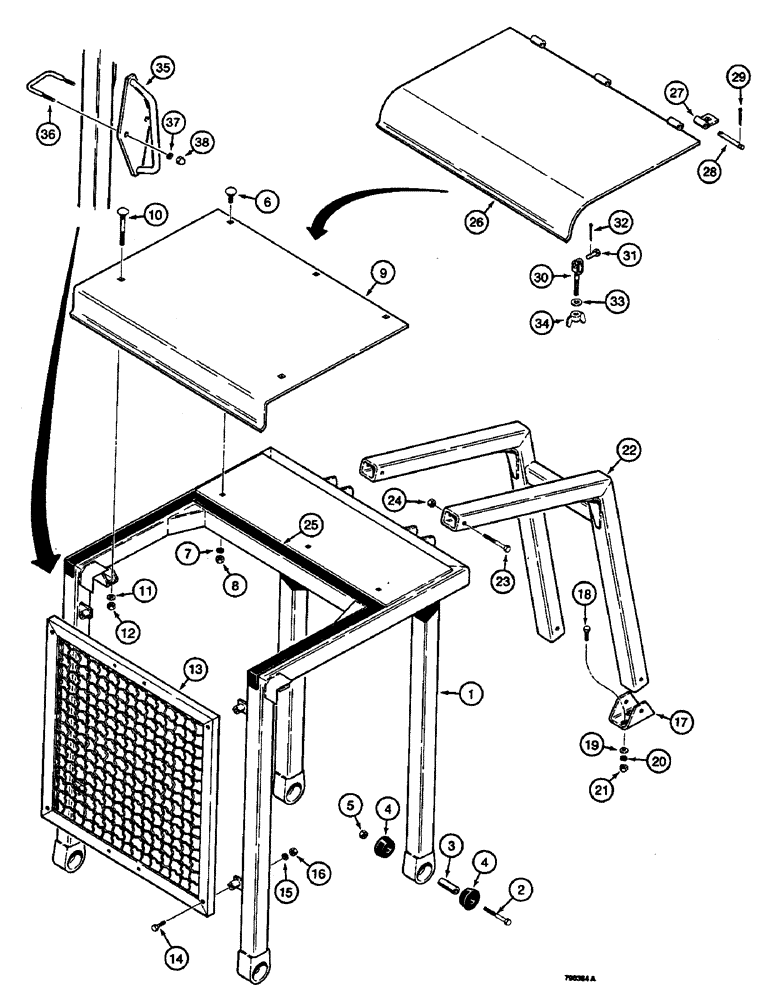

Запчасти Case 350B (298) - ROLLOVER PROTECTIVE STRUCTURE CANOPY (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, see figure 2 for ordering, loader model shown

1шт.

2

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

- hex head, 3/4" - 10 NC x 5", grade 8

4шт.

3

F42339

BUSHING

- mount

4шт.

4

F42340

INSERT

INSULATOR - rubber, vibration dampener

8шт.

5

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

6

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

3шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

9

F42826

ROOF - bolt-on, used on models without a backhoe

1шт.

10

111-525

CARRIAGE BOLT,Short NK, 1/2"-13 x 6", G2

- 1/2" - 13 NC x 6", plated

2шт.

11

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

13

F93290

SCREEN - rear, used on models without a backhoe

1шт.

14

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

17

R41623

BRACKET - brush guard mounting, front

2шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

19

195-34

WASHER - flat, 1/2"

6шт.

20

92-8

LOCK WASHER,1/2"

6шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

22

R41624

GUARD - brush sweep

1шт.

23

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- hex head, 5/8" - 11 NC x 4-1/2"

4шт.

24

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

25

REF

INSTRUCTION

SEAL - foam, 90" (228.6 CM) long, cut from F42419 bulk, see below

1шт.

26

F93523

ROOF - hinged, backhoe models, parts used on models with a backhoe

1шт.

27

F93322

HINGE

- roof, parts used on models with a backhoe

3шт.

28

F42316

EYEBOLT

PIN - hinge, parts used on models with a backhoe

3шт.

29

132-46

COTTER PIN,1/8" x 3/4"

PIN, Split (Cotter), , Parts used on models with a backhoe 1/8" x 3/4"

6шт.

30

F50092

ROD - roof retaining, parts used on models with a backhoe

2шт.

31

141-54

CLEVIS PIN,3/8" x 1 1/16"

parts used on models with a backhoe 3/8" x 1 1/16"

2шт.

32

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4", parts used on models with a backhoe

2шт.

33

195-104

WASHER,3/8"

- flat, , plated, parts used on models with a backhoe 3/8"

2шт.

34

129-410

WING NUT,3/8"-16

- 3/8" - 16 NC, parts used on models with a backhoe

2шт.

35

R43969

HANDLE

- grab, parts used on models with a backhoe

2шт.

36

R43970

BOLT

U-BOLT - 3/8" threads, parts used on models with a backhoe

2шт.

37

92-6

LOCK WASHER,3/8"

parts used on models with a backhoes 3/8"

4шт.

38

129-520

NUT,Crown, 3/8"-16

DOME NUT - 3/8" - 16 NC, parts used on models with a backhoe

4шт.

F42419

FOAM

SEAL - foam, bulk, 50 ft. (1524 CM) long, parts used on models with a backhoe

1шт.
