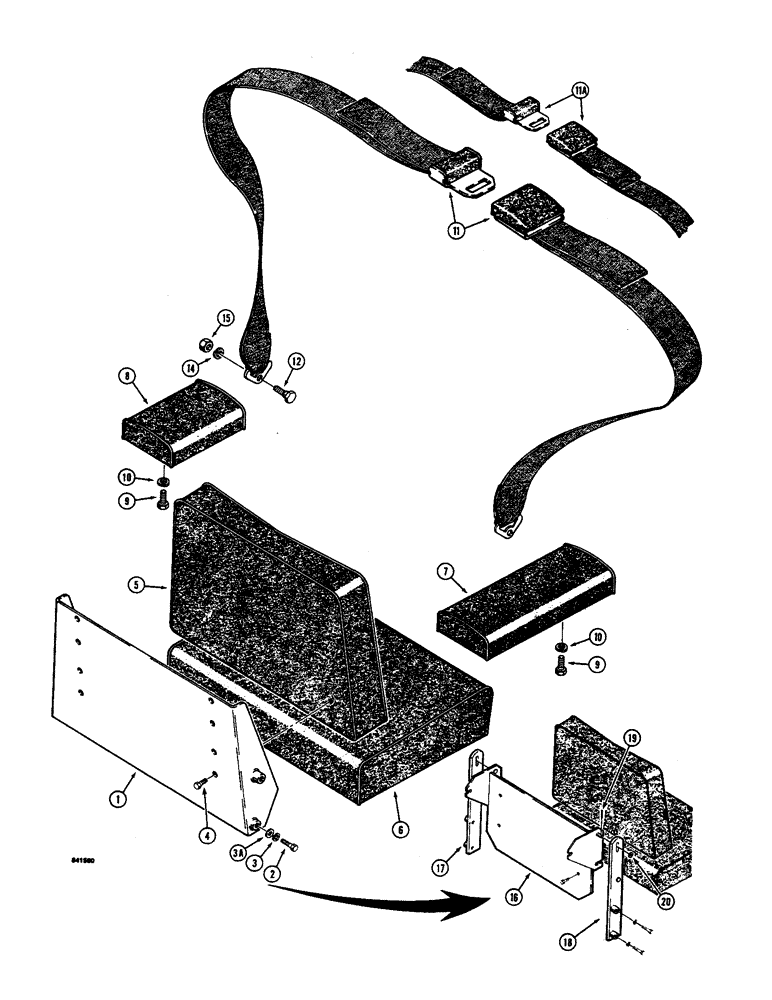

Запчасти Case 350B (296) - SEAT AND SEAT BELT (05) - UPPERSTRUCTURE CHASSIS

1

D33263

SUPPORT - back, seat, used on models without backhoe

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

3a

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

D44169

CUSHION

BACKREST - seat

1шт.

6

D44386

CUSHION ASSY.

CUSHION - seat

1шт.

7

D27693

ARMREST

- right-hand

1шт.

8

D48489

ARM

REST - left-hand

1шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide

1шт.

11a

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

12

F42236

STEP BOLT

SHOULDER BELT - special, 7/16" - 20 NF x 1-1/4"

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated, used on left-hand side if seat frame does not have a weld nut

1шт.

16

R46774

CYLINDER ASSY.

SUPPORT - back, seat, models with a backhoe, used on models with A 26D, for the backhoe seat used on models with 26C backhoe, see the 26C backhoe parts catalog, form No. D1207

1шт.

17

R46771

BRACKET - backrest pivot, left-hand, used on models with A 26D backhoe, for the backhoe seat used on models with 26C backhoe, see the 26C backhoe parts catalog, form No. D1207

1шт.

18

R46772

BRACKET - backrest pivot, right-hand, used on models with A 26D backhoe, for the backhoe seat used on models with 26C backhoe, see the 26C backhoe parts catalog, form No. D1207

1шт.

19

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4", used on models with A 26D backhoe, for the backhoe seat used on models with 26C backhoe, see the 26C backhoe parts catalog, form No. D1207

2шт.

20

195-104

WASHER,3/8"

- flat, , used on models with A 26D backhoe, for the backhoe seat used on models with 26C backhoe, see the 26C backhoe parts catalog, form No. D1207 3/8"

2шт.
