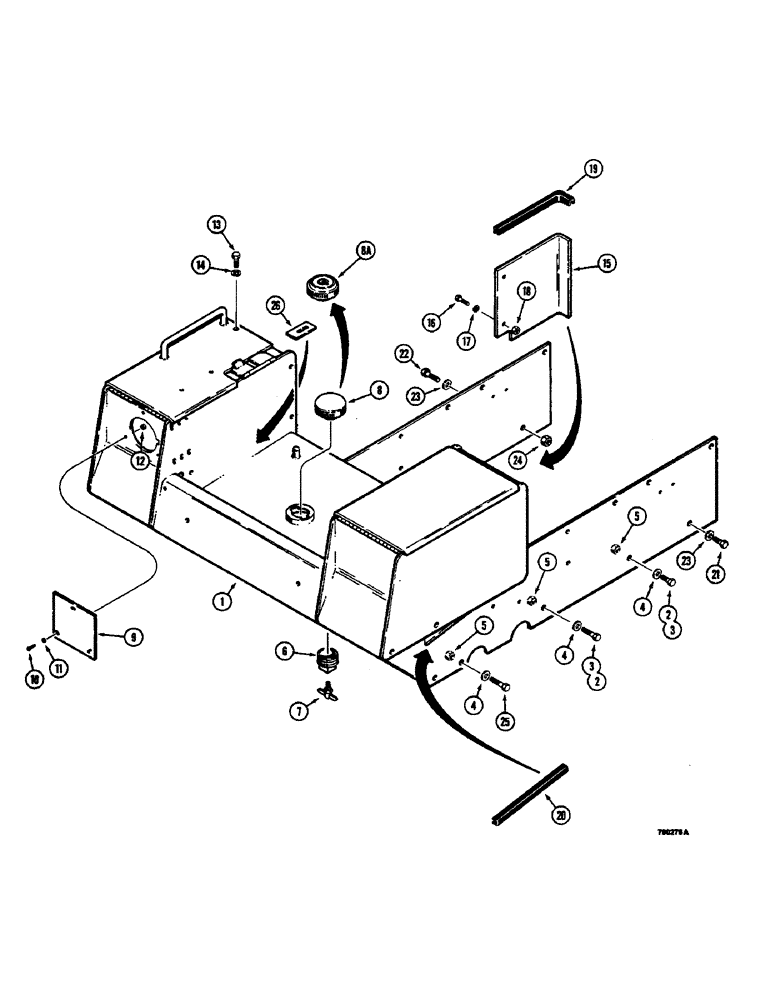

Запчасти Case 350B (292) - SEAT AND TANK FRAME AND FUEL CAP (05) - UPPERSTRUCTURE CHASSIS

1

R42360

FRAME - seat and tank, includes fuel tank and battery case

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on loader models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", used on dozer and drawbar models only

4шт.

4

R24718

WASHER

- FLAT, 1/2"

8шт.

5

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self locking, 1/2" - 13 NC

8шт.

6

R27578

PLUG

- fuel tank, bottom

1шт.

7

217-81

VALVE

- fuel tank drain

1шт.

8

CASE10731

FILLER CAP

CAP - fuel tank, non-locking, if used

1шт.

8a

R43452

CAP

- fuel tank, locking, includes keys, if used

1шт.

9

R40434

COVER - rear lamp, if used

1шт.

10

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 -24 NC x 1/2", plated

3шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

3шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

D37821

SHIELD - heat, control valve

1шт.

16

173-250

MACHINE SCREW - round head slotted, 3/8" - 16 NC x 1", plated

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

REF

INSTRUCTION

TRIM - heat shield, 7" (178 mm) long, cut from D52812, see below

1шт.

20

REF

INSTRUCTION

TRIM - rear frame, 5" (127 mm) long, if used, cut from D52812, see below

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Front mounting hole, RH side only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Front mounting hole, LH side only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

23

R24718

WASHER

- hardened, 1/2"

2шт.

24

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, front mounting hole, left-hand side only

1шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

26

R44355

COVER

- frame, shuttle control lever

1шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
