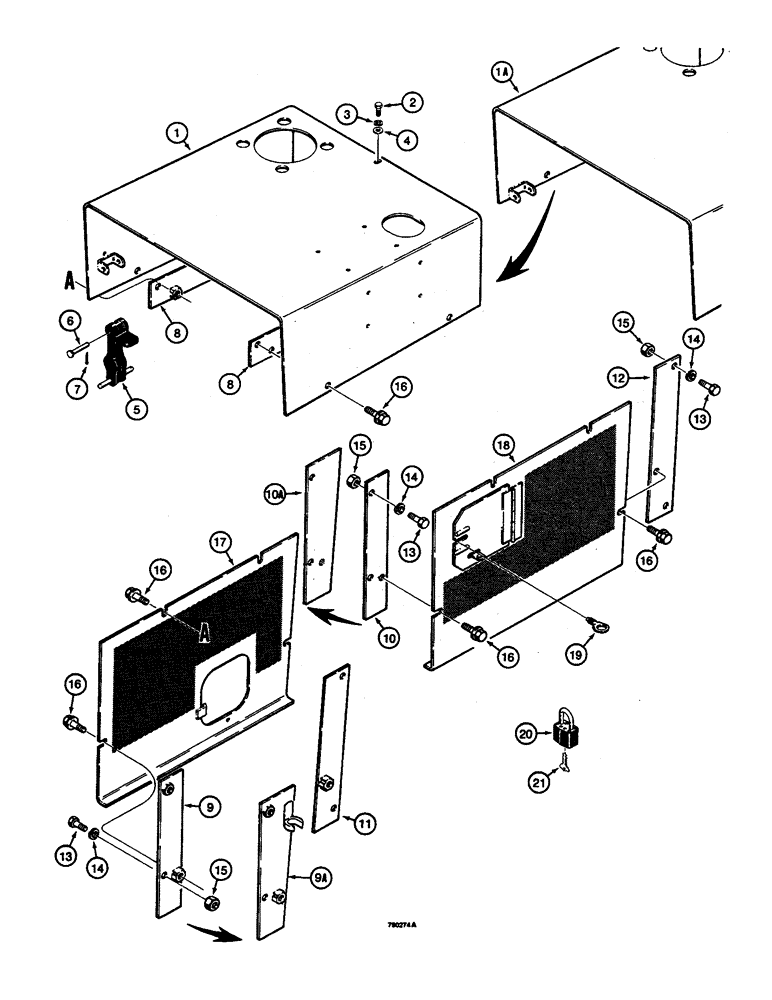

Запчасти Case 350B (288) - HOOD AND SIDE SHIELDS (05) - UPPERSTRUCTURE CHASSIS

1

R43736

HOOD

- rear retaining strap attaches to cowl, no longer available, order R47641 hood (Ref. 1A), R47632 plate (Ref. 9A), R47633 plate (Ref. 10A) and instruction sheet 8-41460

1шт.

1

R42648

HOOD - rear retaining strap attaches to cowl, air cleaner mounting holes on right-hand side and includes studs for noise reduction pad mounting, if used

1шт.

1a

R47641

HOOD

- rear retaining strap attaches to side shield mounting plates (Refs. 9A and 10A)

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8"

1шт.

5

L47157

HOOK

STRAP - rubber, hood retaining

4шт.

6

T11232

PIN

- strap mounting

4шт.

7

132-44

COTTER PIN,1/8" x 1/2"

PIN, Split (Cotter), 1/8" x 1/2"

4шт.

8

R41902

PLATE - side shield mounting, top

2шт.

9

R41904

PLATE ASSY.

PLATE - side shield mounting, left-hand rear, without bracket for hood retaining strap, no longer available, order R47632 plate (Ref. 9A - modify as needed)

1шт.

9a

R47632

PLATE

- side shield mounting, left-hand rear, with bracket for hood retaining strap, if used

1шт.

10

R41905

PLATE ASSY.

PLATE - side shield mounting, right-hand rear, without bracket for hood retaining strap, no longer available, order R47633 plate (Ref. 10A - modify as needed)

1шт.

10a

R47633

PLATE

- side shield mounting, right-hand rear, with bracket for hood retaining strap

1шт.

11

R42851

PLATE - side shield mounting, left-hand front

1шт.

12

R42852

PLATE - side shield mounting, right-hand front

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

14

92-8

LOCK WASHER,1/2"

12шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

11шт.

16

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Side shield mounting, replaces regular hex head bolt, lock washer, flat washer and nut combinations used in production on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

10шт.

17

R41891

SHIELD

- side, left-hand

1шт.

18

R43003

SHIELD - side, right-hand

1шт.

19

R42674

LOCKING DEVICE

FASTENER - side shield doors

2шт.

20

D93753

PADLOCK

- side shield access doors, Includes: Ref. 21

2шт.

21

R29555

KEY

- for Master padlock only

2шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
