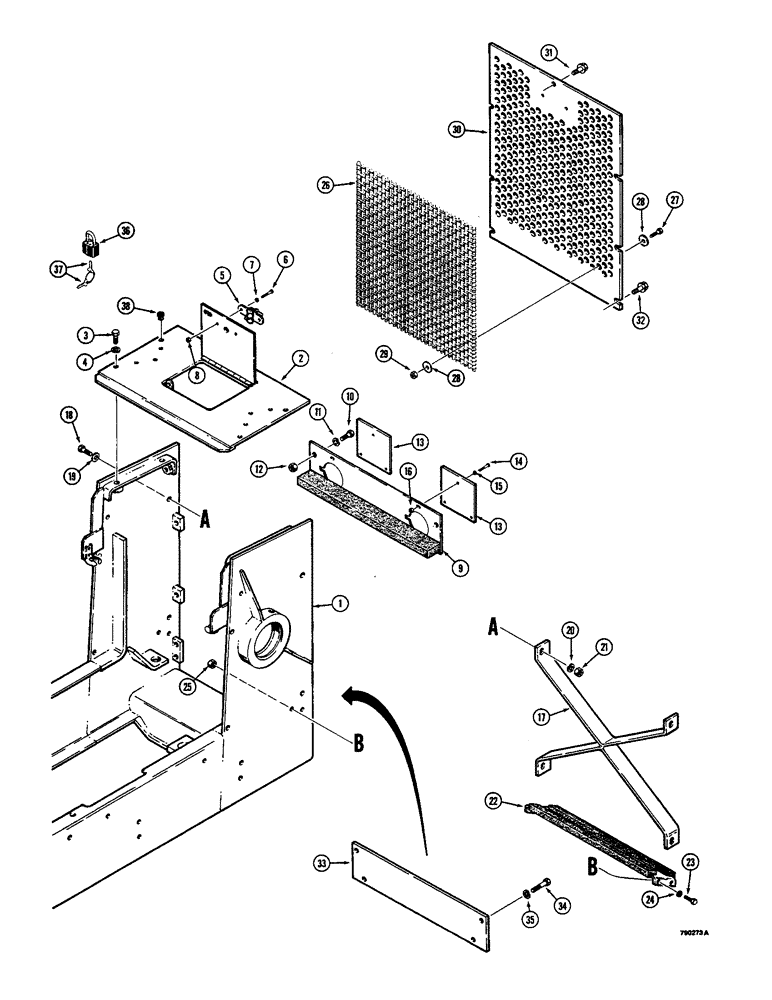

Запчасти Case 350B (286) - RADIATOR COVER AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

FRAME - engine, see figure 280 or 282, dozer frame shown here

1шт.

2

R41874

PLATE - top, radiator

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

L102515

LATCH

ASSEMBLY - radiator access door

1шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/2", plated

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

9

R41781

PLATE - lamp mounting, includes pad

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

13

R40434

PLATE - cover, used on models without lamps

2шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/2", plated

6шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

16

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

6шт.

17

R41868

BRACE - support

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

19

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

22

R41784

PLATE - support, includes pad

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

R41826

SCREEN - brush guard

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

10шт.

28

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8"

20шт.

29

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

10шт.

30

R41824

GRILLE - standard, 3/16" (4.76 mm) thick

1шт.

30

R41825

GRILLE - heavy duty, 1/4" (6.35 mm) thick

1шт.

31

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , Replaces regular hex head bolt, lock washer and flat washer used in production on some models Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

32

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces regular hex head bolt, lock washer and flat washer used in production on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

6шт.

33

R41843

PLATE

- below grille, used on drawbar or loader models only

1шт.

For hydraulic guard used on dozer models see figure 168.

1шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

35

92-8

LOCK WASHER,1/2"

4шт.

36

D93753

PADLOCK

- radiator access door, includes keys, Includes: Ref. 37

1шт.

37

R29555

KEY

- for Master padlock only

2шт.

37

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

38

R38805

PLUG

- rubber, used on models without rops canopy, if used

6шт.
